Product Summary

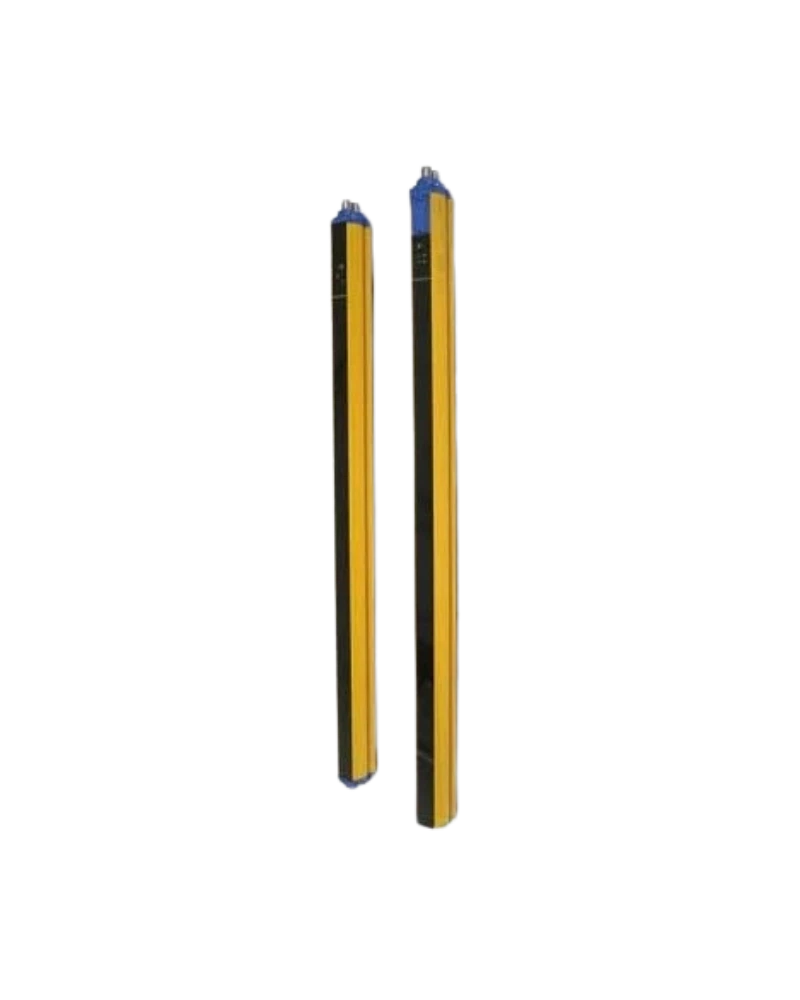

The SG2-T3-080-PP-W - 957851150 - Safety Light Curtain is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

Technical Specifications

The Datasensing SG2-T:080-PP-W - 957851150 Safety Light Curtain is engineered for high-precision industrial safety applications. It features a 400mm resolution for accurate body access detection, with 2x PNP-NO (OSSD) safety outputs and an 15ms response time to ensure rapid shutdown during potential hazards.

Key Features

• Operating Voltage: 24 Vdc ±20% (supports standard industrial power supplies)
• Cable Length: ≤ 50m for power and output connections (M12-4 poles + M12-5 poles emitter; M12-8 poles + M12-5 poles receiver)
• Environmental Tolerance: Storage temperature range of -25°C to +70°C for reliable performance in harsh conditions

Physical Construction

Constructed from painted aluminum, PMMA, and PC Lexan 943A materials, this light curtain ensures durability and resistance to industrial environments. Dimensions: 35x41x964 mm (35x41,2x962 mm).

Performance

The documented configuration includes Resolution: 400mm; Response time: 15 ms; SG BODY COMPACT MUTING safety multiple beam type 2 3 beams h: 800 mm edm man/auto muting T arms; Nominal sensing distance: 0,5 … 3 m; Emission: Infrared LED (880 nm wavelength).

Electrical and Interface

The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 50m; Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 2,2W (no load); Power Consumption - Emitter: ≤ 0,9W.

Mechanical and Environmental

The documented configuration includes Dimensions: 35x41x962; Material: Painted aluminum / PMMA / PC Lexan 943A; Storage temperature: -25…+ 70°C; Dimensions: 35x41,2x964 mm; Operating Temperature: 0…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; Standard "L" Mounting Brackets: 4 pcs kit.

Mechanical and Environmental – Additional Details

The documented configuration includes controlled height: 800 mm; Humidity: 15 … 95 % (no condensation).

Configuration and Functional

The documented configuration includes Available functions: Manual/Automatic Restart, EDM, L/T Muting, Override; Functions: Body protection 3 beams muting; Long operating distance: up to 50 m; Function Principle: Emitter + Receiver; Application: Function Principle.

General

The documented configuration includes Connections: M12-4 poles + M12-5 poles (emitter) M12-8 poles + M12-5 poles (receiver); Effective Aperture Angle: ≤ ±5°; Type: Type 2 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Equivalent Resistive Load: ≥ 56Ω; Capacitive Load: ≤ 65nF; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29).
