The Safety Light Curtains - SG2 Extended - 957801430 (SG2-30-150-OO-E-C) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

Datasensing Safety Light Curt: SG2 Extended - 957801430 (SG2-30-150-OO-E-C)

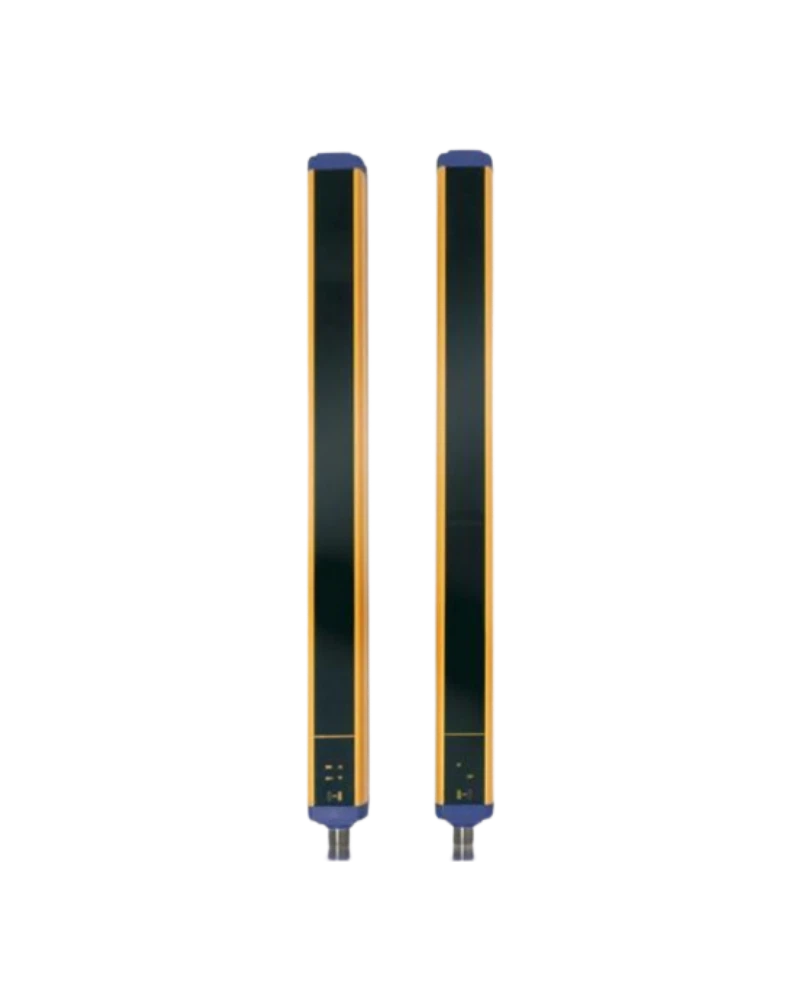

The Datasensing Safety Light Curtain SG2 Extended model 957801430 (SG2-30-150-OO-E-C) is a high-precision safety device designed for industrial automation. It features a 30mm resolution for accurate object detection and provides 2 x PNP-NO OSSD safety outputs with EDM capability. The system operates with a 21ms response time, ensuring rapid safety interlocks in critical applications.

• Environmental Performance: Operating temperature: -10°C to +55°C, storage temperature: -25°C to +70°C
• Connectivity: M12-4 poles (emitter), M12-8 poles (receiver) for robust industrial connections

Engineers and technicians select this model for its ease of installation and alignment, ensuring reliable safety interlocks in high-speed production environments where precise detection is critical.

Performance

The documented configuration includes Resolution: 30mm; Response time: 21 ms; Manual/Automatic Restart, EDM, Range Reduction (on TX): Hand protection res. 30 mm; Nominal sensing distance: 0,2 … 19 m; Emission: Infrared LED (850 nm wavelength).

Electrical and Interface

The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 50m; Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 3W (no load); Power Consumption - Emitter: ≤ 2W.

Mechanical and Environmental

The documented configuration includes Dimensions: 33x37x1583; Storage temperature: -25…+ 70°C; Dimensions: 32,3x36,9x1583,2 mm; Operating Temperature: -10…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; Operating Temperature: 10…+55°C; controlled height: 1500 mm.

Mechanical and Environmental – Additional Details

The documented configuration includes Humidity: 15 … 95 % (no condensation); Material: Painted aluminum / PMMA / PC MAKROLON; Material: Connections.

Configuration and Functional

The documented configuration includes SG2 EXTENDED safety light curtain type 2 res = 30 mm h: 1500 mm edm coded man/auto; Available functions: Manual/Automatic Restart, EDM, Range Reduction (on TX); Functions: Hand protection res. 30 mm; Function Principle: Emitter + Receiver; Application: Function Principle.

General

The documented configuration includes Connections: M12-4 poles (emitter) M12-8 poles (receiver); Effective Aperture Angle: ≤ ±5°; Type: Type 2 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Capacitive Load: ≥ 2,2µF; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29).
