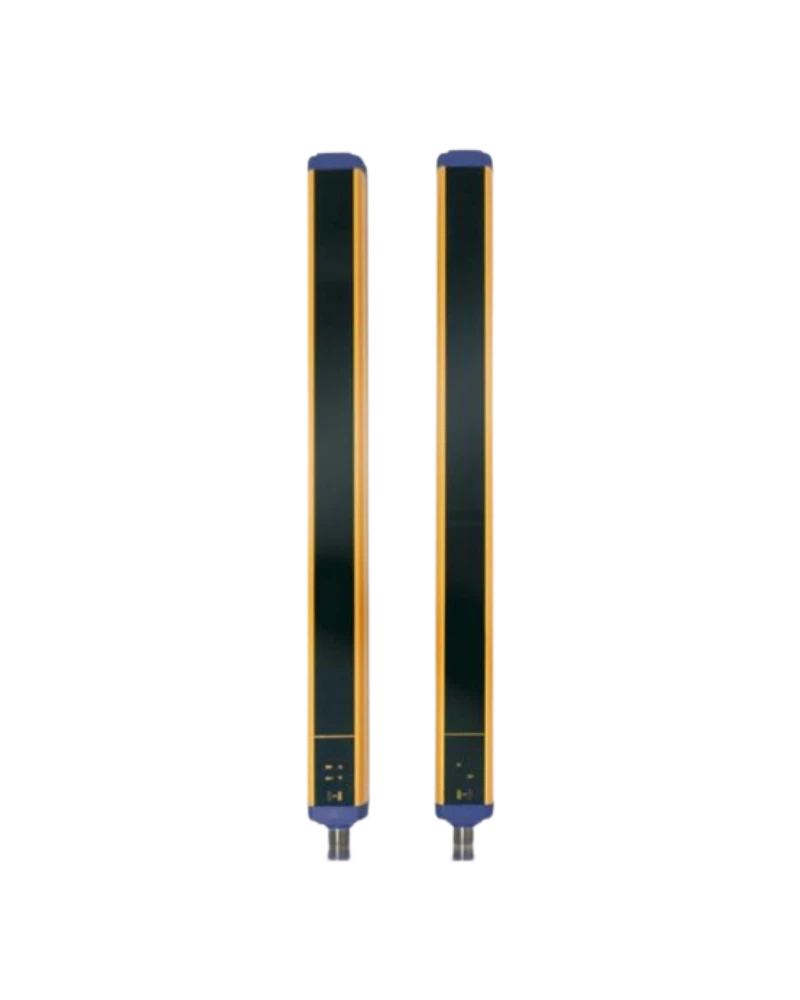

The Safety Light Curtains - SG2 Base - 957801040 (SG2-30-075-OO-X) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
Engineers and technicians select this model for its robust performance in industrial environments where precise object detection is critical. The SG2-30-075-OO-X base unit ensures reliable safety interlocks with minimal installation complexity.
The documented configuration includes Resolution: 30mm; Response time: 13,8 ms; Nominal sensing distance: 0,2 … 19 m; Emission: Infrared LED (850 nm wavelength).
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output); Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 50m; Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 3W (no load); Power Consumption - Emitter: ≤ 2W.
The documented configuration includes Dimensions: 33x37x833; Storage temperature: -25…+ 70°C; Dimensions: 32,3x36,9x833,2 mm; Operating Temperature: -10…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; Operating Temperature: 10…+55°C; Standard "L" Mounting Brackets: 4 pcs kit.
The documented configuration includes controlled height: 750 mm; Humidity: 15 … 95 % (no condensation); Material: Painted aluminum / PMMA / PC MAKROLON; Material: Connections.
The documented configuration includes SG2 BASE safety light curtain type 2 res = 30 mm h: 750 mm autorestart; Functions: Hand protection res. 30 mm; Function Principle: Emitter + Receiver; Available functions: Automatic Restart; Application: Function Principle.
The documented configuration includes Connections: M12-4 poles (emitter) M12-5 poles (receiver); Effective Aperture Angle: ≤ ±5°; Type: Type 2 safety light curtain (A); Interference to external light: According to IEC 61496-2; Capacitive Load: ≥ 2,2µF; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29).
| Feature | Specification |
|---|---|
| Resolution | 30mm |
| Output type | 2 x PNP-NO (OSSD safety output) |
| Response time | 13,8 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 50m |
| Dimensions | 33x37x833 |
| Connections | M12-4 poles (emitter) M12-5 poles (receiver) |
| Storage temperature | -25…+ 70°C |
| Dimensions | 32,3x36,9x833,2 mm |
| Operating Temperature | -10…+55°C |
| Mechanical Protection | IP65 |
| Storage temperature | 25…+ 70°C |
| Operating Temperature | 10…+55°C |
| SG2 BASE safety light curtain type 2 res = 30 mm h | 750 mm autorestart |
| Standard "L" Mounting Brackets | 4 pcs kit |
| Nominal sensing distance | 0,2 … 19 m |
| controlled height | 750 mm |
| Effective Aperture Angle | ≤ ±5° |
| Functions | Hand protection res. 30 mm |
| Type | Type 2 safety light curtain (A) |
| Load current | ≤ 500mA each output |
| Emission | Infrared LED (850 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 3W (no load) |
| Power Consumption - Emitter | ≤ 2W |
| Capacitive Load | ≥ 2,2µF |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Humidity | 15 … 95 % (no condensation) |
| Material | Painted aluminum / PMMA / PC MAKROLON |
| Material | Connections |
| Function Principle | Emitter + Receiver |
| Available functions | Automatic Restart |
| Application | Function Principle |
