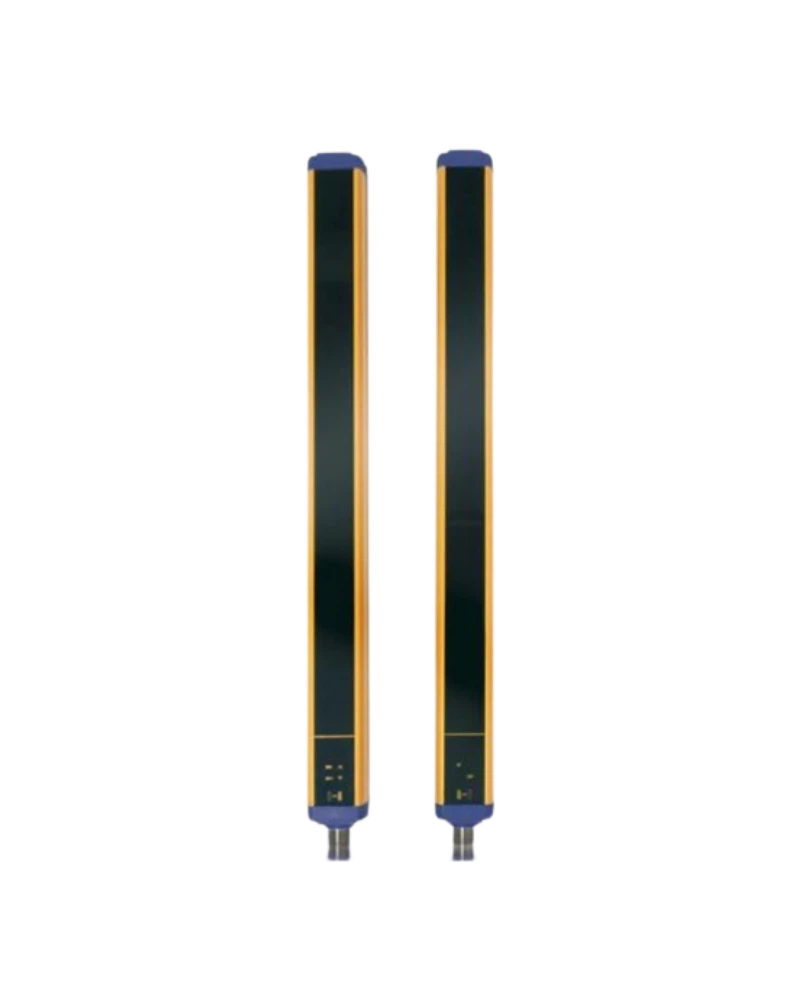

The Safety Light Curtains - SG2 Extended - 957801380 (SG2-30-075-OO-E-C) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
Engineers and technicians select this safety light curtain for its robust performance in demanding industrial environments. The extended cable length and precise resolution ensure reliable safety interlocks across a wide range of applications.
The documented configuration includes Resolution: 30mm; Response time: 13,8 ms; Manual/Automatic Restart, EDM, Range Reduction (on TX): Hand protection res. 30 mm; Nominal sensing distance: 0,2 … 19 m; Emission: Infrared LED (850 nm wavelength).
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 50m; Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 3W (no load); Power Consumption - Emitter: ≤ 2W.
The documented configuration includes Dimensions: 33x37x833; Storage temperature: -25…+ 70°C; Dimensions: 32,3x36,9x833,2 mm; Operating Temperature: -10…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; Operating Temperature: 10…+55°C; controlled height: 750 mm.
The documented configuration includes Humidity: 15 … 95 % (no condensation); Material: Painted aluminum / PMMA / PC MAKROLON; Material: Connections.
The documented configuration includes SG2 EXTENDED safety light curtain type 2 res = 30 mm h: 750 mm edm coded man/auto; Available functions: Manual/Automatic Restart, EDM, Range Reduction (on TX); Functions: Hand protection res. 30 mm; Function Principle: Emitter + Receiver; Application: Function Principle.
The documented configuration includes Connections: M12-4 poles (emitter) M12-8 poles (receiver); Effective Aperture Angle: ≤ ±5°; Type: Type 2 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Capacitive Load: ≥ 2,2µF; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29).
| Feature | Specification |
|---|---|
| Resolution | 30mm |
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 13,8 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 50m |
| Dimensions | 33x37x833 |
| Connections | M12-4 poles (emitter) M12-8 poles (receiver) |
| Storage temperature | -25…+ 70°C |
| Dimensions | 32,3x36,9x833,2 mm |
| Operating Temperature | -10…+55°C |
| Mechanical Protection | IP65 |
| Manual/Automatic Restart, EDM, Range Reduction (on TX) | Hand protection res. 30 mm |
| Storage temperature | 25…+ 70°C |
| Operating Temperature | 10…+55°C |
| SG2 EXTENDED safety light curtain type 2 res = 30 mm h | 750 mm edm coded man/auto |
| Nominal sensing distance | 0,2 … 19 m |
| controlled height | 750 mm |
| Effective Aperture Angle | ≤ ±5° |
| Available functions | Manual/Automatic Restart, EDM, Range Reduction (on TX) |
| Functions | Hand protection res. 30 mm |
| Type | Type 2 safety light curtain (A/M) |
| Load current | ≤ 500mA each output |
| Emission | Infrared LED (850 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 3W (no load) |
| Power Consumption - Emitter | ≤ 2W |
| Capacitive Load | ≥ 2,2µF |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Humidity | 15 … 95 % (no condensation) |
| Material | Painted aluminum / PMMA / PC MAKROLON |
| Material | Connections |
| Function Principle | Emitter + Receiver |
| Application | Function Principle |
