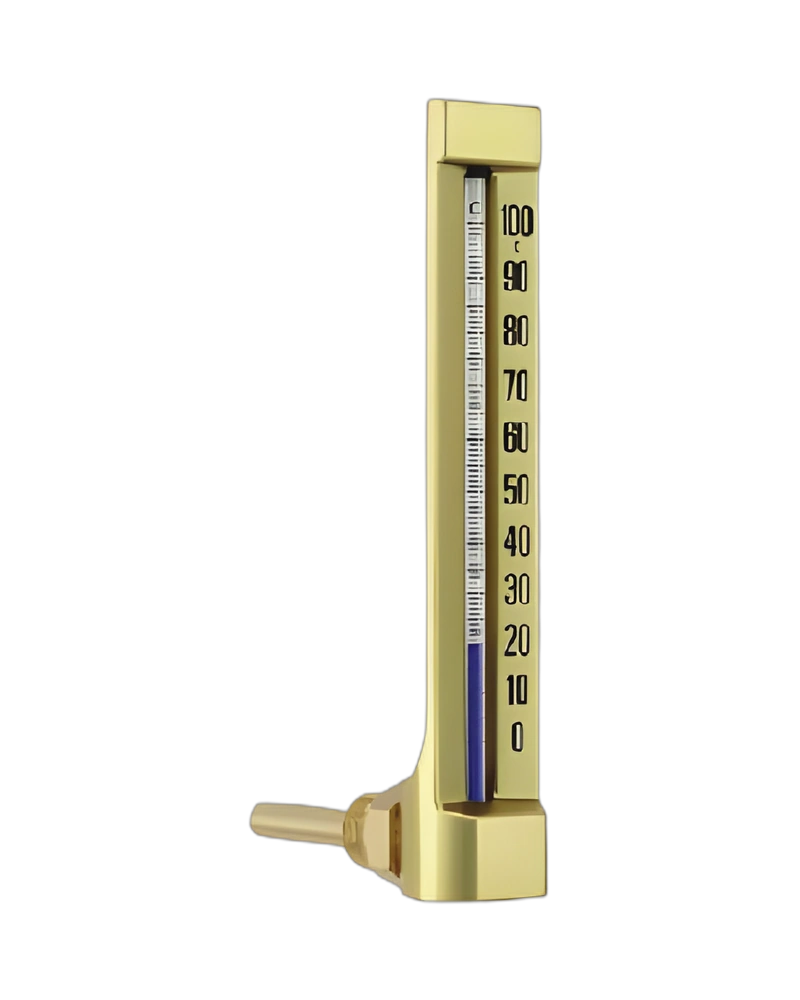

The Series TV-P Glass thermometer Angle 90° - Glass Thermometer 150mm is a Control Process glass thermometer using a glass insert and blue thermometer liquid for direct visual temperature indication. The listed scale/nominal length is 150 mm, and the series is offered in 110, 150 and 200 mm versions. The rear 90° arrangement determines the orientation of the instrument relative to the process connection.
The specified construction uses brass-colour aluminium housing, glass insert and blue thermometer liquid. The bulb diameter is 10 mm and different bulb lengths are available within the series. The glass thermometer format provides a simple direct-reading indication without the electrical output stage associated with electronic transmitters.
The TVP family is offered in 110, 150 and 200 mm nominal lengths. The selected length identifies the visible scale/body configuration, while the process-side bulb and connection are chosen from the series coding options. For the TV-P version, the specified construction is the rear 90-degree format; for TV-R, the configuration is radial/straight.
The thermometer should be installed using the correct bulb length and process connection for the measurement point. The selected scale should match the required operating temperature range. Because the series lists multiple construction and bulb options within the family, the ordering code should be used to identify the exact configured instrument.
| Model / Series | TVP-150mm |
|---|---|
| Instrument type | Glass thermometer |
| Case / Construction | brass-colour aluminium housing, glass insert and blue thermometer liquid |
| Mounting / Execution | rear 90° |
| Process / Internal construction | 10 mm bulb diameter; various bulb lengths |
| Accuracy | not stated in the listed available series information |
| Dial / Indication | — |
| Standard / Design | Control Process TV-P series |
| Temperature | scale depends on selected configuration |
| Pressure / Measurement range | various scale configurations |
| Available / Listed sizes | 110, 150 and 200 mm |
