The Safety Light Curtains - SLIM - 957911460 (SL2-24-0510-E) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

Datasensing Safety Light Curtain SLIM 95791: 957911460 (SL2-24-0510-E)

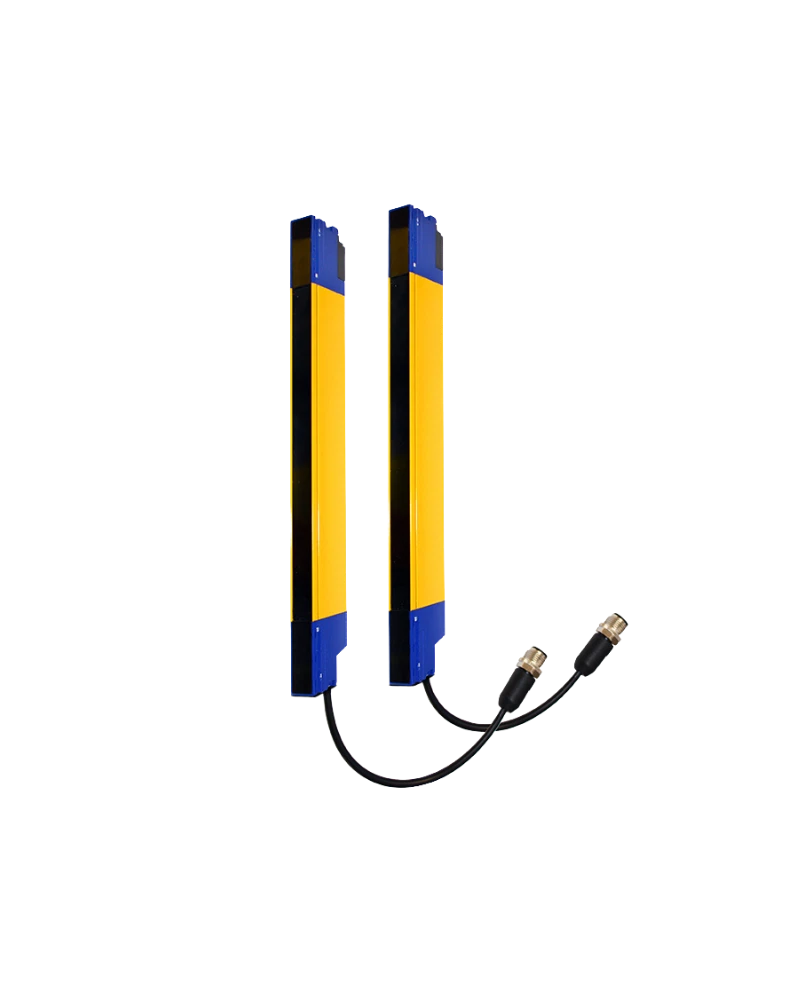

The Datasensing Safety Light Curtain SLIM 957911460 (SL2-24-0510-E) is a high-precision safety device designed for industrial machinery. It features a 24mm resolution and provides 2 x PNP-NO OSSD safety outputs with EDM capability.

Technical Specifications

• Response Time: 9 ms (Master) / 18 ms (Master + Slave) / 20 ms (Master + 2 Slaves)
• Operating Voltage: 24 Vdc ±20%
• Cable Lengths: Power/Output ≤20m; Master-Slave Interconnection ≤1m
• Dimensions: 15x33x510 mm
• Connections: M12-5 poles pig-tail (emitter) and M12-5 poles pig-tail (receiver)

Key Features

• High mechanical flexibility for optimal integration into machine structures
• Ensures rapid machine safety with 9ms response time
• Robust 24Vdc ±20% operating voltage for reliable performance

Performance

The documented configuration includes Resolution: 24mm; Response time: 9 ms; Response Time (Master + Slave): 18 ms; Response Time (Master + 2 Slave): 20 ms; Nominal sensing distance: 0,2 … 6 m; Emission: Infrared LED (850 nm wavelength).

Electrical and Interface

The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 20m; Cable Length for Master Slave Interconnections: ≤ 1m (Master-Slave Cable); Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 4,2W (no load); Power Consumption - Emitter: ≤ 1,6W.

Mechanical and Environmental

The documented configuration includes Dimensions: 15x33x510; Storage temperature: -25…+ 70°C; Dimensions: 15,4x32,6x510 mm; Operating Temperature: -10…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; Operating Temperature: 10…+55°C; controlled height: 510 mm.

Mechanical and Environmental – Additional Details

The documented configuration includes Humidity: 15 … 95 % (no condensation); Material: Metal - Aluminium / PMMA / Painted Zamak; Material: Connections.

Configuration and Functional

The documented configuration includes SLIM safety light curtain type 2 res = 24 mm h: 510 mm edm man/auto; Available functions: Manual/Automatic Restart, EDM; Functions: Hand protection res. 24 mm; Function Principle: Emitter + Receiver; Application: Function Principle.

General

The documented configuration includes Connections: M12-5 poles pig-tail (emitter) M12-5 poles pig-tail (receiver); Effective Aperture Angle: ≤ ±5°; Description: SLIM no-dead-zone cascadable; Type: Type 2 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29); SLIM profile: 15 x 32 mm.
