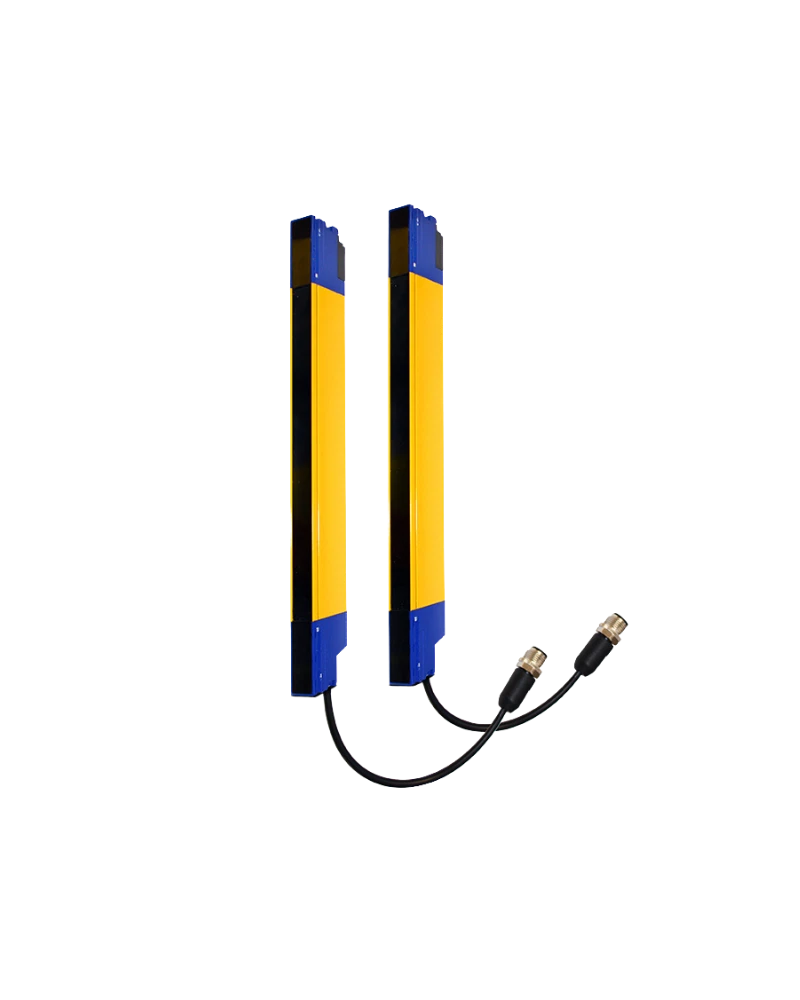

The Safety Light Curtains - SLIM - 957910770 (SL4-34-0480-E) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing Safety Light Curtain - SLIM model (957910770, SL4-34-0480-E) delivers precise safety monitoring for industrial machinery with a 34mm resolution. This compact device features 2 x PNP-NO OSSD safety outputs with EDM, ensuring reliable machine safety integration.
Engineered for high mechanical flexibility, this safety light curtain ensures a perfect fit into machine structures without compromising safety performance. The SLIM design provides a compact solution for applications requiring precise safety monitoring in fast-paced industrial environments.
The documented configuration includes Resolution: 34mm; Response time: 9,5 ms; Response Time (Master + Slave): 18 ms; Response Time (Master + 2 Slave): 20 ms; Nominal sensing distance: 0,2 … 6 m; Emission: Infrared LED (850 nm wavelength).
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 20m; Cable Length for Master Slave Interconnections: ≤ 1m (Master-Slave Cable); Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 4,2W (no load); Power Consumption - Emitter: ≤ 1,6W.
The documented configuration includes Dimensions: 15x33x480; Storage temperature: -25…+ 70°C; Dimensions: 15,4x32,6x480 mm; Operating Temperature: -10…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; Operating Temperature: 10…+55°C; controlled height: 480 mm.
The documented configuration includes Humidity: 15 … 95 % (no condensation); Material: Metal - Aluminium / PMMA / Painted Zamak; Material: Connections.
The documented configuration includes SLIM safety light curtain type 4 res = 34 mm h: 480 mm edm man/auto; Available functions: Manual/Automatic Restart, EDM; Functions: Hand protection res. 34 mm; Function Principle: Emitter + Receiver; Application: Function Principle.
The documented configuration includes Connections: M12-5 poles pig-tail (emitter) M12-5 poles pig-tail (receiver); Effective Aperture Angle: ≤ ±2,5°; Description: SLIM no-dead-zone cascadable; Type: Type 4 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29); SLIM profile: 15 x 32 mm.
| Feature | Specification |
|---|---|
| Resolution | 34mm |
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 9,5 ms |
| Response Time (Master + Slave) | 18 ms |
| Response Time (Master + 2 Slave) | 20 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 20m |
| Cable Length for Master Slave Interconnections | ≤ 1m (Master-Slave Cable) |
| Dimensions | 15x33x480 |
| Connections | M12-5 poles pig-tail (emitter) M12-5 poles pig-tail (receiver) |
| Storage temperature | -25…+ 70°C |
| Dimensions | 15,4x32,6x480 mm |
| Operating Temperature | -10…+55°C |
| Mechanical Protection | IP65 |
| Storage temperature | 25…+ 70°C |
| Operating Temperature | 10…+55°C |
| SLIM safety light curtain type 4 res = 34 mm h | 480 mm edm man/auto |
| Nominal sensing distance | 0,2 … 6 m |
| controlled height | 480 mm |
| Effective Aperture Angle | ≤ ±2,5° |
| Available functions | Manual/Automatic Restart, EDM |
| Description | SLIM no-dead-zone cascadable |
| Functions | Hand protection res. 34 mm |
| Type | Type 4 safety light curtain (A/M) |
| Load current | ≤ 500mA each output |
| Emission | Infrared LED (850 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 4,2W (no load) |
| Power Consumption - Emitter | ≤ 1,6W |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Humidity | 15 … 95 % (no condensation) |
| SLIM profile | 15 x 32 mm |
| Material | Metal - Aluminium / PMMA / Painted Zamak |
| Material | Connections |
| Function Principle | Emitter + Receiver |
| Application | Function Principle |
