The Safety Light Curtains - 957920234 (SH4-4-1200-A-12-5) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

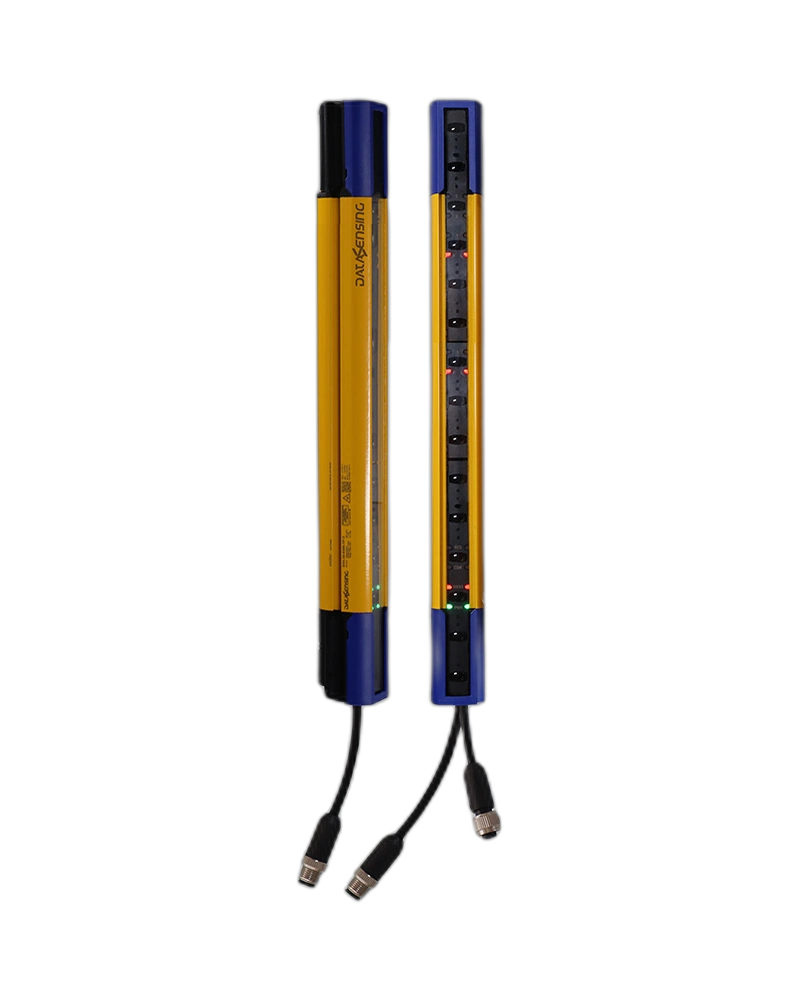

The Datasensing SH4-4-1200-A-12-5 (957920234) is a high-precision safety light curtain designed for industrial machinery safety. It provides body protection with 2, 3, or 4 beams and operates within a robust temperature range of -30°C to +70°C.
Engineered for reliability in demanding environments, this light curtain ensures compliance with safety standards through its precise optical detection and robust construction.
The documented configuration includes Resolution: 400 mm; Response time: 15 ms; Improved operating range: 70 m; Emission: Infrared LED (850 nm wavelength); SH4 ADVANCED 4 beams h: 1200 mm 12+5 poles edm man/auto muting blanking wi-fi.
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 30 m Receiver ; ≤ 50 m Emitter; Cable Length for Master Slave Interconnections: ≤ 10 m; Network Interface: Wi-Fi Ethernet TCP/IP; Load current: ≤ 250mA each output; Power Consumption - Receiver: ≤ 4W (no load); Power Consumption - Emitter: ≤ 3,5W.
The documented configuration includes Muting lamp output: Incandescent lamp or LED.
The documented configuration includes Material: Painted aluminum / MAKROLON AR 7099 Clear PC / PBT; Storage temperature: -30 …+70 °C; Dimensions: 35x40x1374 mm; Operating Temperature: -30…+55°C; Mechanical Protection: IP65, IP 67 (EN 60529); Storage temperature: 30 …+70 °C; Operating Temperature: 30…+55°C; Standard "L" Mounting Brackets: 6 pcs kit.
The documented configuration includes controlled height: 1200 mm; Humidity: 15 … 95 % (no condensation).
The documented configuration includes Available functions: Manual/Automatic Restart, EDM, L/T 2-signals Muting, T 4-signals Muting, Partial Muting, Muting Filter, Override, Blanking, Wi-fi programmability; Functions: Body protection 2 beams muting Wi-Fi programmable; Standard Muting functions: 2-signals mono and bidirectional muting, override; Advanced functions: partial muting, dynamic partial muting, 4-signals muting; Function Principle: Emitter + Receiver; Application: Function Principle.
The documented configuration includes Connections: M12-5 poles pigtail (emitter) M12-12 poles + M12-5 poles pigtails (receiver); Effective Aperture Angle: ≤ ±2.5°; Description: Compact no-dead-zone ADVANCED Wi-Fi Programmable; Type: Type 4 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Capacitive Load: ≤ 1µF; Vibrations: 10 mm / 3 g, 5 … 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); Shocks: 25 g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3).
The documented configuration includes Shocks and vibrations: 10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3).
| Feature | Specification |
|---|---|
| Resolution | 400 mm |
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 15 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 30 m Receiver ; ≤ 50 m Emitter |
| Cable Length for Master Slave Interconnections | ≤ 10 m |
| Material | Painted aluminum / MAKROLON AR 7099 Clear PC / PBT |
| Connections | M12-5 poles pigtail (emitter) M12-12 poles + M12-5 poles pigtails (receiver) |
| Storage temperature | -30 …+70 °C |
| Network Interface | Wi-Fi Ethernet TCP/IP |
| Dimensions | 35x40x1374 mm |
| Operating Temperature | -30…+55°C |
| Mechanical Protection | IP65, IP 67 (EN 60529) |
| Storage temperature | 30 …+70 °C |
| Operating Temperature | 30…+55°C |
| Improved operating range | 70 m |
| Standard "L" Mounting Brackets | 6 pcs kit |
| controlled height | 1200 mm |
| Effective Aperture Angle | ≤ ±2.5° |
| Available functions | Manual/Automatic Restart, EDM, L/T 2-signals Muting, T 4-signals Muting, Partial Muting, Muting Filter, Override, Blanking, Wi-fi programmability |
| Description | Compact no-dead-zone ADVANCED Wi-Fi Programmable |
| Functions | Body protection 2 beams muting Wi-Fi programmable |
| Type | Type 4 safety light curtain (A/M) |
| Load current | ≤ 250mA each output |
| Emission | Infrared LED (850 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 4W (no load) |
| Power Consumption - Emitter | ≤ 3,5W |
| Capacitive Load | ≤ 1µF |
| Vibrations | 10 mm / 3 g, 5 … 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3) |
| Shocks | 25 g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3) |
| Shocks and vibrations | 10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3) |
| Humidity | 15 … 95 % (no condensation) |
| SH4 ADVANCED 4 beams h | 1200 mm 12+5 poles edm man/auto muting blanking wi-fi |
| Standard Muting functions | 2-signals mono and bidirectional muting, override |
| Advanced functions | partial muting, dynamic partial muting, 4-signals muting |
| Muting lamp output | Incandescent lamp or LED |
| Function Principle | Emitter + Receiver |
| Application | Function Principle |
