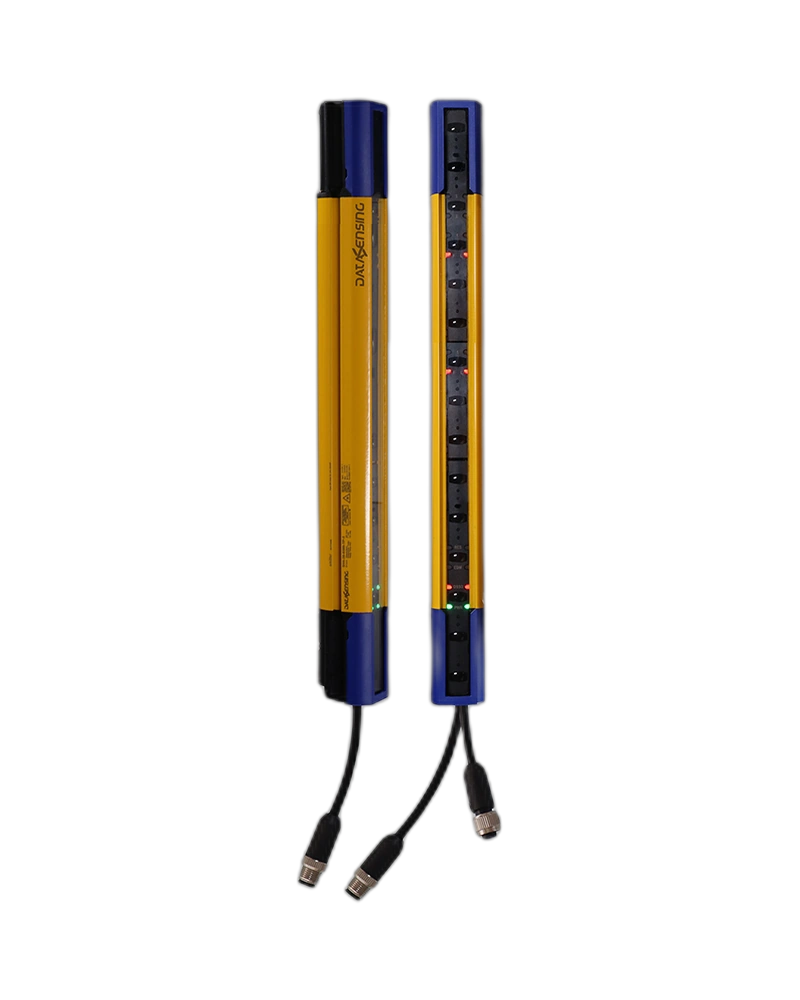

The Safety Light Curtains - 957920209 (SH4-30-1200-A-12-5) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
This industrial safety light curtain delivers precise 30 mm hand protection with dual PNP-NO safety outputs (OSSD) and a 12 ms response time. Designed for high-speed machinery safety, it operates within 24 Vdc ±20% voltage range and supports up to 30 meters of power cable and 10 meters of master-slave interconnections.
The documented configuration includes Resolution: 30 mm; Response time: 12 ms; Improved operating range: 20 m; Nominal sensing distance: 0.2 … 20 m; Emission: Infrared LED (850 nm wavelength).
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 30 m; Cable Length for Master Slave Interconnections: ≤ 10 m; Network Interface: Wi-Fi Ethernet TCP/IP; Load current: ≤ 250mA each output; Power Consumption - Receiver: ≤ 4W (no load); Power Consumption - Emitter: ≤ 3,5W.
The documented configuration includes Muting lamp output: Incandescent lamp or LED.
The documented configuration includes Material: Painted aluminum / MAKROLON AR 7099 Clear PC / PBT; Storage temperature: -30 …+70 °C; Dimensions: 35x40x1209 mm; Operating Temperature: -30…+55°C; Mechanical Protection: IP65, IP 67 (EN 60529); Storage temperature: 30 …+70 °C; Operating Temperature: 30…+55°C; Standard "L" Mounting Brackets: 6 pcs kit.
The documented configuration includes controlled height: 1200 mm; Humidity: 15 … 95 % (no condensation).
The documented configuration includes Available functions: Manual/Automatic Restart, EDM, L/T 2-signals Muting, T 4-signals Muting, Partial Muting, Muting Filter, Override, Blanking, Wi-fi programmability; Functions: Finger protection res. 30 mm Wi-Fi programmable; Standard Muting functions: 2-signals mono and bidirectional muting, override; Advanced functions: partial muting, dynamic partial muting, 4-signals muting, reduced resolution, multiple fixed or floating blanking zones; Function Principle: Emitter + Receiver; Application: Function Principle.
The documented configuration includes Connections: M12-5 poles pigtail (emitter) M12-12 poles + M12-5 poles pigtails (receiver); Effective Aperture Angle: ≤ ±2.5°; Description: Compact no-dead-zone ADVANCED Wi-Fi Programmable; Type: Type 4 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Capacitive Load: ≤ 1µF; Vibrations: 10 mm / 3 g, 5 … 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); Shocks: 25 g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3).
The documented configuration includes Shocks and vibrations: 10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3); SH4 ADVANCED Res = 30 mm h: 1200 mm 12+5 poles edm man/auto muting blanking wi-fi.
| Feature | Specification |
|---|---|
| Resolution | 30 mm |
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 12 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 30 m |
| Cable Length for Master Slave Interconnections | ≤ 10 m |
| Material | Painted aluminum / MAKROLON AR 7099 Clear PC / PBT |
| Connections | M12-5 poles pigtail (emitter) M12-12 poles + M12-5 poles pigtails (receiver) |
| Storage temperature | -30 …+70 °C |
| Network Interface | Wi-Fi Ethernet TCP/IP |
| Dimensions | 35x40x1209 mm |
| Operating Temperature | -30…+55°C |
| Mechanical Protection | IP65, IP 67 (EN 60529) |
| Storage temperature | 30 …+70 °C |
| Operating Temperature | 30…+55°C |
| Improved operating range | 20 m |
| Standard "L" Mounting Brackets | 6 pcs kit |
| Nominal sensing distance | 0.2 … 20 m |
| controlled height | 1200 mm |
| Effective Aperture Angle | ≤ ±2.5° |
| Available functions | Manual/Automatic Restart, EDM, L/T 2-signals Muting, T 4-signals Muting, Partial Muting, Muting Filter, Override, Blanking, Wi-fi programmability |
| Description | Compact no-dead-zone ADVANCED Wi-Fi Programmable |
| Functions | Finger protection res. 30 mm Wi-Fi programmable |
| Type | Type 4 safety light curtain (A/M) |
| Load current | ≤ 250mA each output |
| Emission | Infrared LED (850 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 4W (no load) |
| Power Consumption - Emitter | ≤ 3,5W |
| Capacitive Load | ≤ 1µF |
| Vibrations | 10 mm / 3 g, 5 … 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3) |
| Shocks | 25 g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3) |
| Shocks and vibrations | 10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3) |
| Humidity | 15 … 95 % (no condensation) |
| SH4 ADVANCED Res = 30 mm h | 1200 mm 12+5 poles edm man/auto muting blanking wi-fi |
| Standard Muting functions | 2-signals mono and bidirectional muting, override |
| Advanced functions | partial muting, dynamic partial muting, 4-signals muting, reduced resolution, multiple fixed or floating blanking zones |
| Muting lamp output | Incandescent lamp or LED |
| Function Principle | Emitter + Receiver |
| Application | Function Principle |
