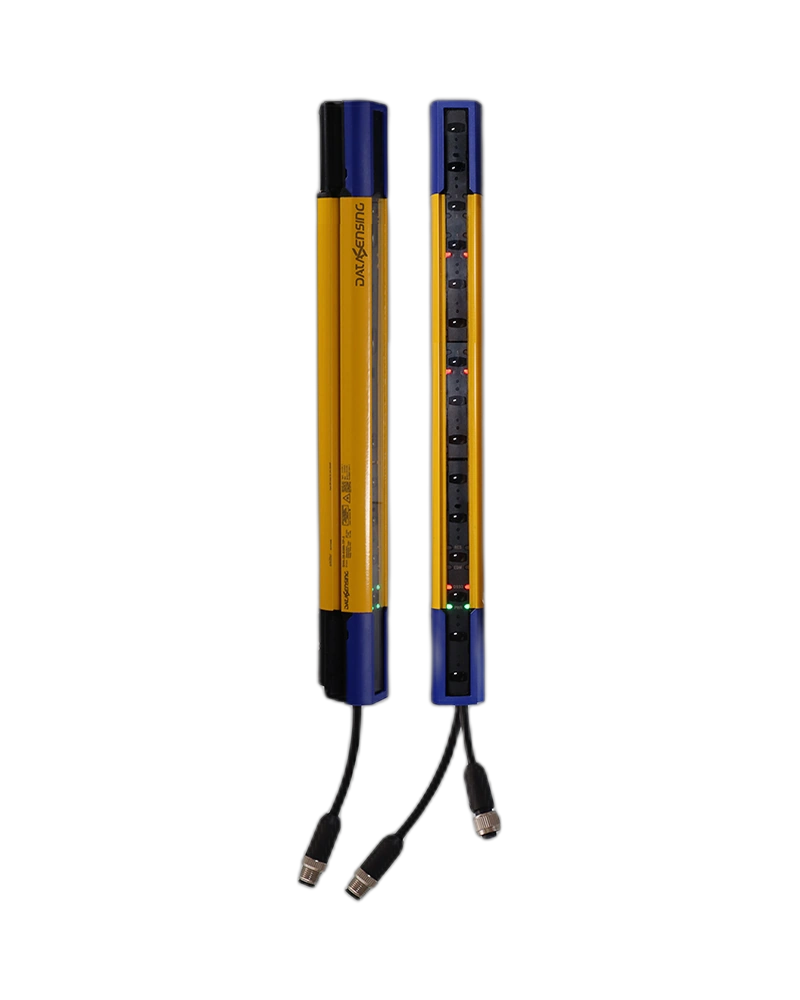

The Safety Light Curtains - 957920205 (SH4-30-0600-A-12-5) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing Safety Light Curtain 957920205 (SH4-30-0600-A-12-5) provides high-precision hand protection with a 30 mm resolution. This industrial-grade safety device features dual PNP-NO outputs with EDM for reliable safety signaling, ensuring rapid response times of 9 ms. Designed for demanding environments, it operates within a 24 Vdc ±20% voltage range and supports cable lengths up to 30 m for power supply and 10 m for master-slave interconnections.
With Wi-Fi Ethernet TCP/IP network interface, this safety light curtain integrates seamlessly into modern industrial control systems for real-time monitoring and enhanced safety compliance.
The documented configuration includes Resolution: 30 mm; Response time: 9 ms; Improved operating range: 20 m; Nominal sensing distance: 0.2 … 20 m; Emission: Infrared LED (850 nm wavelength).
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 30 m; Cable Length for Master Slave Interconnections: ≤ 10 m; Network Interface: Wi-Fi Ethernet TCP/IP; Load current: ≤ 250mA each output; Power Consumption - Receiver: ≤ 4W (no load); Power Consumption - Emitter: ≤ 3,5W.
The documented configuration includes Muting lamp output: Incandescent lamp or LED.
The documented configuration includes Material: Painted aluminum / MAKROLON AR 7099 Clear PC / PBT; Storage temperature: -30 …+70 °C; Dimensions: 35x40x609 mm; Operating Temperature: -30…+55°C; Mechanical Protection: IP65, IP 67 (EN 60529); Storage temperature: 30 …+70 °C; Operating Temperature: 30…+55°C; Standard "L" Mounting Brackets: 4 pcs kit.
The documented configuration includes controlled height: 600 mm; Humidity: 15 … 95 % (no condensation).
The documented configuration includes Available functions: Manual/Automatic Restart, EDM, L/T 2-signals Muting, T 4-signals Muting, Partial Muting, Muting Filter, Override, Blanking, Wi-fi programmability; Functions: Finger protection res. 30 mm Wi-Fi programmable; Standard Muting functions: 2-signals mono and bidirectional muting, override; Advanced functions: partial muting, dynamic partial muting, 4-signals muting, reduced resolution, multiple fixed or floating blanking zones; Function Principle: Emitter + Receiver; Application: Function Principle.
The documented configuration includes Connections: M12-5 poles pigtail (emitter) M12-12 poles + M12-5 poles pigtails (receiver); Effective Aperture Angle: ≤ ±2.5°; Description: Compact no-dead-zone ADVANCED Wi-Fi Programmable; Type: Type 4 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Capacitive Load: ≤ 1µF; Vibrations: 10 mm / 3 g, 5 … 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); Shocks: 25 g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3).
The documented configuration includes Shocks and vibrations: 10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3); SH4 ADVANCED Res = 30 mm h: 600 mm 12+5 poles edm man/auto muting blanking wi-fi.
| Feature | Specification |
|---|---|
| Resolution | 30 mm |
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 9 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 30 m |
| Cable Length for Master Slave Interconnections | ≤ 10 m |
| Material | Painted aluminum / MAKROLON AR 7099 Clear PC / PBT |
| Connections | M12-5 poles pigtail (emitter) M12-12 poles + M12-5 poles pigtails (receiver) |
| Storage temperature | -30 …+70 °C |
| Network Interface | Wi-Fi Ethernet TCP/IP |
| Dimensions | 35x40x609 mm |
| Operating Temperature | -30…+55°C |
| Mechanical Protection | IP65, IP 67 (EN 60529) |
| Storage temperature | 30 …+70 °C |
| Operating Temperature | 30…+55°C |
| Improved operating range | 20 m |
| Standard "L" Mounting Brackets | 4 pcs kit |
| Nominal sensing distance | 0.2 … 20 m |
| controlled height | 600 mm |
| Effective Aperture Angle | ≤ ±2.5° |
| Available functions | Manual/Automatic Restart, EDM, L/T 2-signals Muting, T 4-signals Muting, Partial Muting, Muting Filter, Override, Blanking, Wi-fi programmability |
| Description | Compact no-dead-zone ADVANCED Wi-Fi Programmable |
| Functions | Finger protection res. 30 mm Wi-Fi programmable |
| Type | Type 4 safety light curtain (A/M) |
| Load current | ≤ 250mA each output |
| Emission | Infrared LED (850 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 4W (no load) |
| Power Consumption - Emitter | ≤ 3,5W |
| Capacitive Load | ≤ 1µF |
| Vibrations | 10 mm / 3 g, 5 … 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3) |
| Shocks | 25 g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3) |
| Shocks and vibrations | 10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3) |
| Humidity | 15 … 95 % (no condensation) |
| SH4 ADVANCED Res = 30 mm h | 600 mm 12+5 poles edm man/auto muting blanking wi-fi |
| Standard Muting functions | 2-signals mono and bidirectional muting, override |
| Advanced functions | partial muting, dynamic partial muting, 4-signals muting, reduced resolution, multiple fixed or floating blanking zones |
| Muting lamp output | Incandescent lamp or LED |
| Function Principle | Emitter + Receiver |
| Application | Function Principle |
