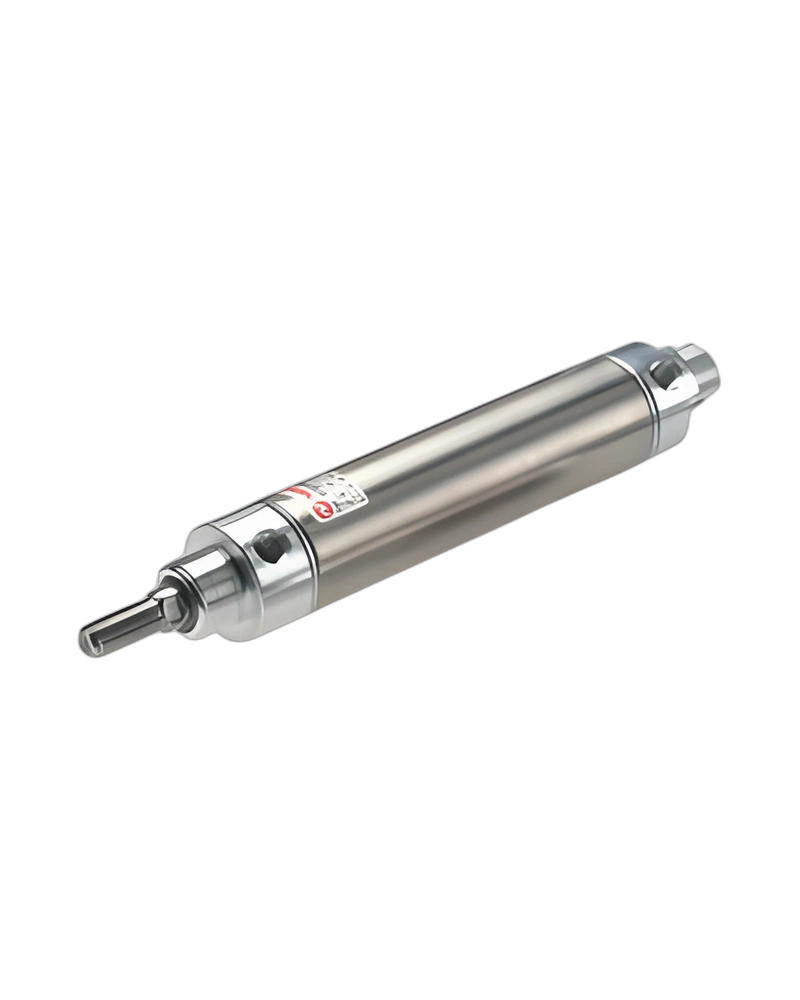

RT-57240-M-95 is a NORGREN configuration represented by Roundline double acting cylinder, 40mm diameter, 95mm stroke - RT/57240/M/95. This product entry presents the listed configuration and model-specific technical information for selection and comparison.
The selected configuration is identified by Roundline double acting cylinder, 40mm diameter, 95mm stroke - RT/57240/M/95. The principal recorded product data includes Media: Compressed air. Port Size: 1/8" ISO Rc. Stroke Length: 95 mm. Operating Temperature: -10 ... 80 °C, 14 ... 176 °F. Operating Pressure: 1 ... 10 bar, 15 ... 145 psi. Cushioning: Buffer cushioning. Theoretical Force (6 bar): 754 N. Materials - Barrel: Stainless steel (austenitic).
Materials - Piston Head Seals: Nitrile rubber (NBR). Materials - Piston Rod: Stainless steel (Martensitic). Country of Origin: Germany. Range: RT/57200/M. Materials: cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length /. Materials: cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo). Materials: cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5. Materials: cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250. Gauge: ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D '. Gauge: P R F J K V U T. Materials: Scale.
Title: RT/57240/M/95 | Roundline double acting cylinder, side port, threaded end, 40mm diameter, 95mm stroke URL Source:
The listed product specifies Media as Compressed air. This stated value forms part of the model-specific product information.
For this configuration, Port Size is 1/8" ISO Rc. The value is retained as part of the product definition used for catalogue selection.
| Specification | Value |
|---|---|
| Media | Compressed air |
| Port Size | 1/8" ISO Rc |
| Stroke Length | 95 mm |
| Operating Temperature | -10 ... 80 °C, 14 ... 176 °F |
| Operating Pressure | 1 ... 10 bar, 15 ... 145 psi |
| Cushioning | Buffer cushioning |
| Theoretical Force (6 bar) | 754 N |
| Materials - Barrel | Stainless steel (austenitic) |
| Materials - Piston Head Seals | Nitrile rubber (NBR) |
| Materials - Piston Rod | Stainless steel (Martensitic) |
| Country of Origin | Germany |
| Range | RT/57200/M |
| Materials | cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length / |
| Materials | cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo) |
| Materials | cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5 |
| Materials | cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250 |
| Gauge | ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D ' |
| Gauge | P R F J K V U T |
| Materials | Scale |
