Product Overview

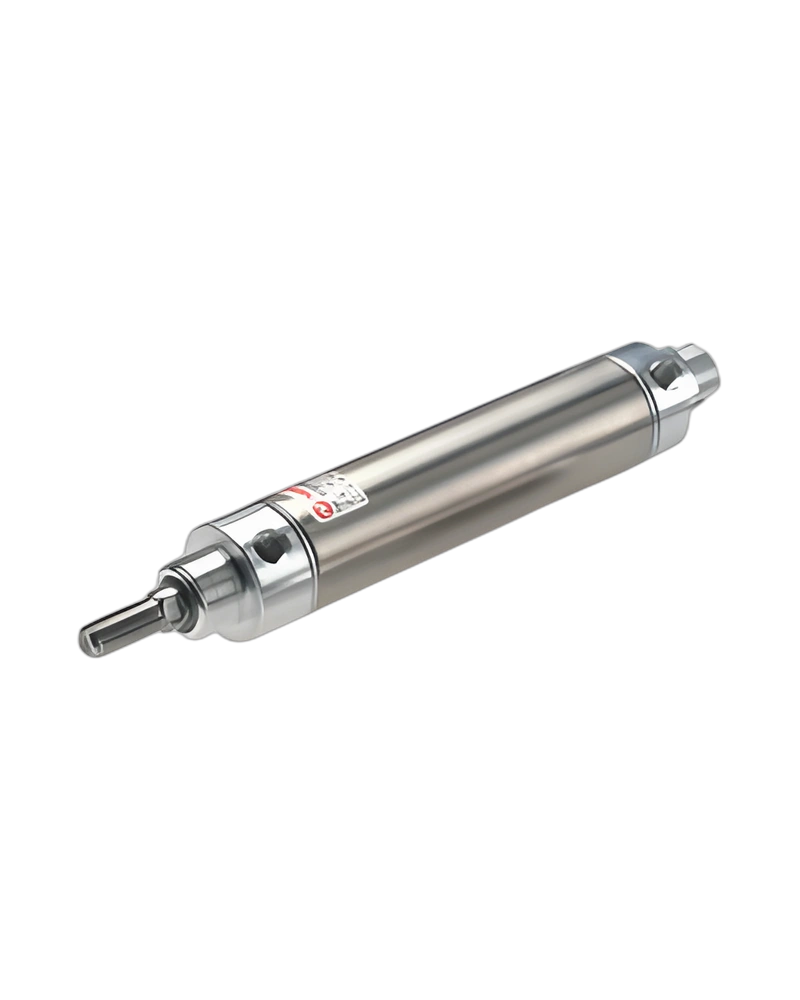

RT-57240-M-25 is listed as Roundline double acting cylinder, 40mm diameter, 25mm stroke - RT/57240/M/25. The following sections present the recorded product configuration and technical values for this exact model.

Configuration and Technical Details

Medium: Compressed air; Port Size: Rc1/8; Stroke Length: 25 mm; Operating Temperature: -10 ... 80 °C, 14 ... 176 °F; Operating Pressure: 1 ... 10 bar, 15 ... 145 psi; Cushioning: Buffer cushioning; Theoretical Force (6 bar): 754 N; Materials - Barrel: Stainless steel (austenitic); Materials - Piston Head Seals: Nitrile rubber (NBR); Materials - Piston Rod: Stainless steel (martensitic); Dimensions - Height: 41.5 mm; Dimensions - Length: 154 mm; Dimensions - Width: 41.5 mm; Weight: 0.53 kg; Country of Origin: Czechia; Range: RT/57200/M

Technical Selection Information

Medium is specified as Compressed air. Port Size is specified as Rc1/8. Stroke Length is specified as 25 mm. Operating Temperature is specified as -10 ... 80 °C, 14 ... 176 °F. Operating Pressure is specified as 1 ... 10 bar, 15 ... 145 psi. Cushioning is specified as Buffer cushioning. Theoretical Force (6 bar) is specified as 754 N. Materials - Barrel is specified as Stainless steel (austenitic). Materials - Piston Head Seals is specified as Nitrile rubber (NBR). Materials - Piston Rod is specified as Stainless steel (martensitic). Dimensions - Height is specified as 41.5 mm. Dimensions - Length is specified as 154 mm. Dimensions - Width is specified as 41.5 mm. Weight is specified as 0.53 kg. Country of Origin is specified as Czechia. Range is specified as RT/57200/M.

Product Information

Title: RT/57240/M/25 | Roundline double acting cylinder, side port, threaded end, 40mm diameter, 25mm stroke URL Source: Published Time: Wed, 09 Sep 2026 17:39:01 GMT

Catalogue Configuration Reference

The product record specifies Medium: Compressed air; Port Size: Rc1/8; Stroke Length: 25 mm; Operating Temperature: -10 ... 80 °C, 14 ... 176 °F; Operating Pressure: 1 ... 10 bar, 15 ... 145 psi; Cushioning: Buffer cushioning; Theoretical Force (6 bar): 754 N; Materials - Barrel: Stainless steel (austenitic); Materials - Piston Head Seals: Nitrile rubber (NBR); Materials - Piston Rod: Stainless steel (martensitic); Dimensions - Height: 41.5 mm; Dimensions - Length: 154 mm; Dimensions - Width: 41.5 mm; Weight: 0.53 kg; Country of Origin: Czechia; Range: RT/57200/M. These values identify the listed configuration and provide the technical information used for product selection.
