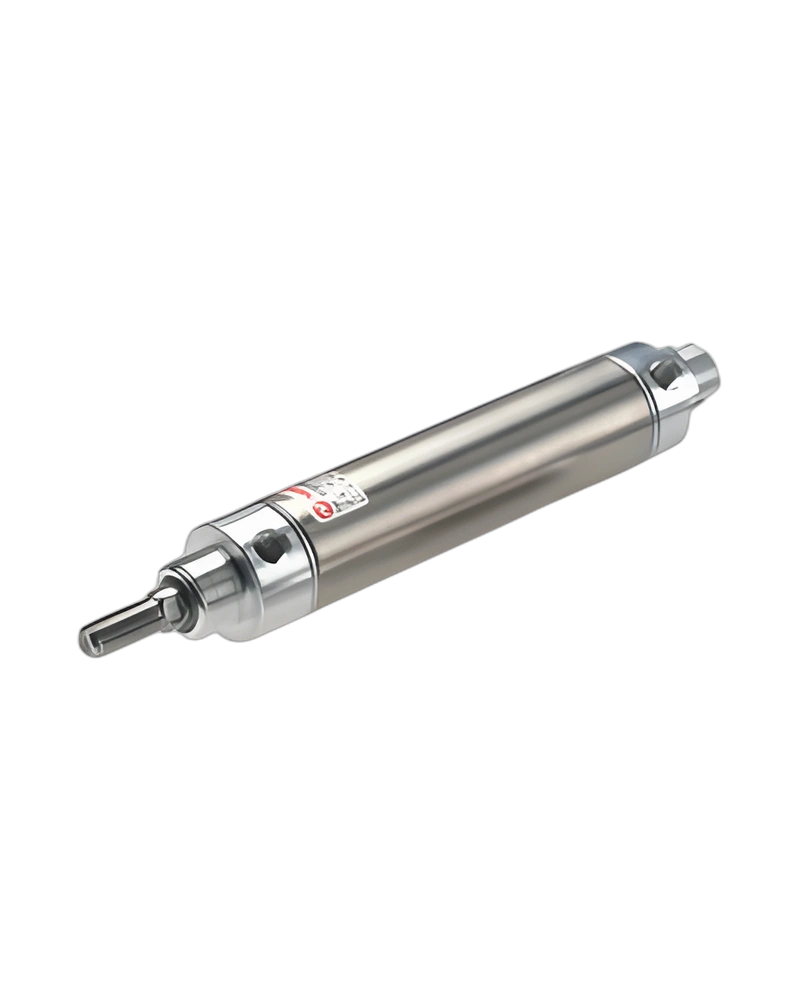

RT-57240-MC-250 is a NORGREN Roundline double acting cylinder, 40mm diameter, 250mm stroke - RT/57240/MC/250 configuration.
Media: Compressed air. Port Size: 1/8" ISO Rc. Stroke Length: 250 mm. Operating Temperature: -10 ... 80 °C, 14 ... 176 °F. Operating Pressure: 1 ... 10 bar, 15 ... 145 psi. Cushioning: Buffer cushioning. Theoretical Force (6 bar): 754 N. Materials - Barrel: Stainless steel (austenitic). Materials - Piston Head Seals: Nitrile rubber (NBR). Materials - Piston Rod: Stainless steel (Martensitic). Range: RT/57200/M. Materials: cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length /. Materials: cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo). Materials: cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5. Materials: cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250. Gauge: ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D '. Gauge: P R F J K V U T. Materials: Scale.
The selected configuration specifies Media as Compressed air. This value is part of the product definition and should be considered together with the other stated configuration details when selecting this model.
For this configuration, Port Size is 1/8" ISO Rc. The product content retains this value exactly as supplied for the selected model and does not substitute a value from another variant.
The product specification includes Stroke Length: 250 mm. This is one of the technical characteristics that defines the configuration presented on this product page.
The stated Operating Temperature is -10 ... 80 °C, 14 ... 176 °F, forming part of the technical information associated with this exact product configuration.
| Specification | Value |
|---|---|
| Media | Compressed air |
| Port Size | 1/8" ISO Rc |
| Stroke Length | 250 mm |
| Operating Temperature | -10 ... 80 °C, 14 ... 176 °F |
| Operating Pressure | 1 ... 10 bar, 15 ... 145 psi |
| Cushioning | Buffer cushioning |
| Theoretical Force (6 bar) | 754 N |
| Materials - Barrel | Stainless steel (austenitic) |
| Materials - Piston Head Seals | Nitrile rubber (NBR) |
| Materials - Piston Rod | Stainless steel (Martensitic) |
| Range | RT/57200/M |
| Materials | cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length / |
| Materials | cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo) |
| Materials | cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5 |
| Materials | cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250 |
| Gauge | ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D ' |
| Gauge | P R F J K V U T |
| Materials | Scale |
