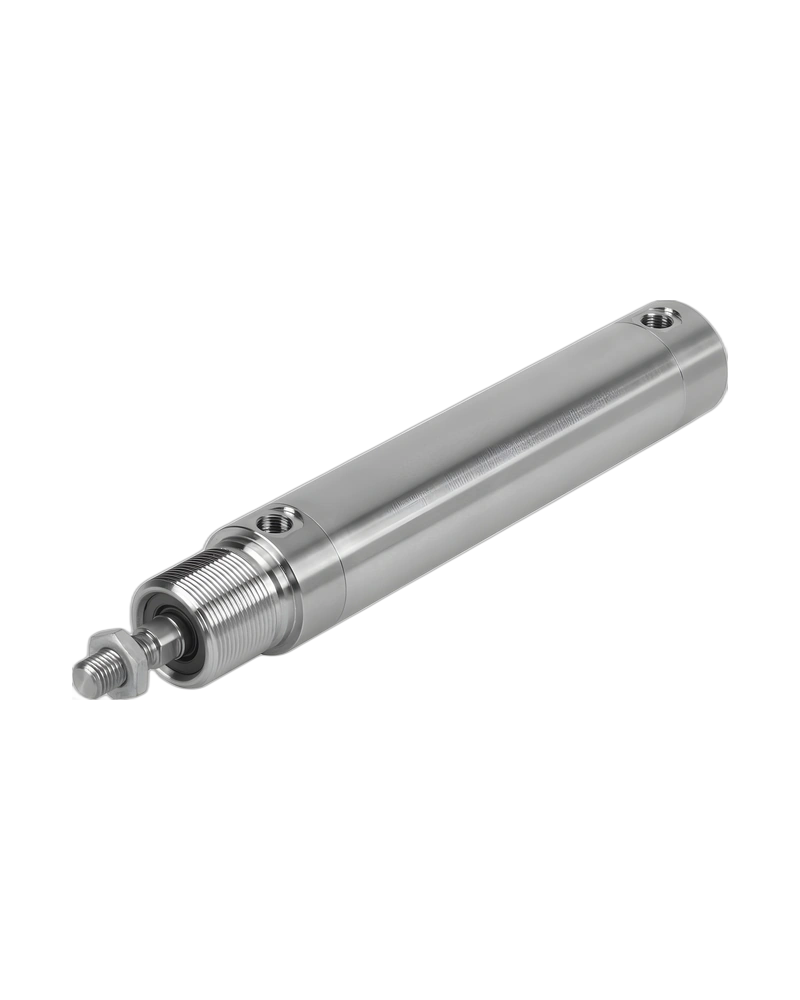

Festo CRHD-40 is a pneumatic cylinder developed for compact, repeatable operation in automated equipment. Its configuration combines the dimensional, operating and connection characteristics listed for this model, allowing the component to be selected around the available installation space and required machine function.
Piston diameter: 32 mm; Stroke: 500 mm.
The dimensional and construction details above define the physical format of CRHD-40 and help distinguish this configuration from other sizes, strokes or mechanical variants.
Operating pressure: 10 bar; Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]; Position sensing: A; Pneumatic connection: G1/8; Cushioning: End-position cushioning has the following; Mounting position: optional; Type of mounting: Switching; Mode of operation: Double-acting.
These characteristics determine how the component is connected, actuated, sensed and installed within an automation system. Configuration-specific options should be selected together with the complete model designation.
Operating pressure: 10 bar; Ambient temperature: 0 °C...80 °C.
The listed operating limits and performance values provide the basis for sizing and application selection. Values are presented in the units associated with the product data.
LABS / PWIS conformity: VDMA24364-B2-L.
Material, environmental and compliance characteristics help determine suitability for the intended machine environment and installation conditions.
CRHD-40 can be integrated into automated handling, positioning, machine building and pneumatic motion systems. The most important selection points are the physical size, operating mode, connection arrangement, environmental limits and any sensing or mounting requirements listed for the product.
| Specification | Value |
|---|---|
| Piston diameter | 32 mm |
| Stroke | 500 mm |
| Operating pressure | 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Position sensing | A |
| Pneumatic connection | G1/8 |
| Cushioning | End-position cushioning has the following |
| Mounting position | optional |
| Type of mounting | Switching |
| LABS / PWIS conformity | VDMA24364-B2-L |
| Mode of operation | Double-acting |
| Ambient temperature | 0 °C...80 °C |
| Specification | Value |
|---|---|
| Piston diameter | 32 mm |
| Stroke | 500 mm |
| Operating pressure | 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Position sensing | A |
| Pneumatic connection | G1/8 |
| Cushioning | End-position cushioning has the following |
| Mounting position | optional |
| Type of mounting | Switching |
| LABS / PWIS conformity | VDMA24364-B2-L |
| Mode of operation | Double-acting |
| Ambient temperature | 0 °C...80 °C |
