Explore performance details, construction highlights, applications, and technical information in one clear overview.

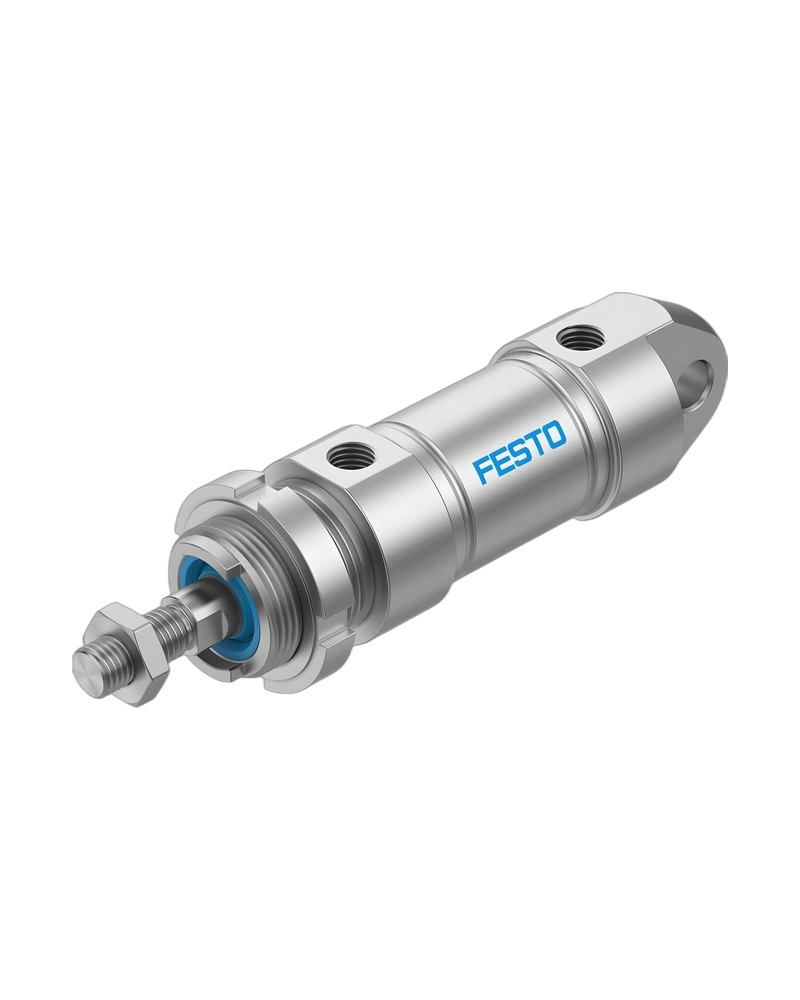

Festo CRDSNU-32-25-P-A is a pneumatic cylinder developed for compact, repeatable operation in automated equipment. Its configuration combines the dimensional, operating and connection characteristics listed for this model, allowing the component to be selected around the available installation space and required machine function.
Function: Standards-based cylinder, double-acting, to ISO 6432; Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]; Position sensing: Via proximity switch; Pneumatic connection: G1/8; Cushioning: Elastic cushioning rings/plates at both ends; Mounting position: Any; Type of mounting: Via accessories; Mode of operation: Double-acting; Operating pressure: 0.1 MPa...1 MPa.
These characteristics determine how the component is connected, actuated, sensed and installed within an automation system. Configuration-specific options should be selected together with the complete model designation.
Operating pressure: 0.1 MPa...1 MPa; Ambient temperature: 0 °C...80 °C.
The listed operating limits and performance values provide the basis for sizing and application selection. Values are presented in the units associated with the product data.
LABS / PWIS conformity: VDMA 24364-B2-L; Corrosion resistance class CRC: @ 32 ... 63.
Material, environmental and compliance characteristics help determine suitability for the intended machine environment and installation conditions.
CRDSNU-32-25-P-A can be integrated into automated handling, positioning, machine building and pneumatic motion systems. The most important selection points are the physical size, operating mode, connection arrangement, environmental limits and any sensing or mounting requirements listed for the product.
| Specification | Value |
|---|---|
| Function | Standards-based cylinder, double-acting, to ISO 6432 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Position sensing | Via proximity switch |
| Pneumatic connection | G1/8 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | Any |
| Type of mounting | Via accessories |
| LABS / PWIS conformity | VDMA 24364-B2-L |
| Corrosion resistance class CRC | @ 32 ... 63 |
| Mode of operation | Double-acting |
| Operating pressure | 0.1 MPa...1 MPa |
| Ambient temperature | 0 °C...80 °C |
| Specification | Value |
|---|---|
| Function | Standards-based cylinder, double-acting, to ISO 6432 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Position sensing | Via proximity switch |
| Pneumatic connection | G1/8 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | Any |
| Type of mounting | Via accessories |
| LABS / PWIS conformity | VDMA 24364-B2-L |
| Corrosion resistance class CRC | @ 32 ... 63 |
| Mode of operation | Double-acting |
| Operating pressure | 0.1 MPa...1 MPa |
| Ambient temperature | 0 °C...80 °C |
