Findeva DAR-5 is a heavy-duty pneumatic roller vibrator developed for applications requiring high centrifugal force, including concrete compaction and bulk-material flow. The model provides continuously variable vibration performance across the published 2, 4 and 6 bar operating points.

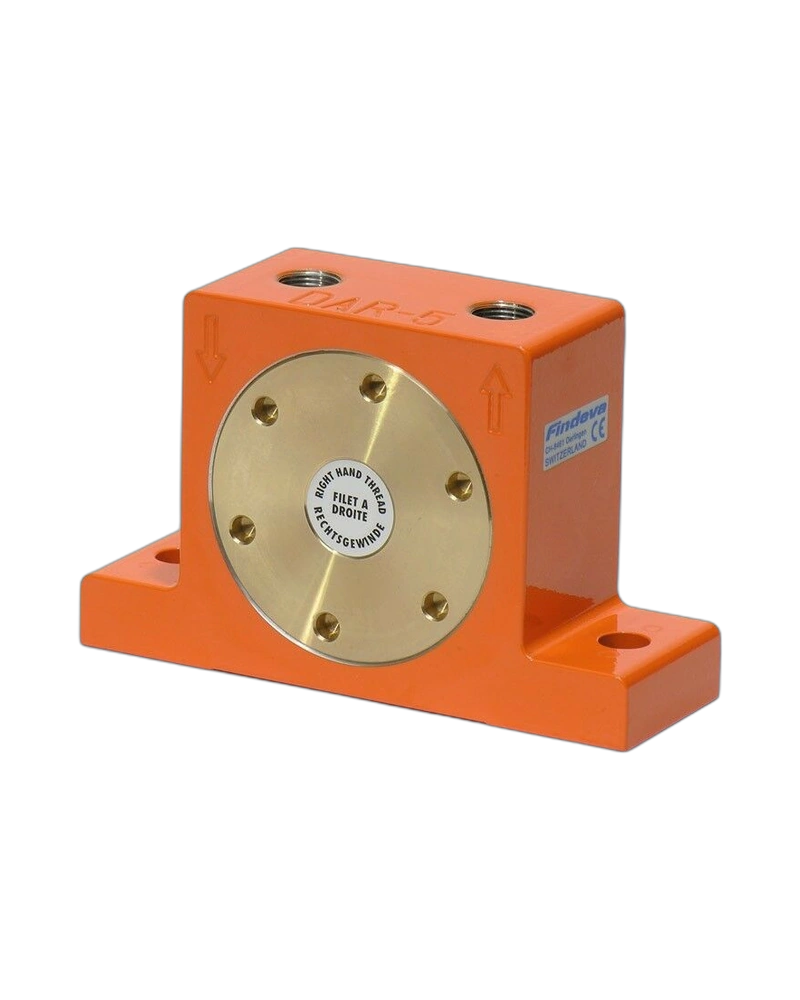

The DAR-5 uses a rotating cast-steel roller running in highly flexible steel guides. The housing is made from extruded aluminium alloy and reinforced with shock-resistant bronze covers.
At 2, 4 and 6 bar the DAR-5 operates at 9.5, 15.0 and 16.5 ×10³ min⁻¹ and generates 1680, 4640 and 7200 N centrifugal force.
Published air consumption is 130, 270 and 390 l/min at 2, 4 and 6 bar.
| Brand | Findeva |
|---|---|
| Product family | DAR Roller Vibrator |
| Model | DAR-5 |
| Rated frequency @ 2 / 4 / 6 bar | 9.5 / 15.0 / 16.5 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 1680 / 4640 / 7200 N |
| Air consumption @ 2 / 4 / 6 bar | 130 / 270 / 390 l/min |
| Dimensions A / Width / C / D / E / F | 100 / 52 / 160 / 130 / 20 / 13 mm |
| Thread | G 3/8" |
| Weight | 2.45 kg |
| Maximum operating temperature | 150°C |
Compacting plastic and concrete, assisting material flow in silos and hoppers, and separating different-sized products on sieves.
The Roller Vibrators DAR-5 is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | DAR Roller Vibrator |
| Model | DAR-5 |
| Rated frequency @ 2 / 4 / 6 bar | 9.5 / 15.0 / 16.5 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 1680 / 4640 / 7200 N |
| Air consumption @ 2 / 4 / 6 bar | 130 / 270 / 390 l/min |
| Dimensions A / Width / C / D / E / F | 100 / 52 / 160 / 130 / 20 / 13 mm |
| Thread | G 3/8" |
| Weight | 2.45 kg |
| Maximum operating temperature | 150°C |
