Findeva DAR-4 is a heavy-duty pneumatic roller vibrator developed for applications requiring high centrifugal force, including concrete compaction and bulk-material flow. The model provides continuously variable vibration performance across the published 2, 4 and 6 bar operating points.

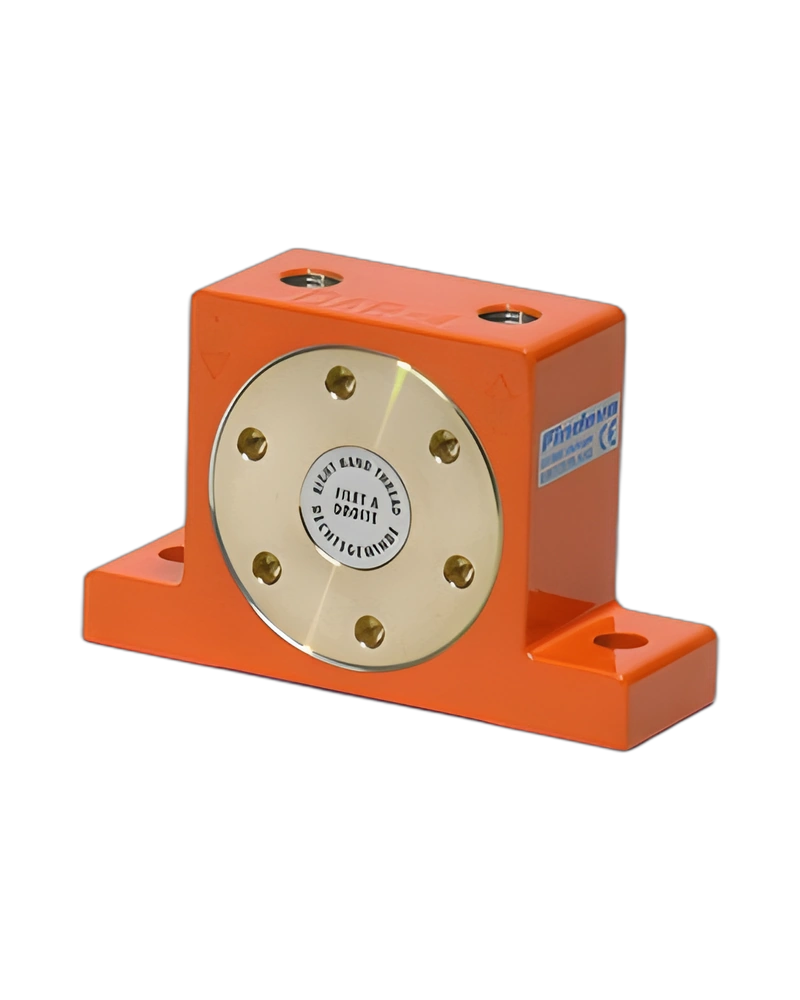

The DAR-4 uses a rotating cast-steel roller running in highly flexible steel guides. The housing is made from extruded aluminium alloy and reinforced with shock-resistant bronze covers.
At 2, 4 and 6 bar the DAR-4 operates at 18.0, 22.5 and 25.0 ×10³ min⁻¹ and generates 2360, 4610 and 6690 N centrifugal force.
Published air consumption is 120, 250 and 360 l/min at 2, 4 and 6 bar.
| Brand | Findeva |
|---|---|
| Product family | DAR Roller Vibrator |
| Model | DAR-4 |
| Rated frequency @ 2 / 4 / 6 bar | 18.0 / 22.5 / 25.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 2360 / 4610 / 6690 N |
| Air consumption @ 2 / 4 / 6 bar | 120 / 250 / 360 l/min |
| Dimensions A / Width / C / D / E / F | 80 / 40 / 128 / 104 / 16 / 11 mm |
| Thread | G 1/4" |
| Weight | 1.27 kg |
| Maximum operating temperature | 150°C |
Compacting plastic and concrete, assisting material flow in silos and hoppers, and separating different-sized products on sieves.
The Roller Vibrators DAR-4 is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | DAR Roller Vibrator |
| Model | DAR-4 |
| Rated frequency @ 2 / 4 / 6 bar | 18.0 / 22.5 / 25.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 2360 / 4610 / 6690 N |
| Air consumption @ 2 / 4 / 6 bar | 120 / 250 / 360 l/min |
| Dimensions A / Width / C / D / E / F | 80 / 40 / 128 / 104 / 16 / 11 mm |
| Thread | G 1/4" |
| Weight | 1.27 kg |
| Maximum operating temperature | 150°C |
