Explore performance details, construction highlights, applications, and technical information in one clear overview.

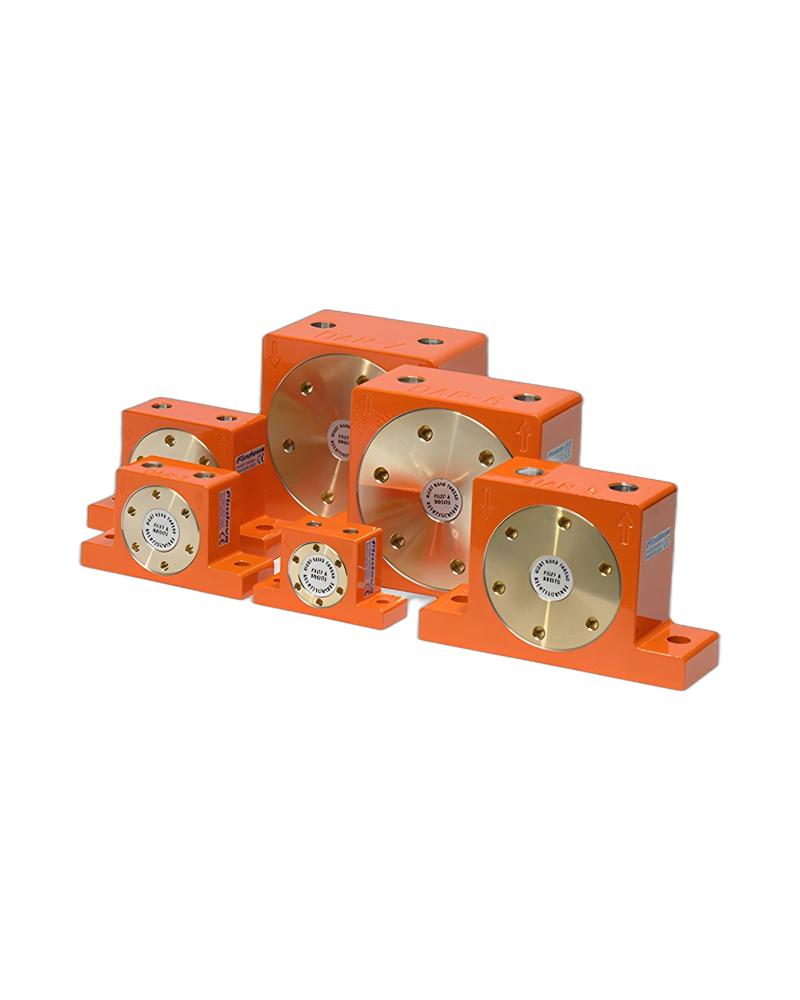

Findeva DAR-2 is a heavy-duty pneumatic roller vibrator developed for applications requiring high centrifugal force, including concrete compaction and bulk-material flow. The model provides continuously variable vibration performance across the published 2, 4 and 6 bar operating points.
The DAR-2 uses a rotating cast-steel roller running in highly flexible steel guides. The housing is made from extruded aluminium alloy and reinforced with shock-resistant bronze covers.
At 2, 4 and 6 bar the DAR-2 operates at 36.0, 37.0 and 38.0 ×10³ min⁻¹ and generates 2200, 3880 and 4090 N centrifugal force.
Published air consumption is 70, 140 and 200 l/min at 2, 4 and 6 bar.
| Brand | Findeva |
|---|---|
| Product family | DAR Roller Vibrator |
| Model | DAR-2 |
| Rated frequency @ 2 / 4 / 6 bar | 36.0 / 37.0 / 38.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 2200 / 3880 / 4090 N |
| Air consumption @ 2 / 4 / 6 bar | 70 / 140 / 200 l/min |
| Dimensions A / Width / C / D / E / F | 50 / 30 / 86 / 68 / 12 / 7 mm |
| Thread | G 1/8" |
| Weight | 0.37 kg |
| Maximum operating temperature | 150°C |
Compacting plastic and concrete, assisting material flow in silos and hoppers, and separating different-sized products on sieves.
The Roller Vibrators DAR-2 is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | DAR Roller Vibrator |
| Model | DAR-2 |
| Rated frequency @ 2 / 4 / 6 bar | 36.0 / 37.0 / 38.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 2200 / 3880 / 4090 N |
| Air consumption @ 2 / 4 / 6 bar | 70 / 140 / 200 l/min |
| Dimensions A / Width / C / D / E / F | 50 / 30 / 86 / 68 / 12 / 7 mm |
| Thread | G 1/8" |
| Weight | 0.37 kg |
| Maximum operating temperature | 150°C |
