Product Overview

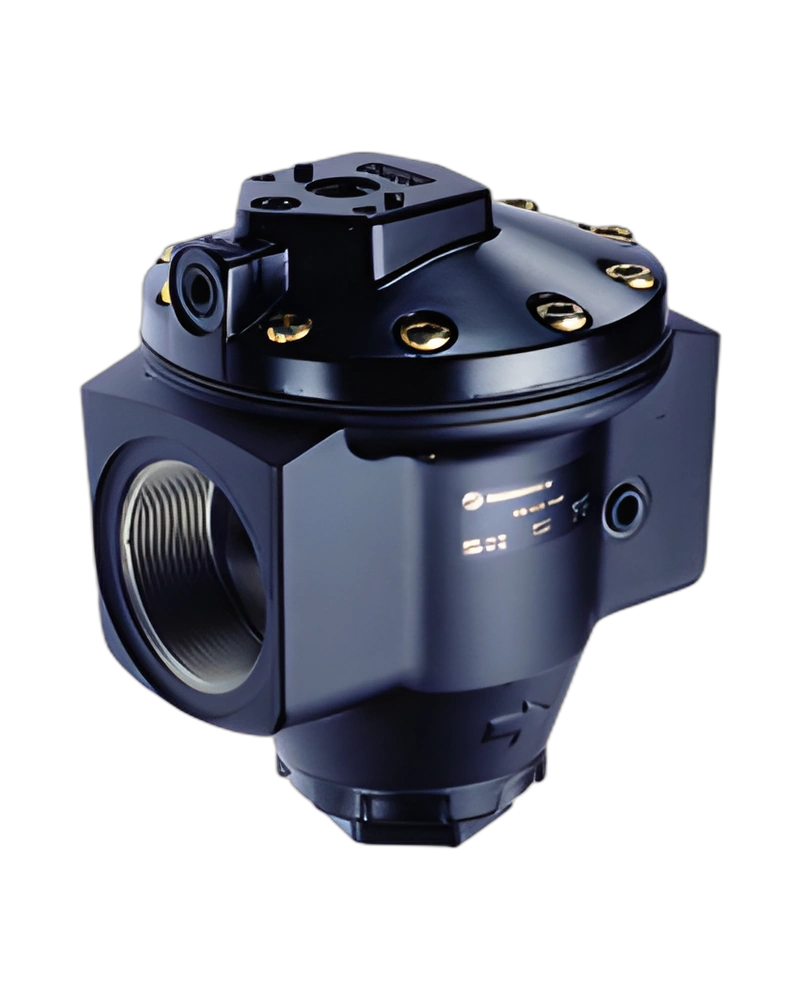

R18-C00-RNXG is a NORGREN R18 Series pilot pressure regulator, G2, without gauge configuration. This product page brings together the supplied configuration details and technical characteristics for this exact listed model, with the stated values retained for product selection and ordering.

Configuration and Selection

The configuration is defined by Medium: Compressed air; Country of Origin: Mexico; Range: R18. These values describe the selected arrangement and help distinguish this product from other variants within the range.

Operating Characteristics

The operating characteristics include Port Size: G2; Outlet Pressure Adjustment: 0.16 ... 17 bar, 2.3 ... 246 psi; Operating Temperature: -20 ... 80 °C, -4 ... 176 °F; Gauge Port: Rc1/4; Adjustment: Air pilot operated; Maximum Inlet Pressure: 31 bar, 450 psi; Relieving/Non-Relieving: Relieving; Flow: 944 dm3/s, 2000 scfm. The supplied pressure, temperature, flow, media, drain, port and adjustment information is presented as stated for this configuration.

Construction and Materials

The construction information specifies Materials - Body: Aluminium alloy; Materials - Bonnet: Aluminium alloy; Materials - Elastomers: Nitrile rubber (NBR). These entries describe the stated product materials and component details without adding unsupported compatibility or durability claims.

Dimensions and Product Data

Additional product data includes Dimensions - Height: 140 mm; Dimensions - Length: 184 mm; Dimensions - Width: 152 mm; Weight: 2.99 kg. These values form part of the exact product configuration and provide useful catalogue information for selection.

Product Information

Languages 0 Basket Products Industries

Technical Specification Summary

Medium is specified as Compressed air. Port Size is specified as G2. Outlet Pressure Adjustment is specified as 0.16 ... 17 bar, 2.3 ... 246 psi. Operating Temperature is specified as -20 ... 80 °C, -4 ... 176 °F. Gauge Port is specified as Rc1/4. Adjustment is specified as Air pilot operated. Maximum Inlet Pressure is specified as 31 bar, 450 psi. Relieving/Non-Relieving is specified as Relieving. Flow is specified as 944 dm3/s, 2000 scfm. Materials - Body is specified as Aluminium alloy. Materials - Bonnet is specified as Aluminium alloy. Materials - Elastomers is specified as Nitrile rubber (NBR). Dimensions - Height is specified as 140 mm. Dimensions - Length is specified as 184 mm. Dimensions - Width is specified as 152 mm. Weight is specified as 2.99 kg. Country of Origin is specified as Mexico. Range is specified as R18.
