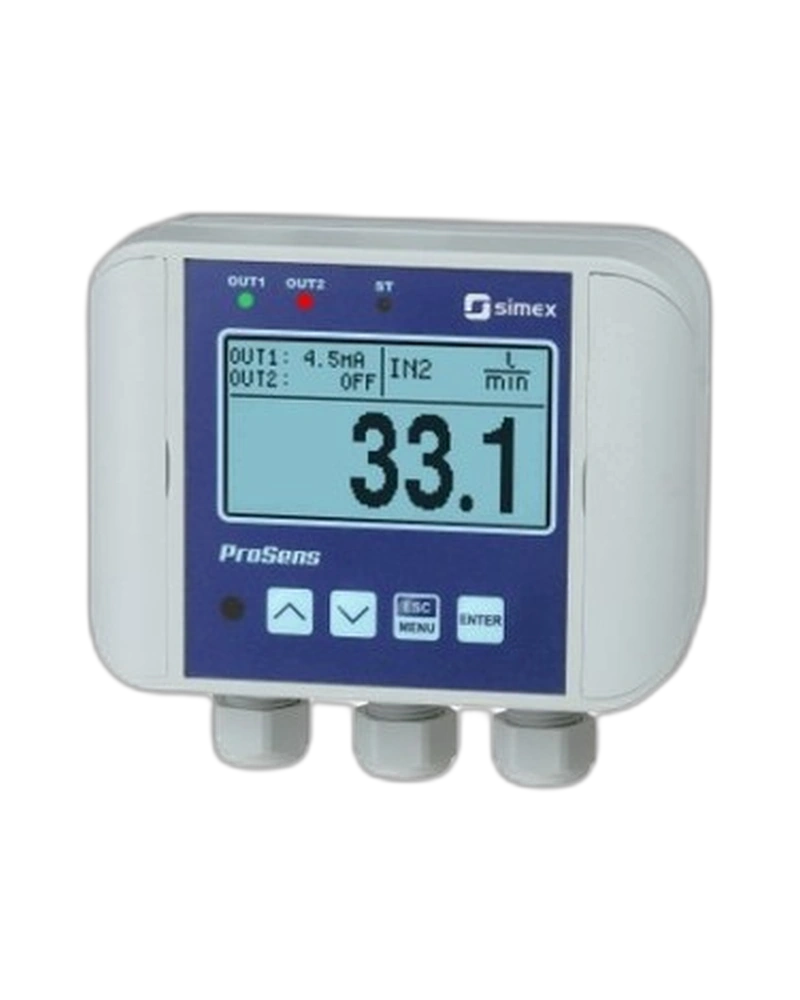

ProSens QM-100

ProSens QM-100 is a SIMEX industrial measurement and control solution designed for dependable integration into process monitoring and automation systems. Its configuration brings together practical measurement, indication, signal handling and control functions in a format suited to industrial use.

Flexible Measurement and Input Capability

ProSens QM-100 supports flexible signal handling for applications where different process, electrical or temperature signals need to be brought into one instrument. The available input configuration includes No probe; DIN-rail version; No probe; universal electrical/temperature input architecture; Universal input; and 0/4...20 mA; 0...60/75/100/150 mV; 0/1...5 V; 0/2...10 V; Pt100/Pt500/Pt1000: -100...+600 °C; TC K: -200...+1370 °C; S: -50...+1768 °C; J: -210...+1200 °C; T: -200...+400 °C; N: -200...+1300 °C; R: -50...+1768 °C; B: +250...+1820 °C; E: -200...+1000 °C. This flexibility helps simplify instrument selection when a system requires multiple signal types or ranges.

Reliable Outputs and Control

For integration with external equipment, ProSens QM-100 provides defined output and control capabilities. The available configuration includes 24 V AC / 35 V DC, max. 200 mA; active 0/4...20 mA: 0...24 mA max., 700 Ω max., 13-bit; passive 4...20 mA isolated: 2.8...24 mA max., 600 Ω at 24 V DC, 13-bit; active 0/1...5 V or 0/2...10 V: 0...11 V max., minimum 2000 Ω, 13-bit and 11...36 V DC; 16...36 V DC when 0...10 V output is used. These options allow measured values and control states to be connected to the wider automation system according to the selected configuration.

Clear Indication and Industrial Communication

The ProSens QM-100 combines local indication with communication capabilities where provided by the configuration. Available details include no display or optional LCD, 128 × 64 pixels, graphic, with backlight; RS-485 / Modbus RTU; 1200...115200 bit/s; 8N1 / 8N2; and Optional 2.9-inch graphic LCD, 128 × 64 points, with backlight. This makes the instrument suitable for installations where operators need clear local information while the device also exchanges data with a control or monitoring system.

Configurable Functions

Configuration and signal-processing functions give ProSens QM-100 additional flexibility beyond basic indication. Its listed capabilities include polycarbonate / ASA LURAN; A+B, A-B, (A+B)/2 and dew point; and Free S-Config configuration software. These functions can help adapt the instrument to the required measurement method, display behaviour and operating workflow without changing the underlying product platform.

Power, Protection and Construction

The physical and electrical design of ProSens QM-100 is defined by its available power supply, environmental and construction characteristics. The listed configuration includes -30...+80 °C for the electronics case; IP65 / IP67; wall, except QM-100 which is DIN rail; and 120 × 90 × 50 mm. These details provide the information needed to assess compatibility with the intended installation environment and system requirements.

Key Product Benefits

• No probe; DIN-rail version.
• Universal current, voltage, millivolt, RTD and thermocouple inputs.
• 0, 1 or 2 electronic normally-open relay outputs depending on configuration.
• 0, 1 or 2 active or passive analogue outputs depending on configuration.
• RS-485 / Modbus RTU, 1200...115200 bit/s.
• A+B, A-B, (A+B)/2 and dew-point mathematical functions.
• Optional 2.9-inch 128 × 64 pixel graphic LCD with backlight.

Designed for Industrial Integration

ProSens QM-100 is suited to installations where dependable measurement, clear indication and straightforward integration are important. Its combination of signal capabilities, configurable functions, outputs and interface options provides a practical platform for connecting measurement tasks with industrial monitoring and automation equipment.

Technical Information

Detailed model information is provided in the specification and feature tables, including available signal ranges, outputs, communication interfaces, functions, power requirements and construction details. Review the tables for the exact configuration and technical values of ProSens QM-100.
