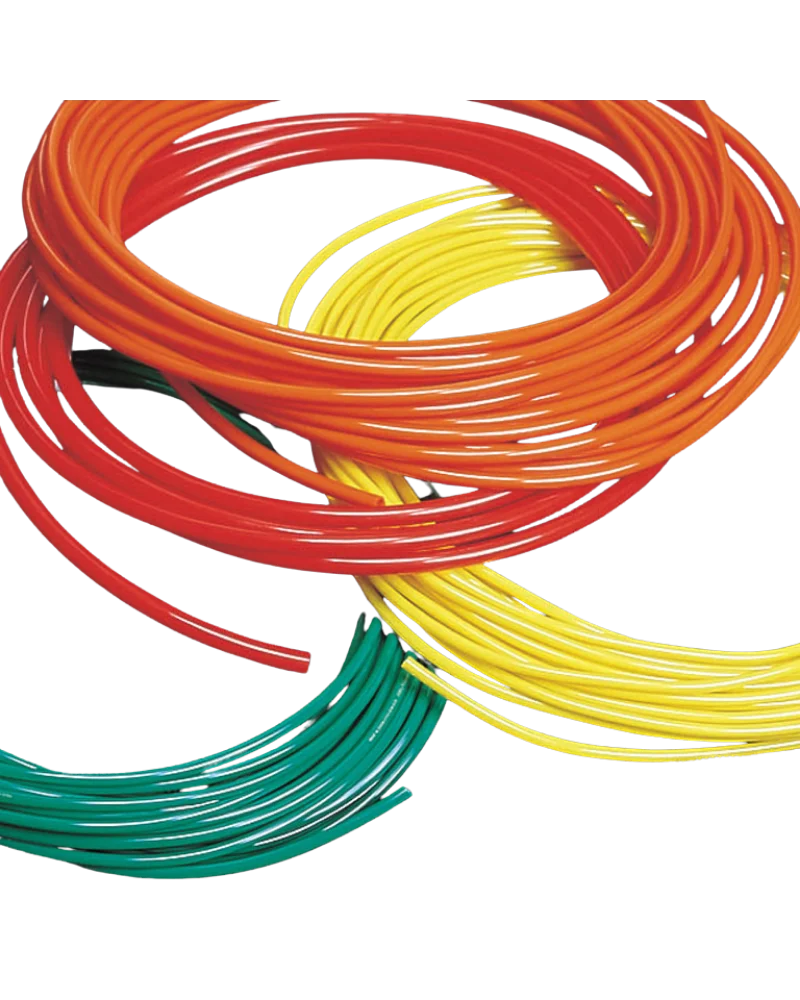

The Polyurethane Tube is a flexible, ether-based piping solution designed for compact and efficient fluid transport in industrial and commercial applications. It can carry both air and water, making it ideal for systems requiring versatile medium handling without the need for separate pipe types.
Constructed from ether-based polyurethane, this tubing offers excellent water resistance and maintains structural integrity under a range of environmental conditions. The material is inherently flexible, enabling easy routing in tight spaces while retaining durability during use.
The tube features standardized connection points that allow for seamless integration with compatible components. When paired with a Color Cap, the tubing can be identified by color to prevent mis-piping—ensuring correct installation and system reliability.
Operating characteristics include a maximum operating pressure of 1.0MPa at 65% RH and 20°C, and a maximum vacuum capacity of -100kPa. For air, the operating temperature range is from -20°C to 70°C; for water, it ranges from -15°C to 60°C—both conditions avoid freezing and ensure safe operation in varying climates.
Available in 14 sizes ranging from φ1.8 mm to φ16 mm, including inch sizes, the tubing offers a wide range of diameters to suit diverse application needs. A total of 10 colors are available, allowing users to match tube color with device finishes or use color-coding for system identification.
Cut marks are printed at approximately 500 mm intervals along the tube length to assist in cutting operations. These marks serve as a guide only and do not guarantee precision. For lengths exceeding standard packaging, make-to-order options are available upon request.
| Specification | Details |
|---|---|
| Fluid medium | Air, Water (Conditional *1) |
| Max. operating pressure (65%RH at 20ºC) | 1.0MPa *2 |
| Max. vacuum | -100kPa |
| Operating temperature range | Air: -20 to 70ºC (No freezing)/ Water: -15 to 60ºC (No freezing) |
| Available options | Excellent flexibility for compact piping. Ether-based polyurethane tubing with excellent water resistance. Available in 10 colors and 14 sizes | Available in 14 sizes, from an ultra-small diameter of φ1.8 mm up to φ16 mm, including inch sizes |
