Explore performance details, construction highlights, applications, and technical information in one clear overview.

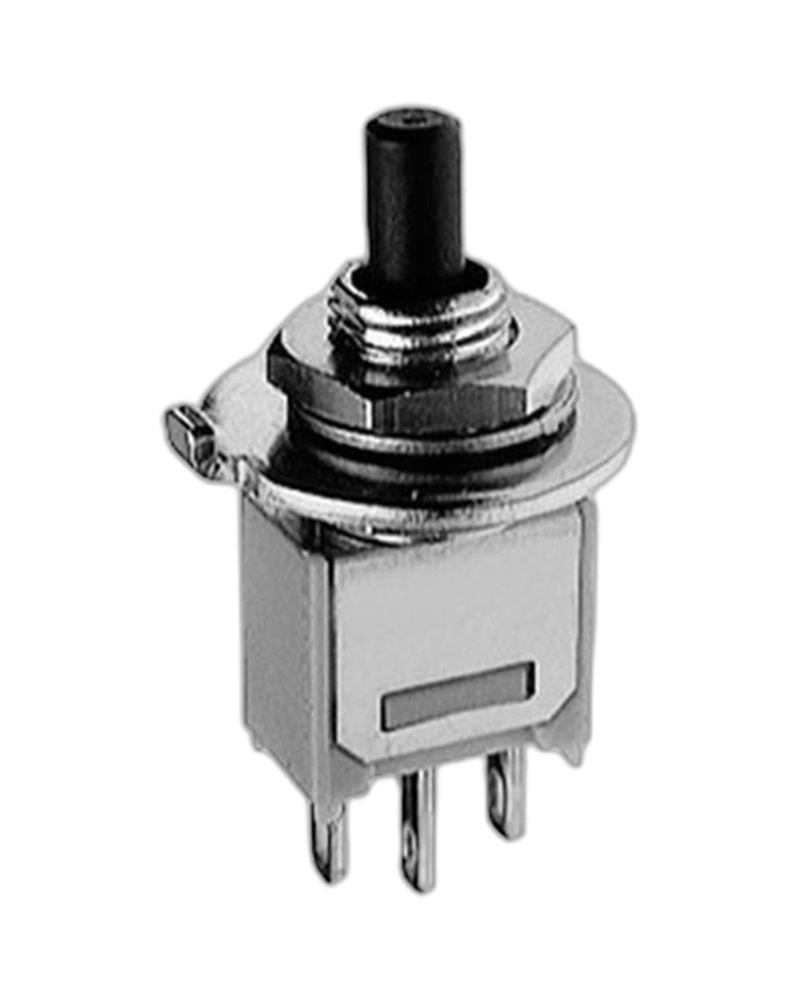

The APEM Panel Switches ZP33S030100 is a Switches and Pushbutton with documented product-specific characteristics including Number Of Poles: Single Pole; Electrical Functions: OFF,Contact Materials:Brass (Gold-Plated),Model:Standard; panel thickness: 1,5 mm (.059) with 2 nuts.
| Feature | Specification |
|---|---|
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4VA 20V max |
| Contact resistance | 50 mΩ max. |
| Feature | Specification |
|---|---|
| panel thickness | 1,5 mm (.059) with 2 nuts |
| Operating temperature | -30°C to +85°C |
| terminals | pull-out force 10N max. |
| Torque | 1Nm max. applied between the 2 nuts Max. |
| Feature | Specification |
|---|---|
| Force | 10N |
| Feature | Specification |
|---|---|
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4VA 20V max |
| Feature | Specification |
|---|---|
| panel thickness | 1,5 mm (.059) with 2 nuts |
| Operating temperature | -30°C to +85°C |
| Torque | 1Nm max. applied between the 2 nuts Max. |
| Feature | Specification |
|---|---|
| Electrical Functions | OFF,Contact Materials:Brass (Gold-Plated),Model:Standard |
