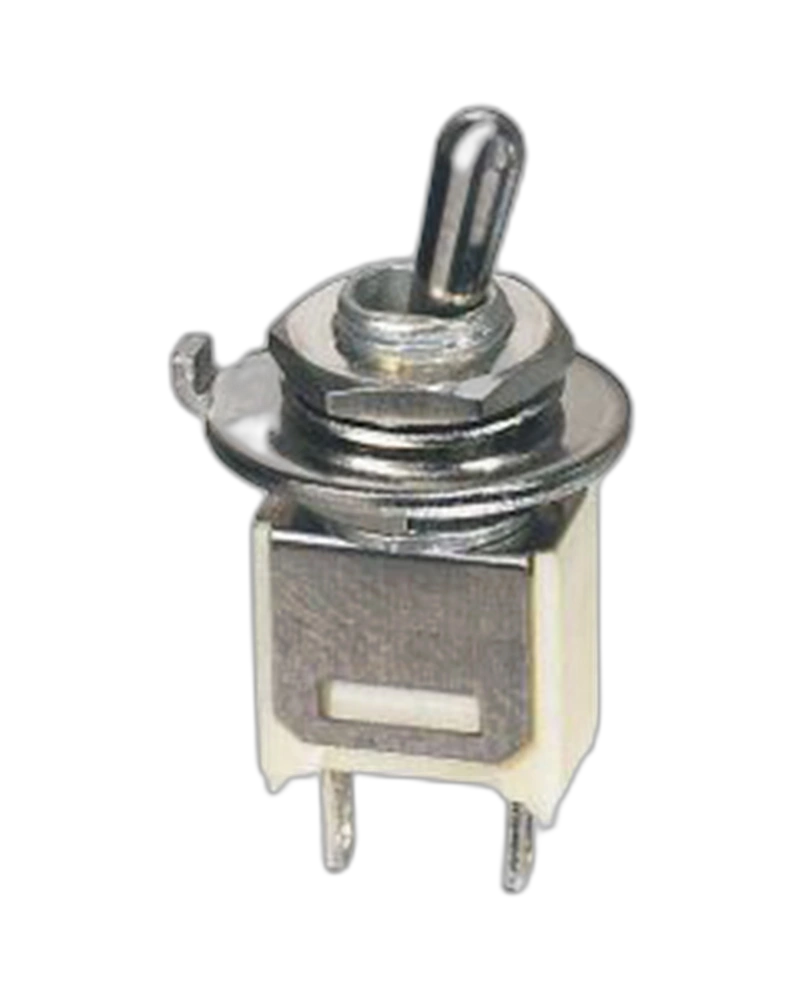

The APEM Panel Switches-ZL is a Switches and Pushbutton with documented product-specific characteristics including terminals: pull-out force 10 N max.; Torque: 1 Nm max. applied between the 2 nuts Max.; panel thickness: 1.5 mm (.059) with 2 nuts Hand soldering : 280 °C max. for 5 seconds max. Wave soldering : 260 °C max. for 5 seconds max. Hand soldering : 280 °C max. for 5 seconds max. Wave soldering : 260 °C max. for 5 seconds max. Wa.
ZL ZL38P010100 Select Quantity
| Feature | Specification |
|---|---|
| Force | 10 N |
| Minimum load | 10 mA 50 mV - 10 µA 5 VDC |
| Feature | Specification |
|---|---|
| Torque | 1 Nm max. applied between the 2 nuts Max. |
| panel thickness | 1.5 mm (.059) with 2 nuts Hand soldering : 280 °C max. for 5 seconds max. Wave soldering : 260 °C max. for 5 seconds max. Hand soldering : 280 °C max. for 5 seconds max. Wave soldering : 260 °C max. for 5 seconds max. Wa |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals and frame, 500 Vrms 50 Hz min. between terminals Minimum load : 10 mA 50 mV - 10 µA 5 VDC |
| Operating temperature | -30 °C to +85 °C Moisture : 21 days 95 % (NFC 20-603 - IEC 8-2-3) Moisture : 21 days 95 % (NFC 20-603 - IEC 8-2-3) Ø 4.83 mm threaded bushing Solder lug and straight PC terminals Solder lug and straight PC terminals |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4 VA 20 V max |
| Feature | Specification |
|---|---|
| Minimum load | 10 mA 50 mV - 10 µA 5 VDC |
