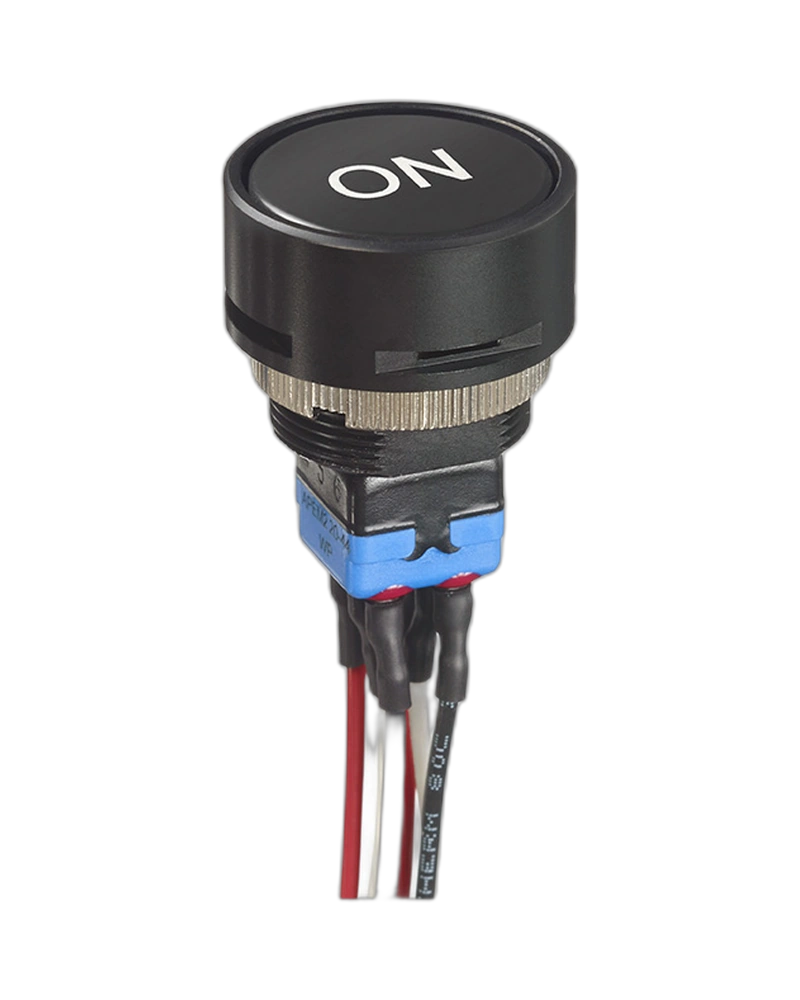

WPS456G04 The WPS456G04 Panel Switch features a double pole design with ON MOM functionality, offering durability and ease of use for industrial, automotive, and consumer applications. Select Quantity
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Operating temperature | -40 °C to +85 °C (-40°F to +185°F) Front Panel |
| sealing | IP67 and IP69K according to DIN 40050-9 Front Panel |
| panel thickness | 2 mm (.078) max |
| Total travel | 2 mm (.078) Standard |
| Insulation resistance | 1000MΩ min at 500VDC Dielectrical strength : - 1000Vrms 50Hz min. between terminals- 2000Vrms 50Hz min between poles- 2000Vrms 50Hz min. between terminals and frame Contact bounce : 2ms max Electrical life - Silver conta |
| Torque | 1.25Nm (.922 FT.lb) max applied to nut Standard |
| Electrical Functions | ON MOM |
