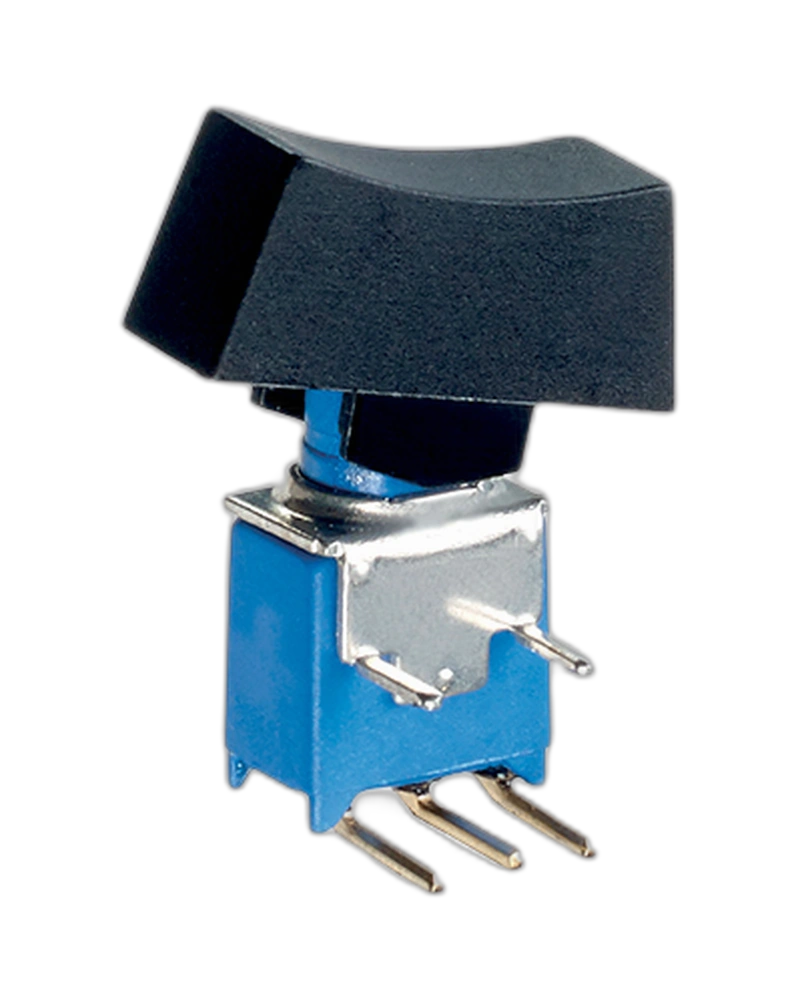

The APEM Panel Switches TR49WW1000820 is a robust double-pole switch designed for industrial applications. Featuring gold-plated contacts, it delivers reliable operation with a dielectric strength of 1.000 Vrms 50 Hz min. between terminals and frame, and a minimum load of 10mA 50mV - 10μA 5VDC. This switch operates within a wide temperature range of -30°C to +85°C, making it suitable for demanding environments.
The APEM Panel Switches TR49WW1000820 is a high-performance double-pole switch engineered for industrial control systems. With gold-plated contacts and a dielectric strength of 1.000 Vrms 50 Hz min. between terminals and frame, it ensures reliable electrical isolation even under demanding conditions. The switch operates within a temperature range of -30°C to +85°C and meets stringent moisture resistance standards (21 days at 95% humidity, per NFC 20-603 - IEC 68-2-3). Its extended terminals and large rock design facilitate secure mounting and robust performance in high-vibration environments, while maintaining a contact resistance of 20 mΩ max. and an insulation resistance of 1.000 MΩ min. at 500VDC.
The TR49WW1000820 delivers reliable electrical switching with a dielectric strength of 1.000 Vrms 50 Hz min. between terminals and frame, ensuring robust isolation. It supports a minimum load of 10mA 50mV - 10μA 5VDC and maintains an insulation resistance of 1.000 MΩ min. at 500VDC. The switch operates within a wide temperature range of -30°C to +85°C, making it suitable for extreme environmental conditions.
Engineered for harsh industrial environments, the TR49WW1000820 withstands moisture exposure for 21 days at 95% humidity (per NFC 20-603 - IEC 68-2-3). Its robust construction ensures reliable performance in high-vibration settings, with a temperature range of -30°C to +85°C.
The switch features extended terminals and large rock design for secure mounting. It requires a force of 10N for operation and is designed for right-angle vertical mounting, ensuring stability in industrial panels.
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals Minimum load : 10mA 50mV - 10μA 5VDC |
| Operating temperature | -30°C to +85°C Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Strength of |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4VA 20V max |
| Electrical functions | ON OFF ON,Poles:Double Pole |
| Feature | Specification |
|---|---|
| Minimum load | 10mA 50mV - 10μA 5VDC |
The APEMPanel Switches TR49WW1000820 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals Minimum load : 10mA 50mV - 10μA 5VDC |
| Operating temperature | -30°C to +85°C Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Strength of |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4VA 20V max |
| Electrical functions | ON OFF ON,Poles:Double Pole |
| Feature | Specification |
|---|---|
| Minimum load | 10mA 50mV - 10μA 5VDC |
