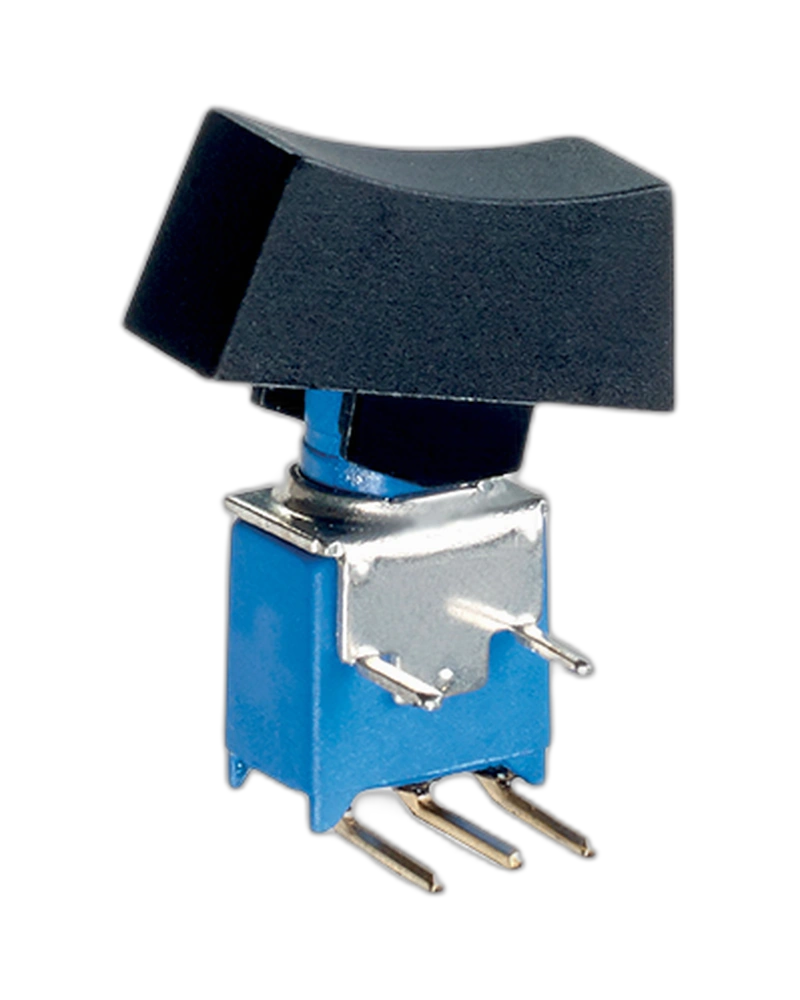

The TR39WW9001810 PCB Switch features ON OFF ON functionality for efficient electrical control. Designed for right-angle vertical mounting, it ensures easy installation and space optimisation. Select Quantity
| Feature | Specification |
|---|---|
| Force | 10N |
| Minimum load | 10mA 50mV - 10μA 5VDC |
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals Minimum load : 10mA 50mV - 10μA 5VDC |
| Operating temperature | -30°C to +85°C Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Strength of |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4VA 20V max |
| Electrical Functions | ON OFF ON,Poles:Single Pole |
| Feature | Specification |
|---|---|
| Minimum load | 10mA 50mV - 10μA 5VDC |
