Explore performance details, construction highlights, applications, and technical information in one clear overview.

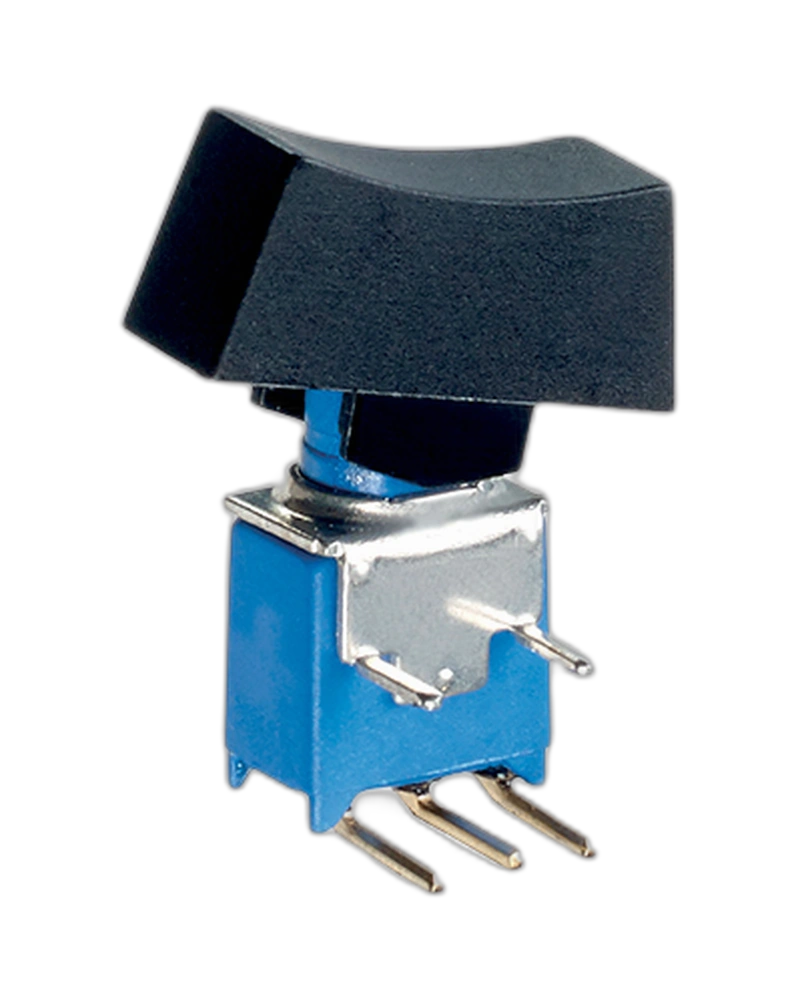

The APEM Panel Switches TR39W03002510 is a Switches and Pushbutton with documented product-specific characteristics including terminals: pull-out force - 10N max. Cleaning : solvents or water + detergent Wave soldering : 260°C - 5 sec. Cleaning : solvents or water + detergent Wave soldering : 260°C - 5 sec. Wave soldering : 260°C - 5 sec. Nov 6, 2025 · Di; Dielectric strength: 1.000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals Minimum load : 10mA 50mV - 10μA 5VDC; Operating temperature: -30°C to +85°C Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Strength of.
TR39W03002510 Select Quantity
| Feature | Specification |
|---|---|
| Force | 10N |
| Minimum load | 10mA 50mV - 10μA 5VDC |
| Feature | Specification |
|---|---|
| terminals | pull-out force - 10N max. Cleaning : solvents or water + detergent Wave soldering : 260°C - 5 sec. Cleaning : solvents or water + detergent Wave soldering : 260°C - 5 sec. Wave soldering : 260°C - 5 sec. Nov 6, 2025 · Di |
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals Minimum load : 10mA 50mV - 10μA 5VDC |
| Operating temperature | -30°C to +85°C Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Strength of |
| Options | Trimmed Terminals 5mm (0.198in) |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4VA 20V max |
| Electrical functions | ON OFF ON,Poles:Single Pole |
| Feature | Specification |
|---|---|
| Minimum load | 10mA 50mV - 10μA 5VDC |
