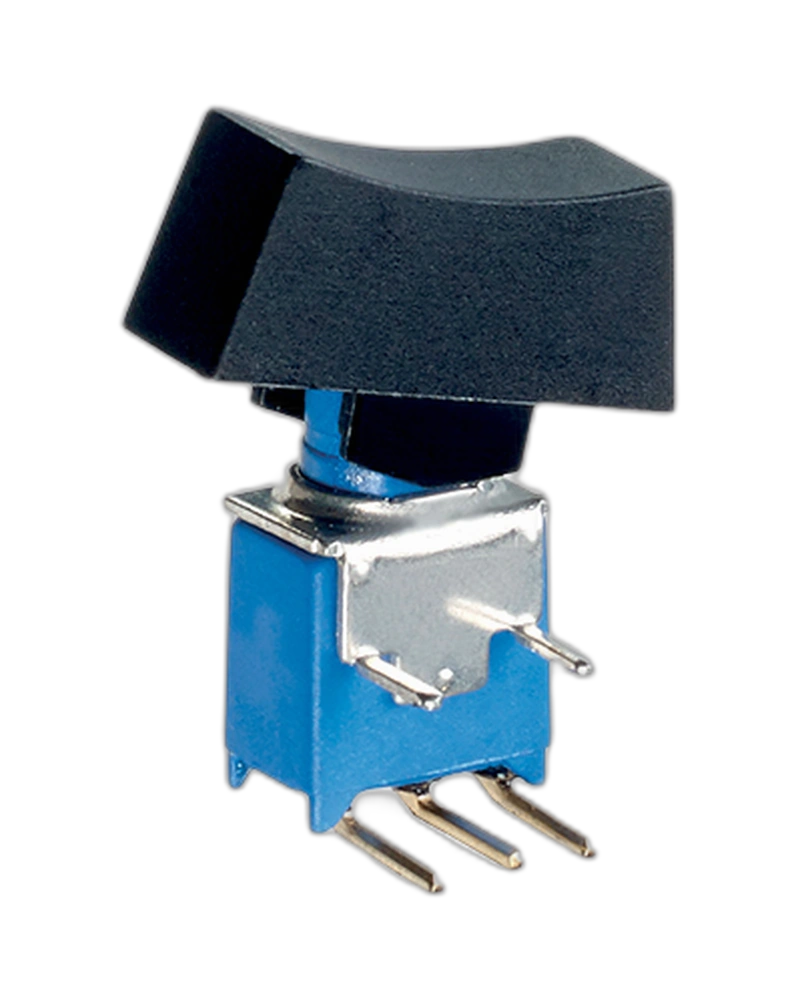

The TR37Y09000020 PCB Switch features a MOM OFF MOM design, high-quality terminals, and a bracket mount for easy installation and reliable electrical performance. Select Quantity
| Feature | Specification |
|---|---|
| Force | 10N |
| Minimum load | 10mA 50mV - 10μA 5VDC |
| Feature | Specification |
|---|---|
| terminals | pull-out force - 10N max. Cleaning : solvents or water + detergent Wave soldering : 260°C - 5 sec. Cleaning : solvents or water + detergent Wave soldering : 260°C - 5 sec. Wave soldering : 260°C - 5 sec. |
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals Minimum load : 10mA 50mV - 10μA 5VDC |
| Operating temperature | -30°C to +85°C Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Strength of |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4VA 20V max |
| Electrical Functions | MOM OFF MOM,Poles:Single Pole |
| Options | No Special Requirement |
| Feature | Specification |
|---|---|
| Minimum load | 10mA 50mV - 10μA 5VDC |
