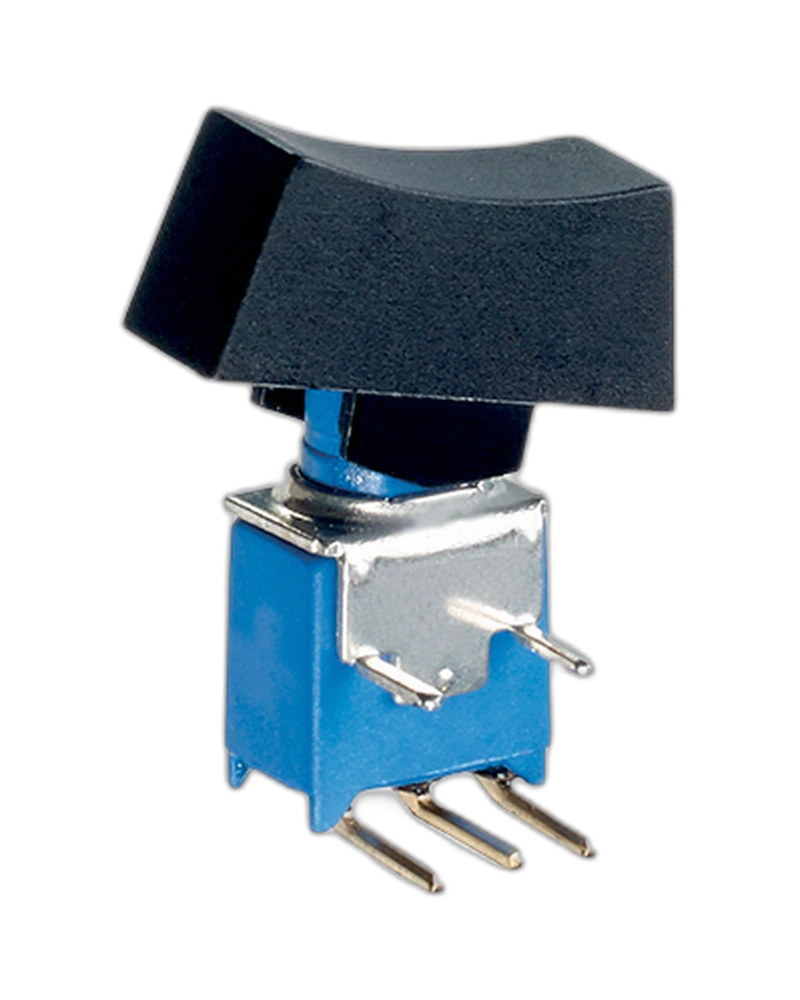

TR37W01005010 Versatile PCB switch TR37W01005010 with MOM OFF MOM functionality and right-angle mounting terminals for easy installation and secure connections. Upgrade your electrical system today! Select Quantity
| Feature | Specification |
|---|---|
| Force | 10N |
| Minimum load | 10mA 50mV - 10μA 5VDC |
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals Minimum load : 10mA 50mV - 10μA 5VDC |
| Operating temperature | -30°C to +85°C Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Strength of |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4VA 20V max |
| Electrical Functions | MOM OFF MOM,Poles:Single Pole |
| Feature | Specification |
|---|---|
| Minimum load | 10mA 50mV - 10μA 5VDC |
