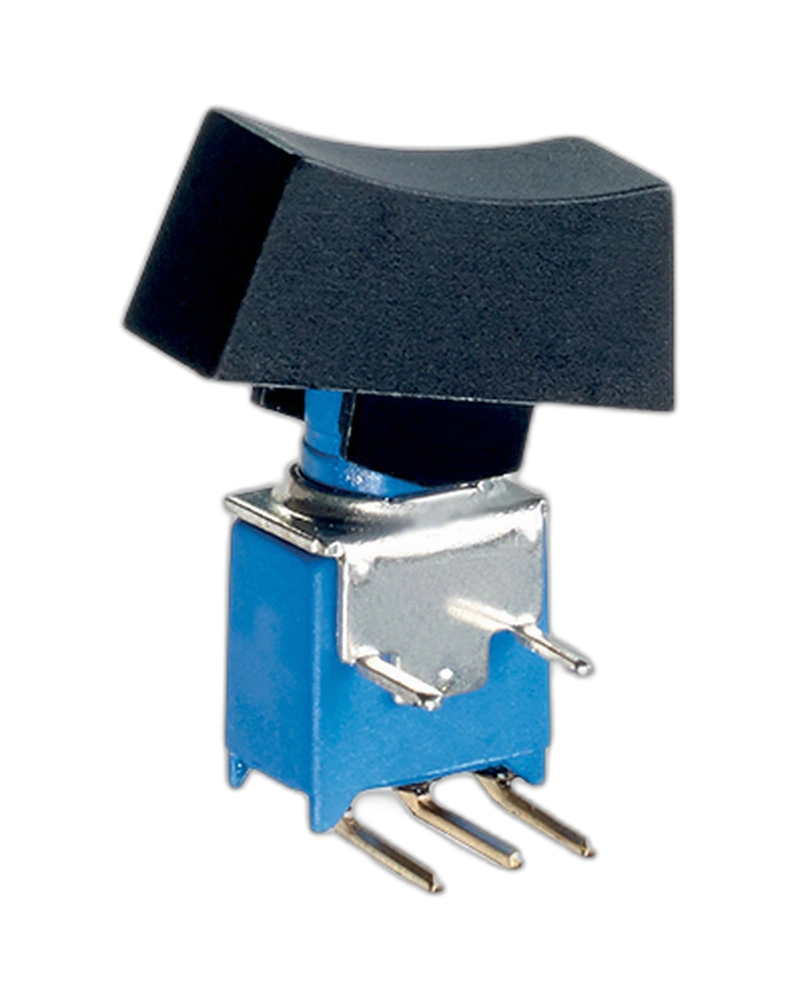

The APEM Panel Switches TR36WW0002520 is a robust single-pole autoswitch designed for industrial applications. Featuring gold-plated contacts, it delivers reliable operation with a dielectric strength of 1.000 Vrms 50 Hz min. between terminals and frame, and a contact resistance of 20 mΩ max. This switch operates within a wide temperature range of -30°C to +85°C, making it suitable for demanding environments.
The APEM Panel Switches TR36WW0002520 is a single-pole autoswitch engineered for industrial use, combining high reliability with precise electrical performance. With gold-plated contacts, this switch ensures low contact resistance (20 mΩ max) and excellent durability under varying environmental conditions. Its robust construction supports operation across extreme temperatures (-30°C to +85°C) and high dielectric strength (1.000 Vrms 50 Hz min. between terminals and frame), making it ideal for applications requiring consistent performance in harsh industrial settings.
The TR36WW0002520 delivers precise electrical performance with a dielectric strength of 1.000 Vrms 50 Hz min. between terminals and frame, ensuring reliable isolation under standard electrical conditions. Its insulation resistance of 1.000 MΩ min. at 500VDC provides robust protection against leakage currents, while the contact resistance remains below 20 mΩ max for efficient current flow. The switch supports a minimum load of 10mA 50mV - 10μA 5VDC, ensuring compatibility with a wide range of low-power circuits.
Engineered for extreme conditions, this panel switch operates within a temperature range of -30°C to +85°C, accommodating both freezing and high-heat environments. The product meets moisture resistance standards of 21 days at 95% humidity (NFC 20-603 - IEC 68-2-3), ensuring long-term reliability in humid or wet industrial settings without compromising performance.
The switch features trimmed terminals with a 5mm (0.198in) right-angle vertical mounting design, optimized for secure installation in panel assemblies. Its robust construction includes a force requirement of 10N for reliable operation, ensuring consistent activation without excessive wear or damage during use.
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals Minimum load : 10mA 50mV - 10μA 5VDC |
| Operating temperature | -30°C to +85°C Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Strength of |
| Options | Trimmed Terminals 5mm (0.198in) |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4VA 20V max |
| Electrical Functions | ON ON,Poles:Single Pole |
| Feature | Specification |
|---|---|
| Minimum load | 10mA 50mV - 10μA 5VDC |
The APEMPanel Switches TR36WW0002520 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals Minimum load : 10mA 50mV - 10μA 5VDC |
| Operating temperature | -30°C to +85°C Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3) Strength of |
| Options | Trimmed Terminals 5mm (0.198in) |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | - gold plated contacts : 0,4VA 20V max |
| Electrical Functions | ON ON,Poles:Single Pole |
| Feature | Specification |
|---|---|
| Minimum load | 10mA 50mV - 10μA 5VDC |
