Panel Switches SY246CD-13

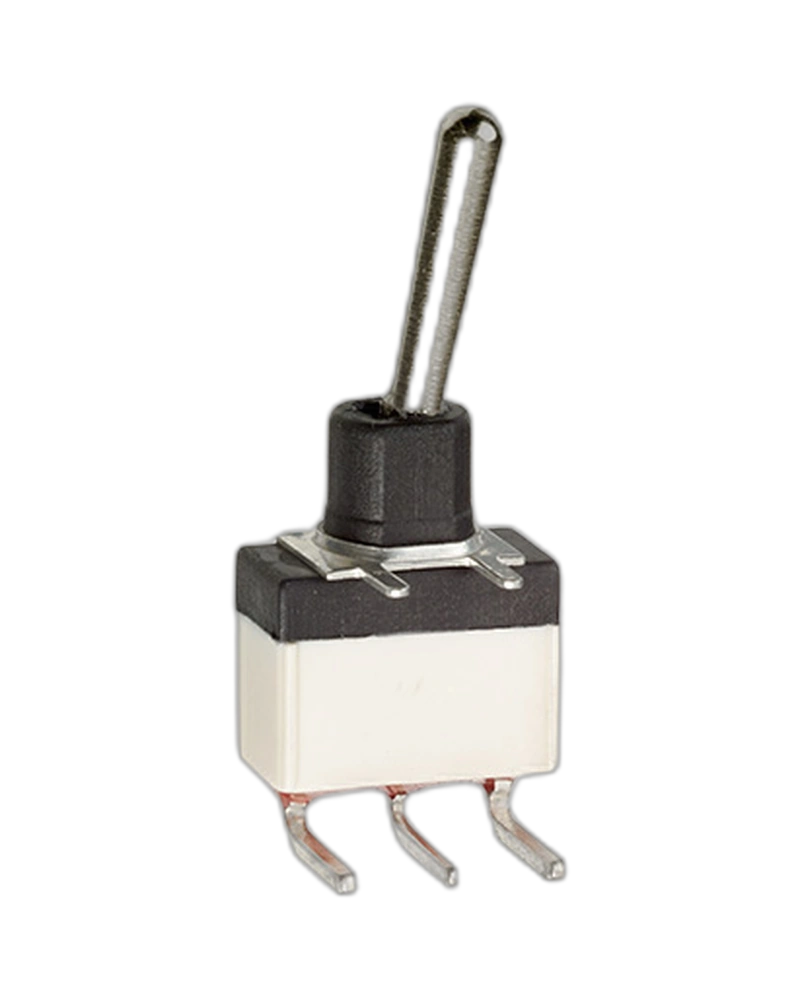

SY246CD-13 Mechanical strength : Terminals are strengthened by a bracket or a ground plate ensuring the rigidity of the switch on the board. Actuator strength is 10 N max. Soldering - thermal shock : The switches are especially designed for flow soldering at 260 °C (500 °F) during 5 seconds owing to high temperature polymer parts. S SY246CD-13 Mechanical strength : Terminals are strengthened by a bracket or a ground plate ensuring the rigidity of the switch on the board. Actuator strength is 10 N max. Soldering - thermal shock : The switches are especially designed for flow soldering at 260 °C (500 °F) during 5 seconds owing to high temperature polymer parts. S SY246A-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Double Pole SY246A-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Double Pole S SY239CD-7 Levers : Short Standard Terminals : Bracket Mounting Number Of Poles : Single Pole SY239CD-7 Levers : Short Standard Number Of Poles : Single Pole S SY239AD-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Single Pole SY239AD-13 S SY237CD-7 Mechanical strength : Terminals are strengthened by a bracket or a ground plate ensuring the rigidity of the switch on the board. Actuator strength is 10 N max. Soldering - thermal shock : The switches are especially designed for flow soldering at 260 °C (500 °F) during 5 seconds owing to high temperature polymer parts. SY237CD-7 S SY237CD-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Single Pole SY237CD-13 S SY237A-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Single Pole SY237A-13 S SY236CD-7 Levers : Short Standard Terminals : Bracket Mounting Number Of Poles : Single Pole SY236CD-7 S SY236CD-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Single Pole SY236CD-13 S SWW247CD-7 Levers : Short Standard Terminals : Right Angle Vertical Mounting Number Of Poles : Double Pole SWW247CD-7 Terminals : Right Angle Vertical Mounting S SWW237CD-7 Levers : Short Standard Terminals : Right Angle Vertical Mounting Number Of Poles : Single Pole SWW237CD-7 S SWW237CD-13 Levers : Long Terminals : Right Angle Vertical Mounting Number Of Poles :

Key Features

• Dielectric strength: 1.000 Vrms 50 Hz min.
• Operating temperature: -20°C to +85°C
• Storage temperature: -40 °C to +85 °C (-40 °F to +185 °F) Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Solderability : The switches are tested at 23
• Actuator: brass, nickel plated Contacts CD or 0 : brass, gold plated A or 1 : silver AD or 2 : silver, gold plated Terminal seal : epoxy Contacts CD or 0 : brass, gold plated A or 1 : silver AD or 2 : silver, gold plated Terminal
• Initial contact resistance: 10 mΩ max.
• Insulation resistance: 1.000 MΩ min.
• Max. current/voltage rating with resistive load: - silver contacts (A or 1) : 4A 30VDC - gold plated brass contacts (CD or 0) : 0,4VA 20VAC or DC - gold plated silver contacts (AD or 2) : 4A 30VDC (300mA 30VDC for gold plating)
• Process sealed Front and rear sealing Process compatible Wave solderable Washable
• Front and rear sealing Process compatible Wave solderable Washable
• Process compatible Wave solderable Washable
• Wave solderable Washable
• Washable

Technical Specifications
