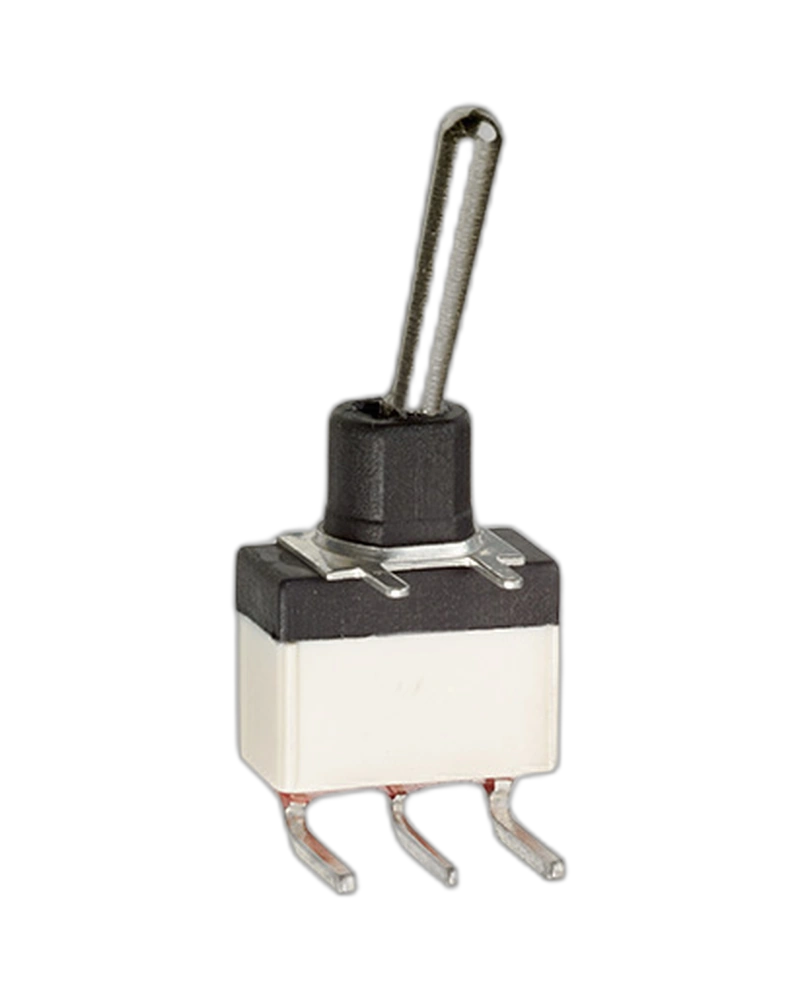

Panel Switches SY239AD-13

SY239AD-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Single Pole S SY239AD-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Single Pole S SY237CD-7 Mechanical strength : Terminals are strengthened by a bracket or a ground plate ensuring the rigidity of the switch on the board. Actuator strength is 10 N max. Soldering - thermal shock : The switches are especially designed for flow soldering at 260 °C (500 °F) during 5 seconds owing to high temperature polymer parts. SY237CD-7 Mechanical strength : Terminals are strengthened by a bracket or a ground plate ensuring the rigidity of the switch on the board. Actuator strength is 10 N max. Soldering - thermal shock : The switches are especially designed for flow soldering at 260 °C (500 °F) during 5 seconds owing to high temperature polymer parts. S SY237CD-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Single Pole SY237CD-13 S SY237A-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Single Pole SY237A-13 S SY236CD-7 Levers : Short Standard Terminals : Bracket Mounting Number Of Poles : Single Pole SY236CD-7 Levers : Short Standard S SY236CD-13 Levers : Long Terminals : Bracket Mounting Number Of Poles : Single Pole SY236CD-13 S SWW247CD-7 Levers : Short Standard Terminals : Right Angle Vertical Mounting Number Of Poles : Double Pole SWW247CD-7 Terminals : Right Angle Vertical Mounting Number Of Poles : Double Pole S SWW237CD-7 Levers : Short Standard Terminals : Right Angle Vertical Mounting Number Of Poles : Single Pole SWW237CD-7 S SWW237CD-13 Levers : Long Terminals : Right Angle Vertical Mounting Number Of Poles : Single Pole SWW237CD-13 S SWW236CD-8X696 Levers : Short Terminals : Right Angle Vertical Mounting Number Of Poles : Single Pole SWW236CD-8X696 Levers : Short S SWW236CD-7 Mechanical strength : Terminals are strengthened by a bracket or a ground plate ensuring the rigidity of the switch on the board. Actuator strength is 10 N max. Soldering - thermal shock : The switches are especially designed for flow soldering at 260 °C (500 °F) during 5 seconds owing to high temperature polymer parts. SWW236CD-7 S SWW236A-7 Levers : Short Standard Termin

Key Features

• Dielectric strength: 1.000 Vrms 50 Hz min.
• Operating temperature: -20°C to +85°C
• Storage temperature: -40°C to +85°C Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal
• Number Of Poles: Single Pole,Levers:Long,Terminal Spacing:4.7mm (0.185) or 3.81mm (0.150)
• Initial contact resistance: 10 mΩ max.
• Insulation resistance: 1.000 MΩ min.
• Max. current/voltage rating with resistive load: - silver contacts (A or 1) : 4A 30VDC- gold plated brass contacts (CD or 0) : 0,4VA 20VAC or DC- gold plated silver contacts (AD or 2) : 4A 30VDC (300mA 30VDC for gold plating)
• Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_S 16/08/2024
• Terminals: Bracket Mounting
• Electrical Functions: ON OFF ON
• Process sealed Front and rear sealing Process compatible Wave solderable Washable
• Front and rear sealing Process compatible Wave solderable Washable
• Process compatible Wave solderable Washable
• Wave solderable Washable
• Washable
