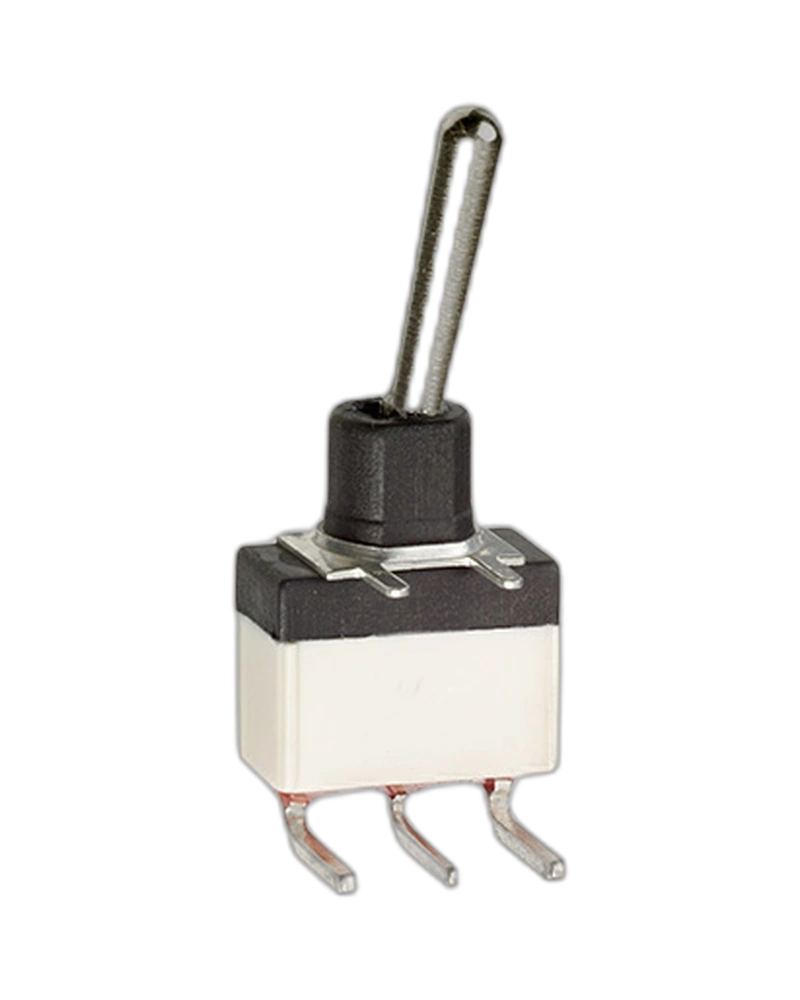

Panel Switches SY236CD-13
SY236CD-13 Versatile SY236CD-13 Panel Switch with bracket mount, single pole configuration, and long lever for easy operation. Ideal for controlling various electrical functions. Select Quantity
Key Features
- Storage temperature: -40°C to +85°C Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal
- Max. current/voltage rating with resistive load: - silver contacts (A or 1) : 4A 30VDC- gold plated brass contacts (CD or 0) : 0,4VA 20VAC or DC- gold plated silver contacts (AD or 2) : 4A 30VDC (300mA 30VDC for gold plating)
- Terminals: Bracket Mounting
- Electrical Functions: ON ON
- Process sealed Front and rear sealing Process compatible Wave solderable Washable
- Front and rear sealing Process compatible Wave solderable Washable
- Process compatible Wave solderable Washable
- Wave solderable Washable
- Washable
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. |
| Operating temperature | -20°C to +85°C |
| Number Of Poles | Single Pole,Levers:Long,Terminal Spacing:4.7mm (0.185) or 3.81mm (0.150) |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1.000 MΩ min. |
