Panel Switches SW249A-13

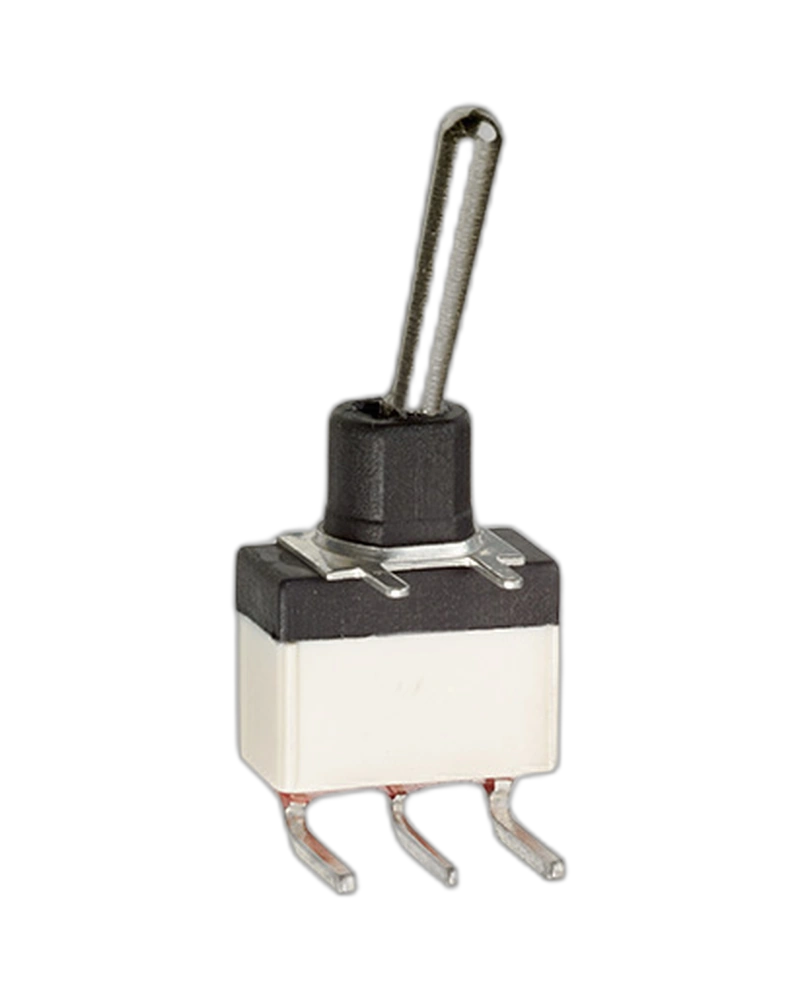

The SW249A-13 Panel Switch features a double pole configuration, ON OFF ON function, and long levers for smooth operation, ideal for tight spaces and various applications. Select Quantity
Key Features
- Dielectric strength: 1.000 Vrms 50 Hz min.
- Operating temperature: -20°C to +85°C
- Storage temperature: -40°C to +85°C Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal
- Number Of Poles: Double Pole,Contact Materials:Silver,Levers:Long,Terminal Spacing:4.7mm (0.185) or 3.81mm (0.150)
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1.000 MΩ min.
- Max. current/voltage rating with resistive load: - silver contacts (A or 1) : 4A 30VDC- gold plated brass contacts (CD or 0) : 0,4VA 20VAC or DC- gold plated silver contacts (AD or 2) : 4A 30VDC (300mA 30VDC for gold plating)
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_S 16/08/2024
- Terminals: Right Angle Horizontal
- Electrical Functions: ON OFF ON
- Process sealed Front and rear sealing Process compatible Wave solderable Washable
- Front and rear sealing Process compatible Wave solderable Washable
- Process compatible Wave solderable Washable
- Wave solderable Washable
- Washable
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Force | 10N |
