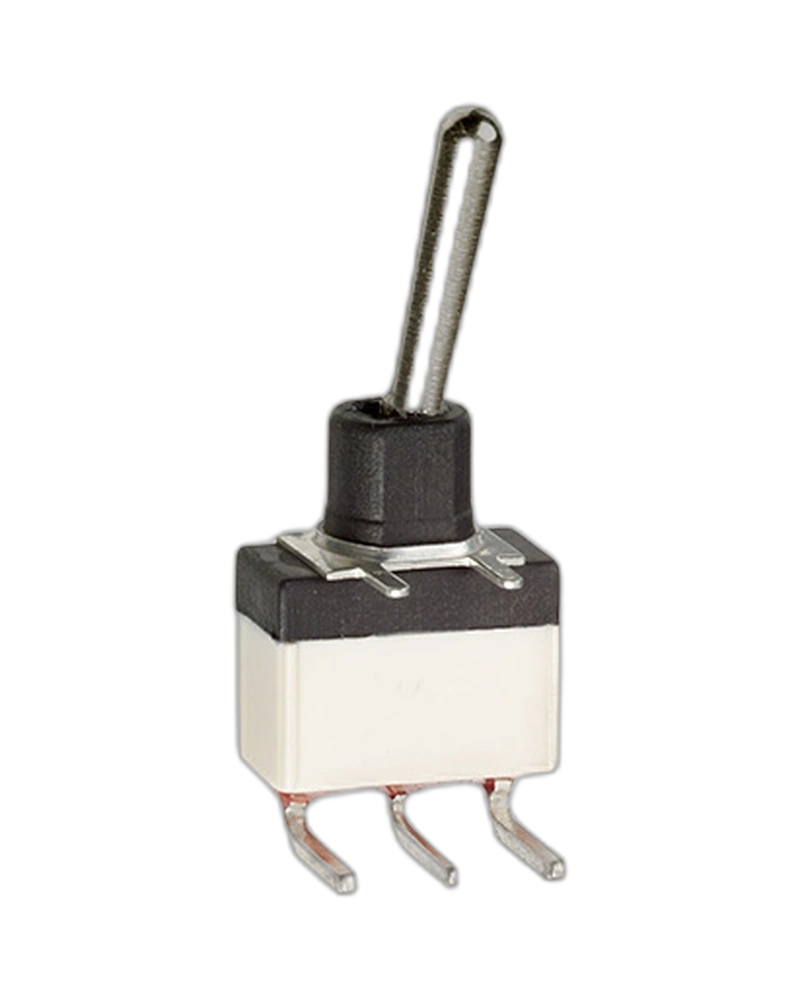

SW246A-13 Sleek SW246A-13 Panel Switch with right-angle mounting, double pole terminals, and ON ON function for seamless circuit switching. Long levers ensure comfortable operation. Select Quantity
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. |
| Operating temperature | -20°C to +85°C |
| Force | 10N |
| Number Of Poles | Double Pole,Contact Materials:Silver,Levers:Long,Terminal Spacing:4.7mm (0.185) or 3.81mm (0.150) |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1.000 MΩ min. |
| Feature | Specification |
|---|---|
| Storage temperature | -40°C to +85°C Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal |
| Max. current/voltage rating with resistive load | - silver contacts (A or 1) : 4A 30VDC- gold plated brass contacts (CD or 0) : 0,4VA 20VAC or DC- gold plated silver contacts (AD or 2) : 4A 30VDC (300mA 30VDC for gold plating) |
| Electrical Functions | ON ON |
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. |
| Operating temperature | -20°C to +85°C |
| Number Of Poles | Double Pole,Contact Materials:Silver,Levers:Long,Terminal Spacing:4.7mm (0.185) or 3.81mm (0.150) |
