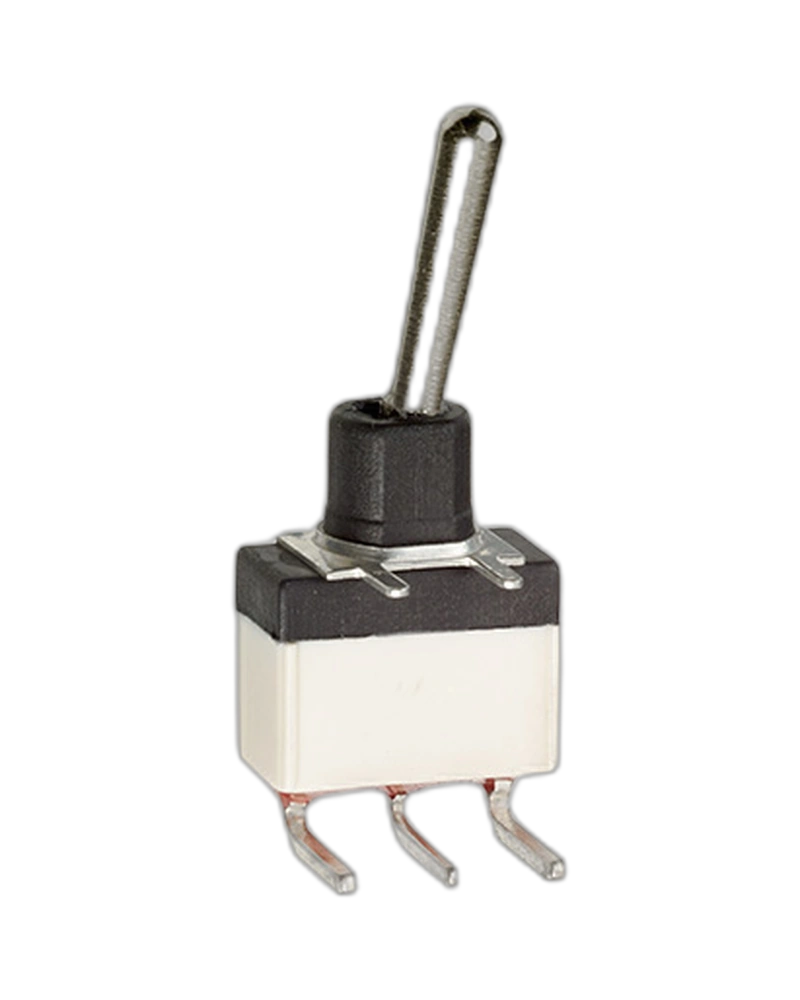

The SW036CD-6 Panel Switch features a versatile toggle design with a single pole, ON-ON functionality, and compatibility with rocker and paddle levers for easy integration. Select Quantity
| Feature | Specification |
|---|---|
| Force | 10N |
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. |
| Operating temperature | -20°C to +85°C |
| Storage temperature | -40°C to +85°C Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal |
| Number Of Poles | Single Pole,Levers:For Rocker and Paddle,Terminal Spacing:5.08mm (0.200in) |
| Max. current/voltage rating with resistive load | - silver contacts (A or 1) : 4A 30VDC- gold plated brass contacts (CD or 0) : 0,4VA 20VAC or DC- gold plated silver contacts (AD or 2) : 4A 30VDC (300mA 30VDC for gold plating) |
| Electrical Functions | ON ON |
