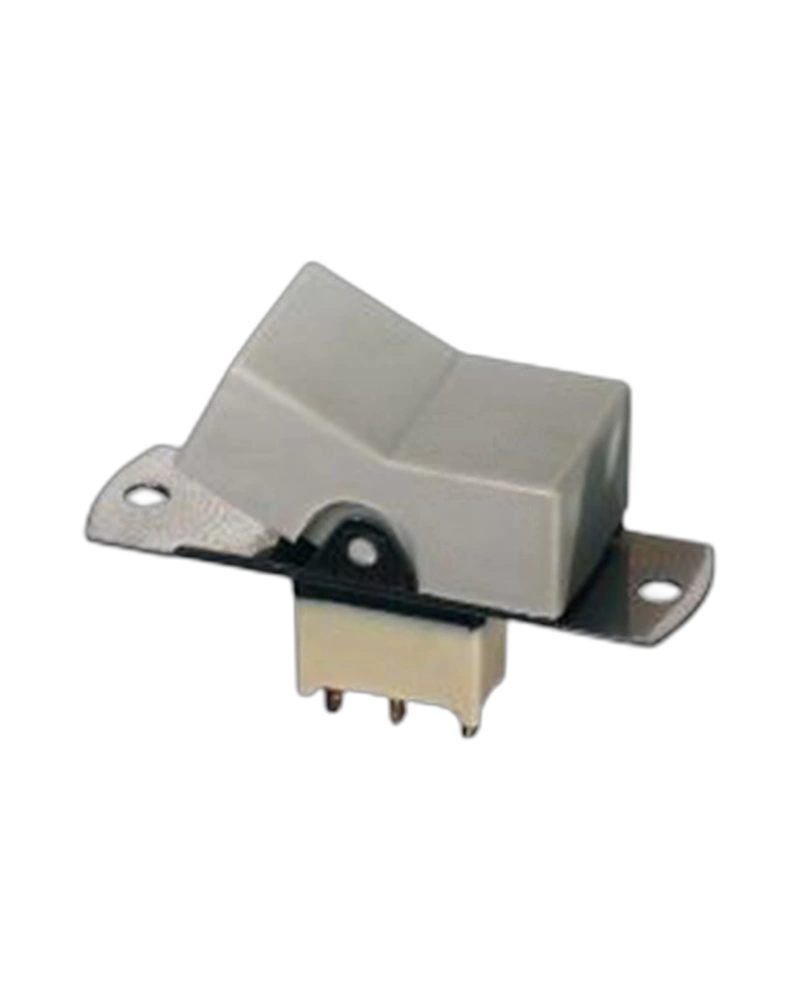

SR46S00000020 Versatile SR46S00000020 Panel Switch with double pole configuration for safety. Features ON ON function and easy installation on standard plates. Ideal for various electrical applications. Select Quantity
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Force | 10N |
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Storage temperature | -40 °C to +85 °C Moisture : The insulating materials employed and the complete seal permit the switchesto withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal |
| Operating temperature | -20 °C to +85 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A or 1) : 4 A 30 VDC- brass, gold plated contacts (CD or 0) : 0.4 VA 20 VAC or DC- silver, gold plated contacts (AD or 2) : 4 A 30 VDC(300 mA 30 VDC for gold plating) |
| Electrical Functions | ON ON |
