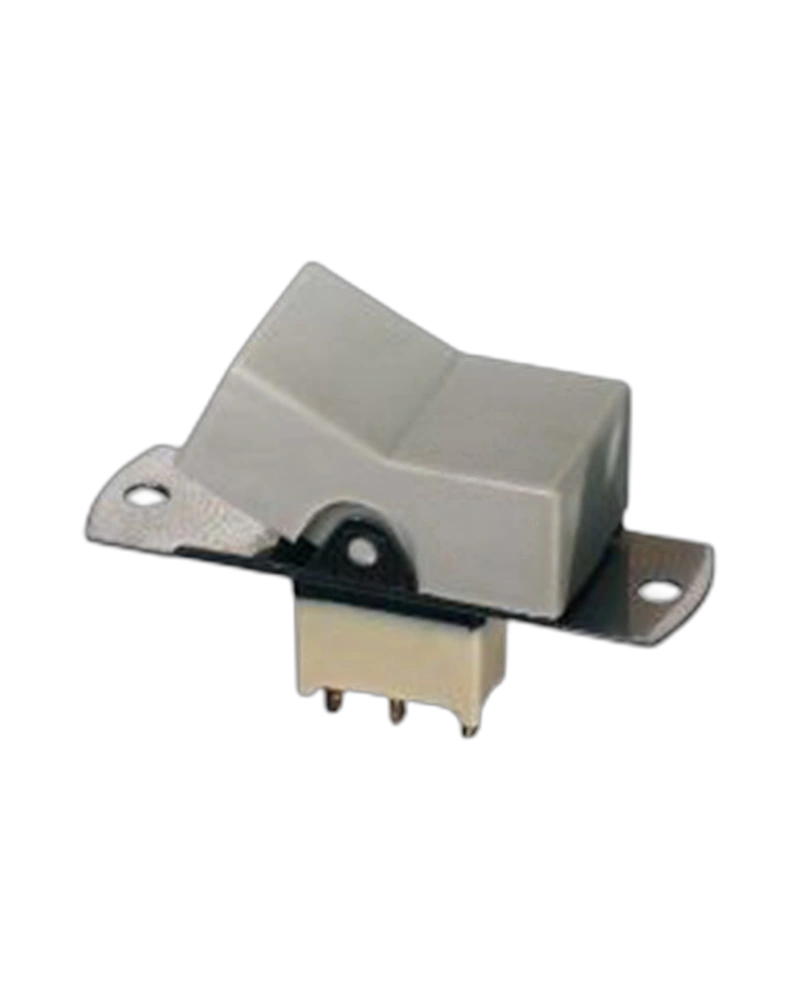

The APEM Panel Switches SR42S02010010 is a double pole rocker switch with silver (gold-plated) contacts designed for industrial applications. This autoswitch features a dielectric strength of 1,000 Vrms 50 Hz min, insulation resistance of 1,000 MΩ min, and operates within -20°C to +85°C. It supports 4 A 30 VDC for resistive loads with robust moisture resistance (56 days IEC 68-2-3).
The APEM Panel Switches SR42S02010010 is a high-reliability double pole rocker switch engineered for demanding industrial environments. With silver (gold-plated) contacts, this autoswitch delivers precise electrical control while maintaining exceptional durability across extreme temperatures (-20°C to +85°C) and moisture conditions. Its robust construction ensures reliable operation in harsh settings, including extended exposure to humidity without compromising performance.
The SR42S02010010 delivers precise electrical control with a dielectric strength of 1,000 Vrms 50 Hz min and insulation resistance of 1,000 MΩ min. It supports 4 A 30 VDC for resistive loads with silver contacts (gold-plated for extended service life), ensuring minimal contact resistance (10 mΩ max) and reliable switching under demanding conditions.
Engineered for extreme conditions, this switch operates across a wide temperature range (-20°C to +85°C) and withstands prolonged moisture exposure (56 days per IEC 68-2-3 standard). The complete seal and insulating materials prevent moisture ingress, making it suitable for industrial environments with high humidity or potential condensation.
The switch features robust construction with silver contacts (gold-plated for corrosion resistance), ensuring long-term performance in harsh conditions. Its double pole configuration and rocker actuator design provide precise control with minimal force (10 N), ideal for applications requiring reliable, low-maintenance switching.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Storage temperature | -40 °C to +85 °C Moisture : The insulating materials employed and the complete seal permit the switchesto withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal |
| Operating temperature | -20 °C to +85 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A or 1) : 4 A 30 VDC- brass, gold plated contacts (CD or 0) : 0.4 VA 20 VAC or DC- silver, gold plated contacts (AD or 2) : 4 A 30 VDC(300 mA 30 VDC for gold plating) |
| Electrical Functions | ON MOM |
The APEMPanel Switches SR42S02010010 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Storage temperature | -40 °C to +85 °C Moisture : The insulating materials employed and the complete seal permit the switchesto withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal |
| Operating temperature | -20 °C to +85 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A or 1) : 4 A 30 VDC- brass, gold plated contacts (CD or 0) : 0.4 VA 20 VAC or DC- silver, gold plated contacts (AD or 2) : 4 A 30 VDC(300 mA 30 VDC for gold plating) |
| Electrical Functions | ON MOM |
