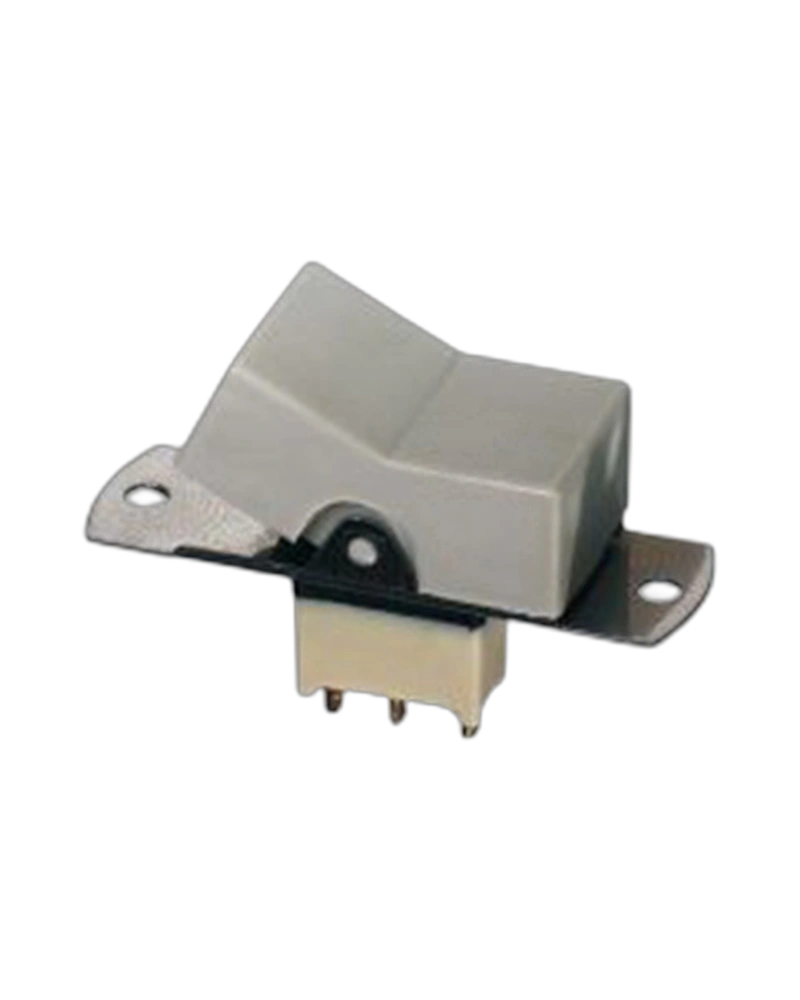

The APEM Panel Switches SR39S02000010 is a single pole rocker switch with silver contacts (gold-plated for specific variants) designed for reliable electrical control in industrial environments. This autoswitch features high dielectric strength (1,000 Vrms 50 Hz min.), low contact resistance (10 mΩ max), and robust insulation (1,000 MΩ min) to ensure safe operation across extreme temperatures (-40 °C to +85 °C) and moisture resistance (56-day test per IEC 68-2-3). Ideal for demanding applications requiring precise switching with minimal.
The APEM Panel Switches SR39S02000010 is a single-pole rocker switch engineered for industrial use, combining high reliability with robust environmental resilience. With silver contacts (gold-plated for specific variants), this autoswitch delivers precise ON/OFF/ON functionality while maintaining exceptional electrical performance. Its ability to withstand extreme temperatures (-40 °C to +85 °C), moisture exposure (56-day test per IEC 68-2-3), and high dielectric strength (1,000 Vrms 50 Hz min.) ensures consistent operation in harsh industrial settings without compromising safety or efficiency.
The SR39S02000010 delivers precise electrical switching with a maximum current rating of 4 A 30 VDC for resistive loads. Its silver contacts (with gold plating for specific variants) ensure low contact resistance (10 mΩ max) and high dielectric strength (1,000 Vrms 50 Hz min.), minimizing power loss and electrical interference during operation.
Engineered to withstand extreme environmental conditions, this switch operates within a temperature range of -20 °C to +85 °C and is moisture-resistant, passing a 56-day moisture test per IEC 68-2-3. The complete seal and insulating materials protect against humidity and contaminants, ensuring long-term reliability in industrial settings.
Utilizing silver contacts with gold plating for specific variants, the SR39S02000010 provides superior corrosion resistance and extended service life. This combination ensures consistent electrical performance even in demanding environments where contact degradation could otherwise occur.
Ideal for industrial control panels where reliable switching is critical, the SR39S02000010 supports applications requiring precise ON/OFF/ON functionality with minimal electrical interference. Its robust design makes it suitable for use in machinery, automation systems, and equipment exposed to harsh conditions.
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Storage temperature | -40 °C to +85 °C Moisture : The insulating materials employed and the complete seal permit the switchesto withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal |
| Operating temperature | -20 °C to +85 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A or 1) : 4 A 30 VDC- brass, gold plated contacts (CD or 0) : 0.4 VA 20 VAC or DC- silver, gold plated contacts (AD or 2) : 4 A 30 VDC(300 mA 30 VDC for gold plating) |
| Electrical Functions | ON OFF ON |
The APEMPanel Switches SR39S02000010 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Storage temperature | -40 °C to +85 °C Moisture : The insulating materials employed and the complete seal permit the switchesto withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal |
| Operating temperature | -20 °C to +85 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A or 1) : 4 A 30 VDC- brass, gold plated contacts (CD or 0) : 0.4 VA 20 VAC or DC- silver, gold plated contacts (AD or 2) : 4 A 30 VDC(300 mA 30 VDC for gold plating) |
| Electrical Functions | ON OFF ON |
