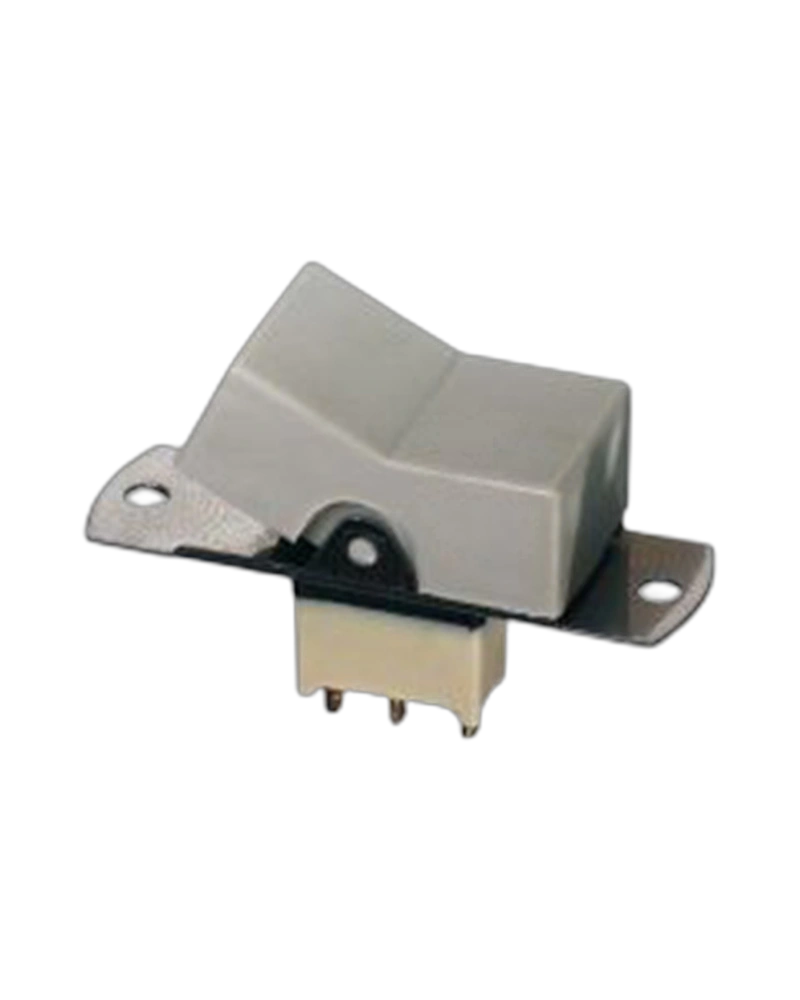

Panel Switches SR34S05000010
The SR34S05000010 Panel Switch is a reliable PCB switch with ON ON ON functions, single pole design, and easy plate mounting for efficient installation in various applications. Select Quantity
Key Features
- Dielectric strength: 1,000 Vrms 50 Hz min.
- Storage temperature: -40 °C to +85 °C Moisture : The insulating materials employed and the complete seal permit the switchesto withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Operating temperature: -20 °C to +85 °C
- Max. current/voltage rating with resistive load: - silver contacts (A or 1) : 4 A 30 VDC- brass, gold plated contacts (CD or 0) : 0.4 VA 20 VAC or DC- silver, gold plated contacts (AD or 2) : 4 A 30 VDC(300 mA 30 VDC for gold plating)
- Number Of Poles: Single Pole,Actuators:Rocker,Contact Materials:Special Contact,Model:Standard
- Electrical Functions: ON ON ON
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Force | 10N |
