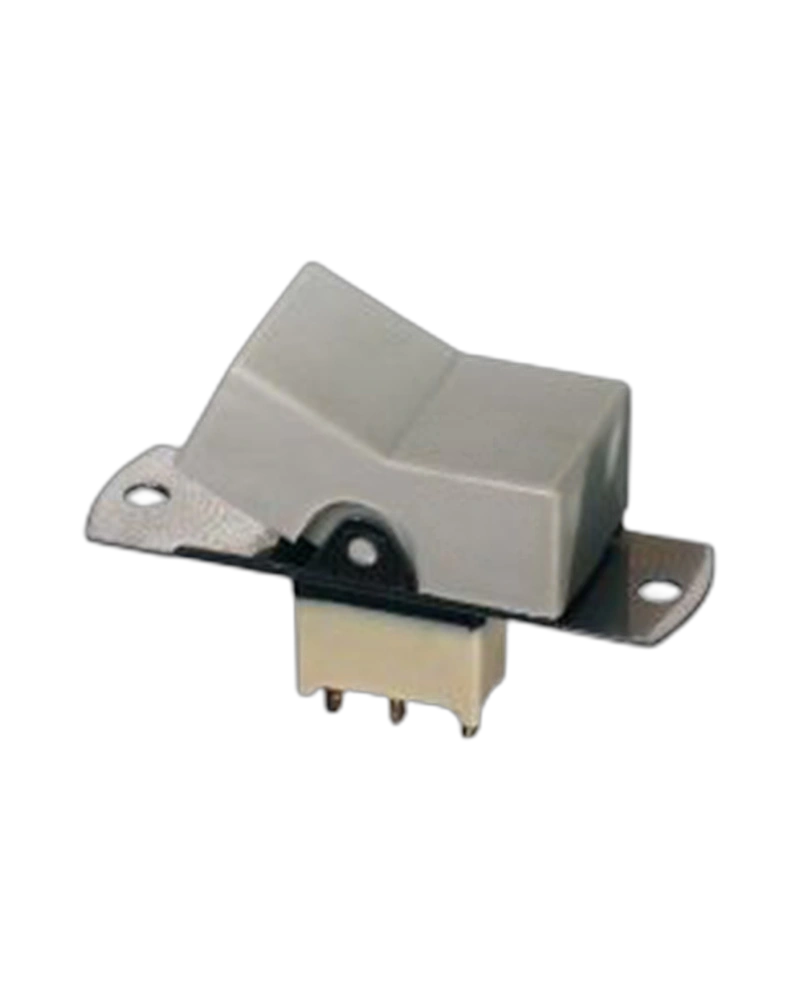

Panel Switches SR32S01000020
The SR32S01000020 Panel Switch features a compact single pole design, ideal for PCB applications. Easy to mount, it ensures reliable performance for industrial and commercial use. Select Quantity
Key Features
- Dielectric strength: 1,000 Vrms 50 Hz min.
- Storage temperature: -40 °C to +85 °C Moisture : The insulating materials employed and the complete seal permit the switchesto withstand a 56 days moisture test (IEC 68-2-3). Moisture : The insulating materials employed and the complete seal
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Operating temperature: -20 °C to +85 °C
- Max. current/voltage rating with resistive load: - silver contacts (A or 1) : 4 A 30 VDC- brass, gold plated contacts (CD or 0) : 0.4 VA 20 VAC or DC- silver, gold plated contacts (AD or 2) : 4 A 30 VDC(300 mA 30 VDC for gold plating)
- Number Of Poles: Single Pole,Actuators:Paddle,Contact Materials:Silver,Model:Standard
- Electrical Functions: ON MOM
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Force | 10N |
