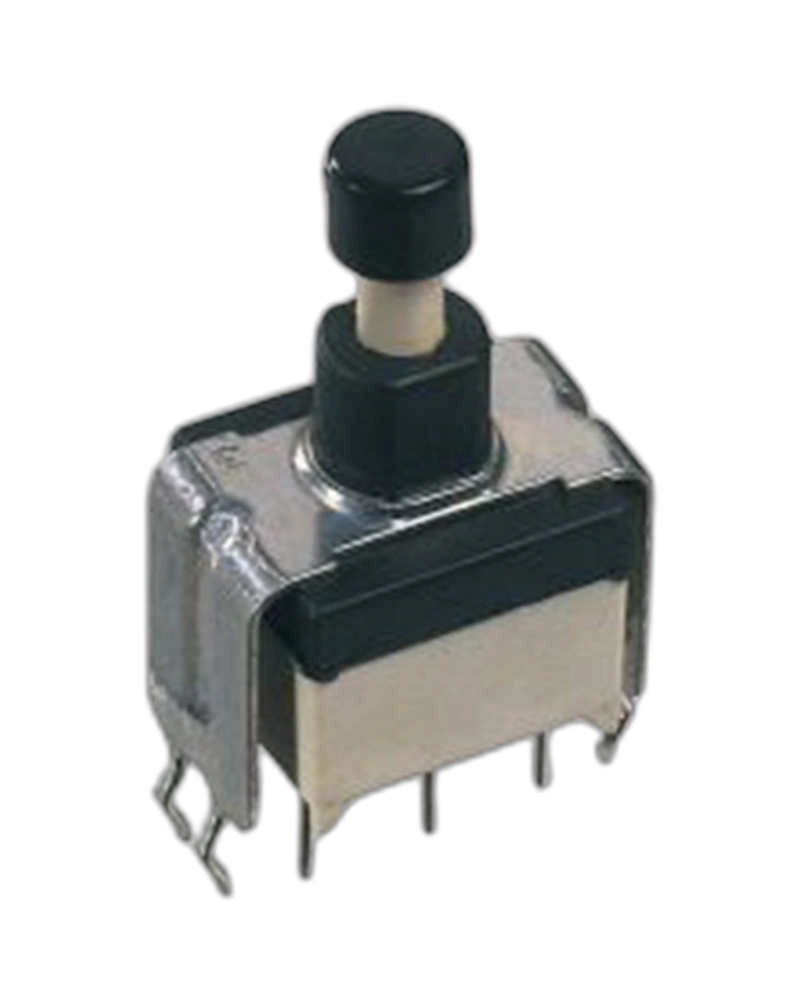

SP35P000000 Versatile SP35P000000 Panel Switch with single pole configuration for ON MOM control. Easy straight PC mounting for quick installation. Ideal for various electrical applications. Select Quantity
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Storage temperature | -40 °C to +85 °C Moisture : insulating materials employed and complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Moisture : insulating materials employed and complete seal permit the swi |
| Torque | 0.25 Nm (.18 Ft.lb) applied to nut (threaded bushing) |
| Total travel | 0.50 mm (.019) Soldering - thermal shock (plain bushing models only) : switches are especially designed for flow soldering at 260 °C during 5 seconds owing to high temperature polymer parts. Iron soldering (threaded bush |
| Operating temperature | -20 °C to +85 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA 30 VDC- silver or gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON MOM |
| Mounting | Straight PC |
