Explore performance details, construction highlights, applications, and technical information in one clear overview.

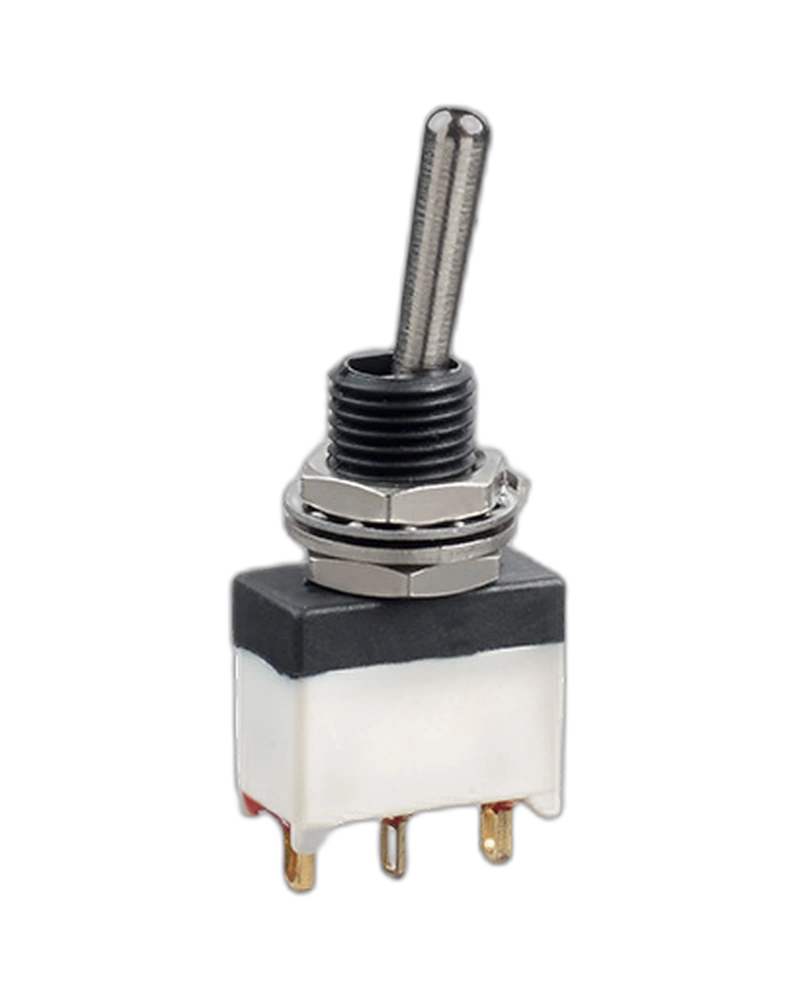

the SF37S000800 Panel Switch features a sleek design and robust construction, ideal for various applications. Select Quantity
| Feature | Specification |
|---|---|
| Force | 10 N |
| Max. torque | 0.25 Nm (.184 Ft.lb) Max. |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Solderability : The switches are tested at 23 |
| torque | 0.25 Nm (.184 Ft.lb) Max. |
| panel thickness | 2.5 mm (.098) with 2 nuts, 4 mm (.157) with 1 nut Iron soldering : 300 °C (572 °F) 5 sec. max. Max. |
| Operating temperature | -20 °C to +85 °C (-4 °F to +185 °F) |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 4 A 30 VDC- gold plated brass contacts (CD) : 0.4 VA 20 VAC or DC- gold plated silver contacts (AD) : 4 A 30 VDC (300 mA 30 VDC for gold plating) |
| Electrical Functions | MOM OFF MOM |
| Feature | Specification |
|---|---|
| Max. torque | 0.25 Nm (.184 Ft.lb) Max. |
