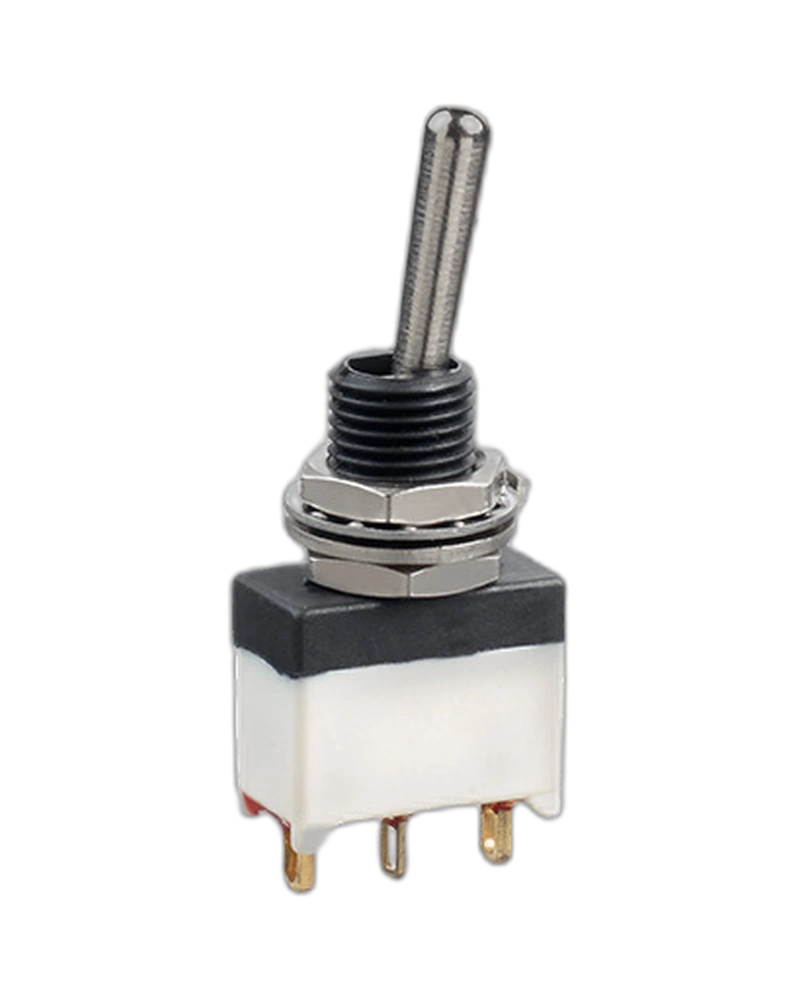

Panel Switches SF36P010000
SF36P010000 Versatile SF36P010000 Panel Switch with single pole configuration, ON ON function, long levers for easy control, and straight PCB terminals for simple installation. Select Quantity
Key Features
- Dielectric strength: 1,000 Vrms 50 Hz min.
- Storage temperature: -40 °C to +85 °C (-40 °F to +185 °F) Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Solderability : The switches are tested at 23
- torque: 0.25 Nm (.184 Ft.lb) Max.
- panel thickness: 2.5 mm (.098) with 2 nuts, 4 mm (.157) with 1 nut Iron soldering : 300 °C (572 °F) 5 sec. max. Max.
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Operating temperature: -20 °C to +85 °C (-4 °F to +185 °F)
- Max. current/voltage rating with resistive load: - silver contacts (A) : 4 A 30 VDC- gold plated brass contacts (CD) : 0.4 VA 20 VAC or DC- gold plated silver contacts (AD) : 4 A 30 VDC (300 mA 30 VDC for gold plating)
- Number Of Poles: Single Pole,Contact Materials:Silver,Levers:Long,Model:Standard
- Terminals: Straight PC
- Electrical Functions: ON ON
- Process sealed Front and rear sealing Optional ESD protection
- Front and rear sealing Optional ESD protection
- Optional ESD protection
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Force | 10 N |
| Max. torque | 0.25 Nm (.184 Ft.lb) Max. |
