Panel Switches SF32S000000

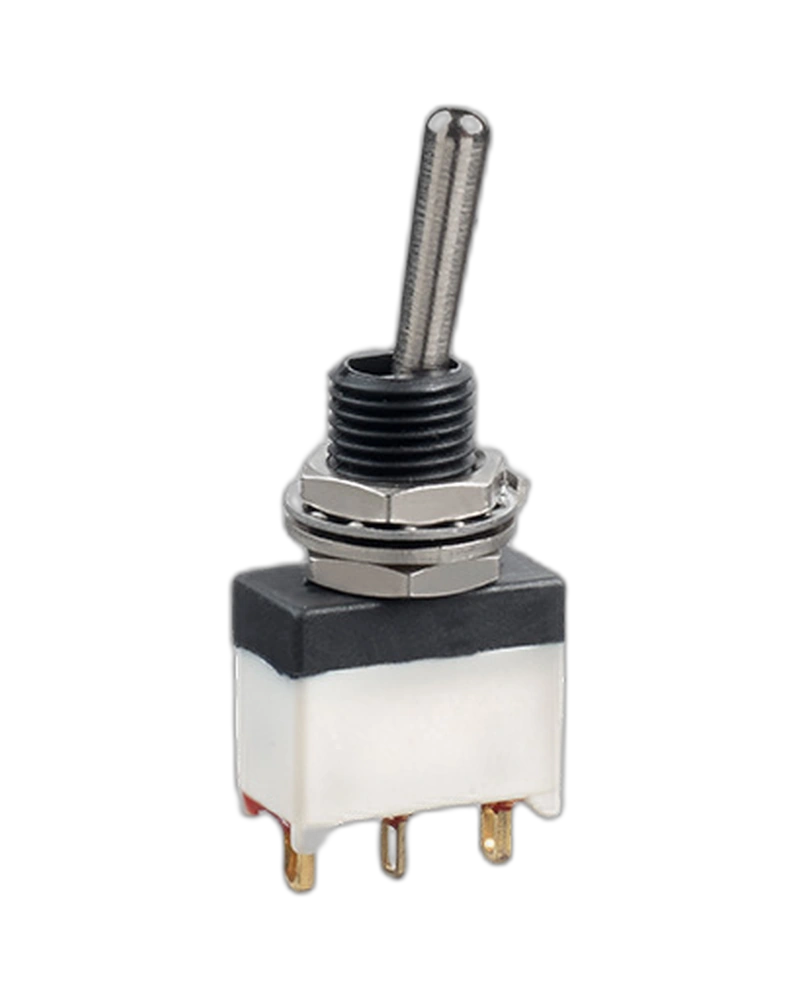

The SF32S000000 Panel Switch features a single pole configuration with ON MOM function, solder lug terminals for secure connections, and long levers for easy operation. Select Quantity
Key Features
- Dielectric strength: 1,000 Vrms 50 Hz min.
- Storage temperature: -40 °C to +85 °C (-40 °F to +185 °F) Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Solderability : The switches are tested at 23
- torque: 0.25 Nm (.184 Ft.lb) Max.
- panel thickness: 2.5 mm (.098) with 2 nuts, 4 mm (.157) with 1 nut Process sealed Front and rear sealing Optional ESD protection Front and rear sealing Optional ESD protection Optional ESD protection
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Operating temperature: -20 °C to +85 °C (-4 °F to +185 °F)
- Max. current/voltage rating with resistive load: - silver contacts (A) : 4 A 30 VDC- gold plated brass contacts (CD) : 0.4 VA 20 VAC or DC- gold plated silver contacts (AD) : 4 A 30 VDC (300 mA 30 VDC for gold plating)
- Number Of Poles: Single Pole,Contact Materials:Brass (Gold-Plated),Levers:Long,Model:Standard
- Terminals: Solder Lug
- Electrical Functions: ON MOM
- Process sealed Front and rear sealing Optional ESD protection
- Front and rear sealing Optional ESD protection
- Optional ESD protection
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Force | 10 N |
| Max. torque | 0.25 Nm (.184 Ft.lb) Max. |
