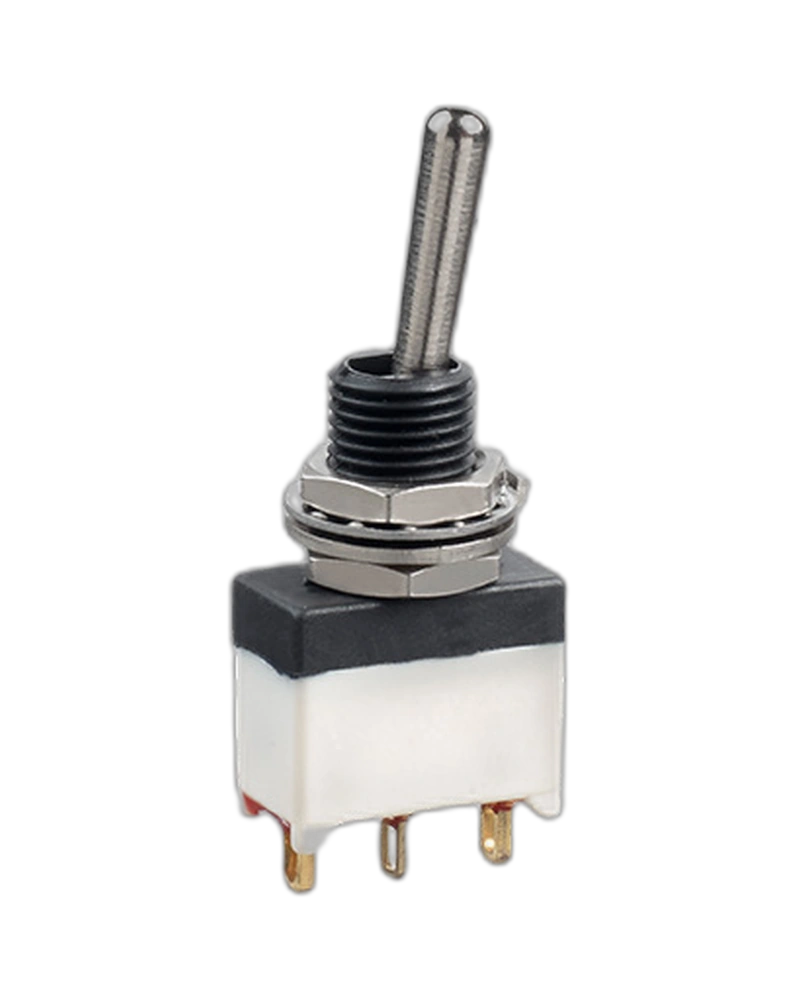

The APEM Panel Switches SF32P010000 is a Switches and Pushbutton with documented product-specific characteristics including Dielectric strength: 1,000 Vrms 50 Hz min.; Storage temperature: -40 °C to +85 °C (-40 °F to +185 °F) Moisture: The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Solderability: The switches are tested at 23; torque: 0.25 Nm (.184 Ft.lb) Max..
| Feature | Specification |
|---|---|
| Force | 10 N |
| Max. torque | 0.25 Nm (.184 Ft.lb) Max. |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Storage temperature | -40 °C to +85 °C (-40 °F to +185 °F) Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3). Solderability : The switches are tested at 23 |
| torque | 0.25 Nm (.184 Ft.lb) Max. |
| panel thickness | 2.5 mm (.098) with 2 nuts, 4 mm (.157) with 1 nut Process sealed Front and rear sealing Optional ESD protection Front and rear sealing Optional ESD protection Optional ESD protection Discover sf32p010000 - toggles at APE |
| Operating temperature | -20 °C to +85 °C (-4 °F to +185 °F) |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 4 A 30 VDC- gold plated brass contacts (CD) : 0.4 VA 20 VAC or DC- gold plated silver contacts (AD) : 4 A 30 VDC (300 mA 30 VDC for gold plating) |
| Electrical Functions | ON MOM Contact Materials: Silver Levers: Long Model: Standard |
| Feature | Specification |
|---|---|
| Max. torque | 0.25 Nm (.184 Ft.lb) Max. |
