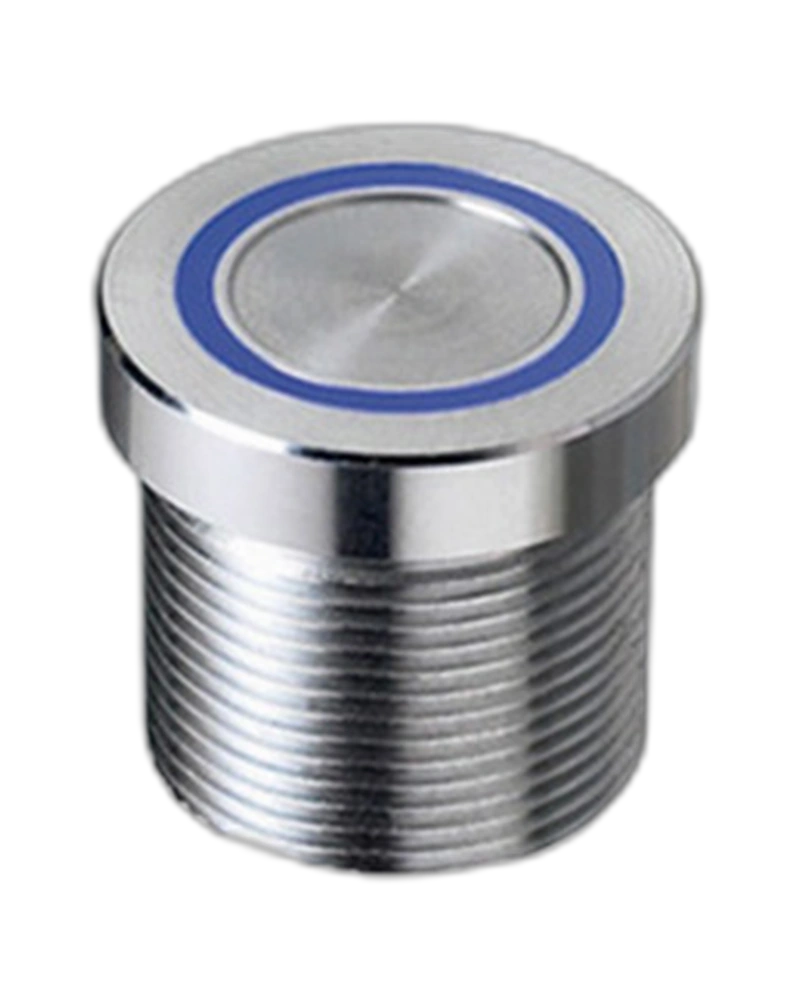

Panel Switches PBAR9AFB000MX
PBAR9AFB000MX Reliable PBAR9AFB000MX Panel Switch with sturdy construction, easy installation terminals, and efficient control for lighting and appliances. Long-lasting performance guaranteed. Select Quantity
Key Features
- Ratings: 200 mA Max at 6 VAC/DC, 50 mA Max at 24 VAC/DC
- Sealing: IP66 per IEC 60529 (switches mounted on panel)
- Operating force: 2 to 6 N
- Torque: 2.5 Nm max.
- Colors Materials: 316L Stainless Steel,Model:Bushing 19mm(0.748in) Flat
- Operating temperature: -40 °C to +55 °C
- Approved according to the ATEX 2014/34/EU directive Sealed to IP66 (mounted on panel) Easy to clean metal surface Long life Illuminated models
- Sealed to IP66 (mounted on panel) Easy to clean metal surface Long life Illuminated models
- Datasheet 3D CAD Files Name Last Updated File Type File Size pusbutton_switches_serie_PBA_ATEX 12/02/2026
- Terminals: Flying Leads,Type:One-Piece Bushing, Non-Illuminated
- Electrical Functions: No Pulse
- Easy to clean metal surface Long life Illuminated models
- Long life Illuminated models
- Illuminated models
Technical Specifications
General Specifications
| Feature | Specification |
|---|
| Life expectancy | 50 million cycles EMC compatibility according ... |
Specifications
| Feature | Specification |
|---|
| LED | 5 VDC, 10 mA to 20 mA depending on model |
| Rated voltage | 5 V |
| Rated current | 200 mA |
