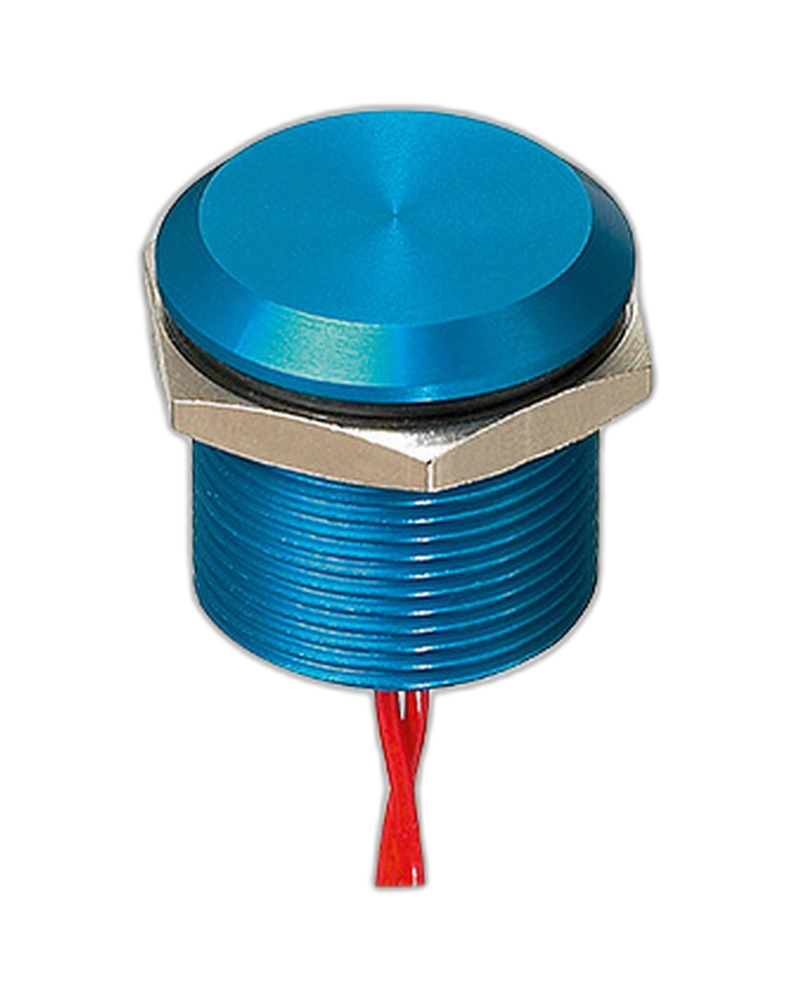

The APEM Panel Switches PBAR9AF1000 is a robust autoswitch designed for industrial applications. Featuring IP68 and IP69K sealing, it withstands harsh environments with 50 million cycle life, ring illumination, and a 3mm height. Ideal for demanding electrical systems requiring reliable operation in extreme conditions.
The APEM Panel Switches PBAR9AF1000 is a high-performance autoswitch engineered for industrial environments where durability and reliability are critical. With a 50 million cycle life expectancy, IP68 and IP69K sealing for submersion and high-pressure cleaning, and ring illumination for enhanced visibility, this switch delivers exceptional performance in challenging conditions. Its compact 3mm height and robust construction ensure seamless integration into demanding electrical systems without compromising on functionality or longevity.
The PBAR9AF1000 delivers exceptional environmental protection with IP68 and IP69K ratings. This ensures the switch can withstand submersion in water and high-pressure cleaning without damage, making it suitable for use in harsh industrial settings where exposure to liquids or cleaning agents is common. The switch also meets vibration resistance standards (10-500 Hz / 10 g per IEC 60068-2-6), ensuring reliable operation in dynamic environments.
With a standard voltage rating of 24 VAC/DC, the PBAR9AF1000 supports two electrical functions: Function A (200 mA) and Function B (100 mA). The switch operates with a low resistance of 10Ω max when activated, ensuring efficient current flow. Power consumption is minimal—10 mA for non-illuminated operation and 30 mA when illuminated—making it energy-efficient for continuous use in industrial applications.
Engineered for extreme longevity, the PBAR9AF1000 offers a life expectancy of 50 million cycles, significantly outperforming standard switches. Its anodized blue finish provides an easy-to-clean surface, reducing maintenance needs while resisting corrosion and wear. The switch's robust construction ensures it remains functional even under demanding operational conditions.
The PBAR9AF1000 features a compact 3mm height and multiple bushing diameter options (16 mm, 19 mm, 22 mm, or 30 mm), allowing flexibility in installation across various panel designs. Its flat operator design ensures precise and consistent operation with minimal force (2 to 6N), ideal for applications requiring high reliability without excessive user effort.
| Feature | Specification |
|---|---|
| Sealing | IP68 per IEC 529, IP69K per DIN 40050-9 (switches mounted on panel) Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Life expectancy | 50 million cycles Bushing diameter 16 (.630), 19 (.748), 22 (.866) or 30 mm (1.181) Sealed to IP68 and IP69K (switches mounted on panel) Easy to clean metal surface Very long life expectancy Ring illumination Sealed to I |
| Bushing Operator | Flat Operator Height 3mm(0.118in) |
| Operating force | 2 to 6N |
| voltage rating | - Function A : standard 200 mA 24 VAC/DC - option 1 A 24 VAC/DC- Function B : standard 100 mA 24 VAC/DC Switch resistance ON : 10Ω max |
| Colors Materials | Blue Anodized |
| Type Of Illumination Voltage | Non-Illuminated |
| Electrical Functions | No Pulse |
| Feature | Specification |
|---|---|
| Power consumption for function 1 | non-illum.10 mA - illuminated 30 mA |
| Operating temperature | -40 °C |
| Height | 3mm |
The APEMPanel Switches PBAR9AF1000 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP68 per IEC 529, IP69K per DIN 40050-9 (switches mounted on panel) Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Life expectancy | 50 million cycles Bushing diameter 16 (.630), 19 (.748), 22 (.866) or 30 mm (1.181) Sealed to IP68 and IP69K (switches mounted on panel) Easy to clean metal surface Very long life expectancy Ring illumination Sealed to I |
| Bushing Operator | Flat Operator Height 3mm(0.118in) |
| Operating force | 2 to 6N |
| voltage rating | - Function A : standard 200 mA 24 VAC/DC - option 1 A 24 VAC/DC- Function B : standard 100 mA 24 VAC/DC Switch resistance ON : 10Ω max |
| Colors Materials | Blue Anodized |
| Type Of Illumination Voltage | Non-Illuminated |
| Electrical Functions | No Pulse |
| Feature | Specification |
|---|---|
| Power consumption for function 1 | non-illum.10 mA - illuminated 30 mA |
| Operating temperature | -40 °C |
| Height | 3mm |
