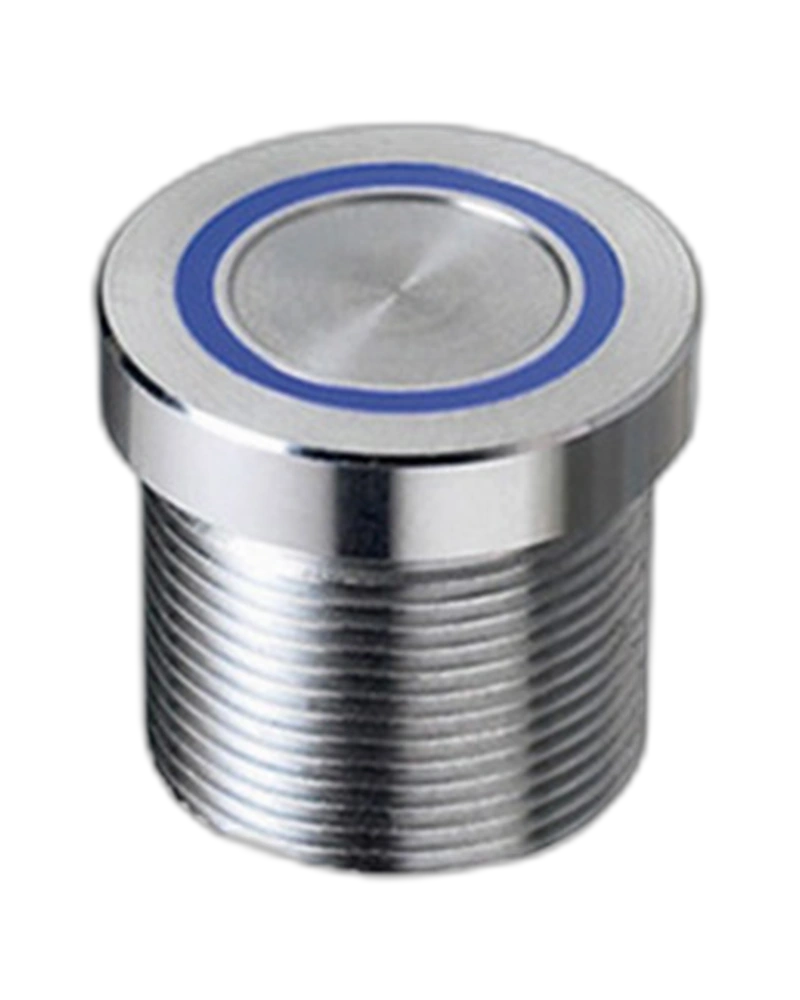

The APEM Panel Switches PBAR2AFB000L0SX is a Switches and Pushbutton with documented product-specific characteristics including Sealing: IP66 per IEC 60529 (switches mounted on panel); Ratings: 200 mA Max at 6 VAC/DC, 50 mA Max at 24 VAC/DC; Terminals: Flying Leads,Type:Illuminated Dot 22 mm.
PBAR2AFB000L0SX Select Quantity
| Feature | Specification |
|---|---|
| LED | 5 VDC, 10 mA to 20 mA depending on model |
| Rated voltage | 5 V |
| Rated current | 200 mA |
| Feature | Specification |
|---|---|
| Sealing | IP66 per IEC 60529 (switches mounted on panel) |
| Ratings | 200 mA Max at 6 VAC/DC, 50 mA Max at 24 VAC/DC |
| Terminals | Flying Leads,Type:Illuminated Dot 22 mm |
| Operating force | 2 to 6 N |
| Torque | 2.5 Nm max. |
| LED Color | Red,Model:Bushing 22mm(0.866in) Flat |
| Colors Materials | 316L Stainless Steel,LED Colour:Red,Model:Bushing 22mm(0.866in) Flat |
| Operating temperature | -40 °C to +55 °C |
| Electrical Functions | No Pulse |
| Feature | Specification |
|---|---|
| LED | 5 VDC, 10 mA to 20 mA depending on model |
| Rated voltage | 5 V |
| Rated current | 200 mA |
