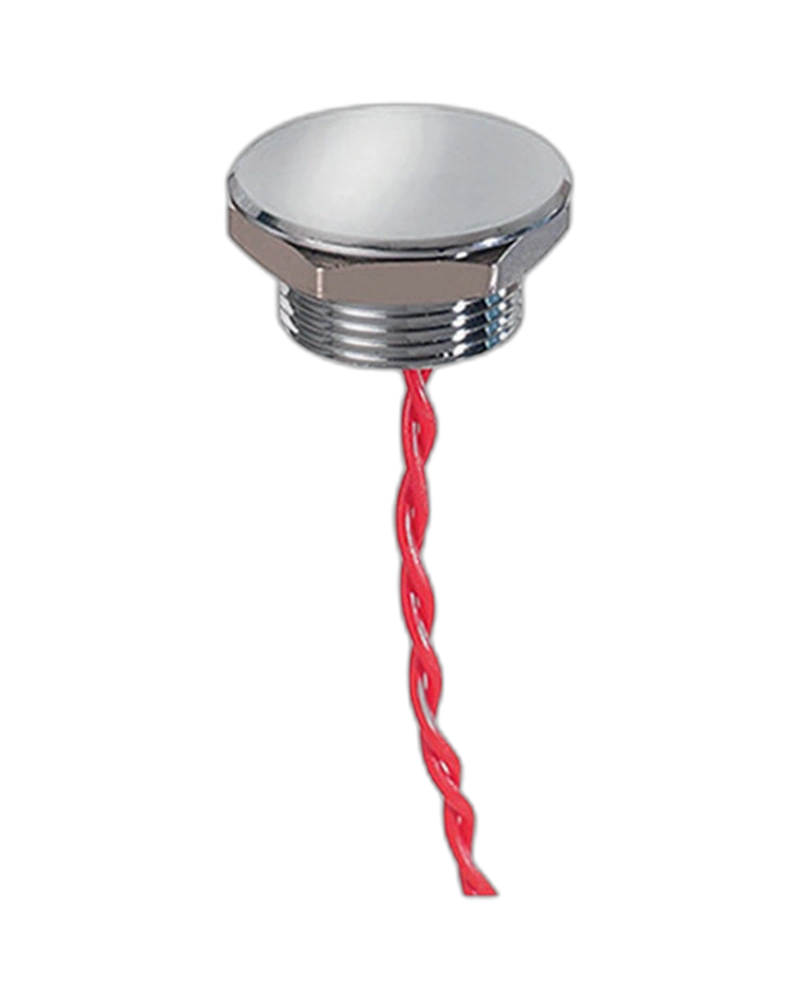

The PBAR1BFB000N0G Panel Switch features a sleek design, intuitive interface, and NC pulse functionality for precise control of lighting and appliances. Select Quantity
| Feature | Specification |
|---|---|
| Power consumption for function 1 | non-illum.10 mA - illuminated 30 mA |
| Force | 6 N |
| Height | 45 mm |
| Operating temperature | -40 °C |
| Feature | Specification |
|---|---|
| Bushing Operator | Flat Operator Height: 45 mm (1.77in) |
| Sealing | IP68 per IEC 529, IP69K per DIN 40050-9 (switches mounted on panel) Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 |
| Colors Materials | Stainless Steel 316L |
| Type Of Illumination Voltage | Standard Ring 12VDC |
| Operating force | 2 to 6N |
| voltage rating | - Function A : standard 200 mA 24 VAC/DC - option 1 A 24 VAC/DC- Function B : standard 100 mA 24 VAC/DC Switch resistance ON : 10Ω max |
| Electrical Functions | NC Pulse |
| Mounting | Flying Leads |
| Feature | Specification |
|---|---|
| Power consumption for function 1 | non-illum.10 mA - illuminated 30 mA |
| Height | 45 mm |
| Operating temperature | -40 °C |
